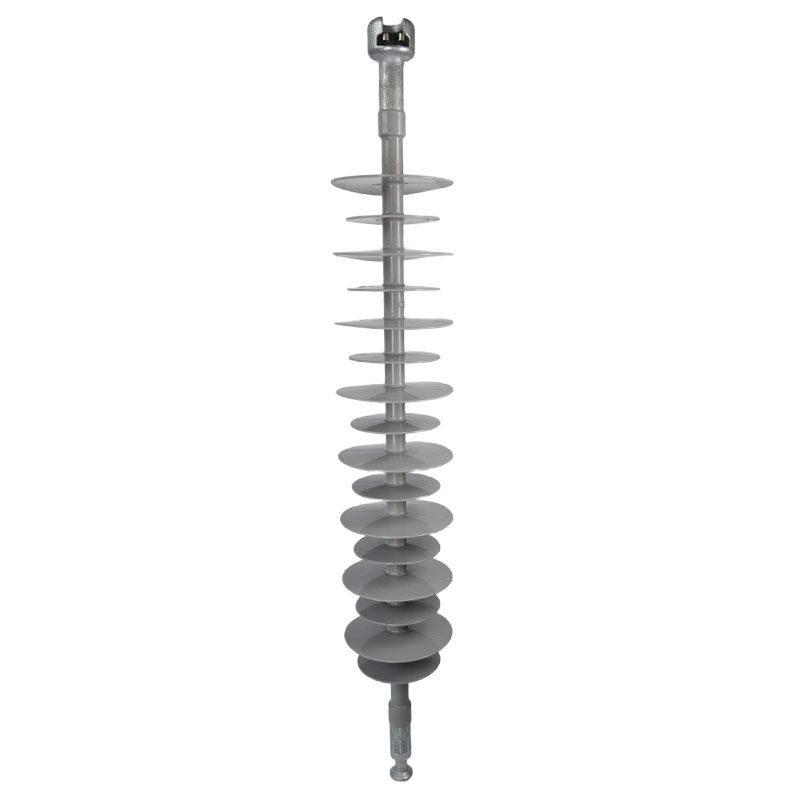

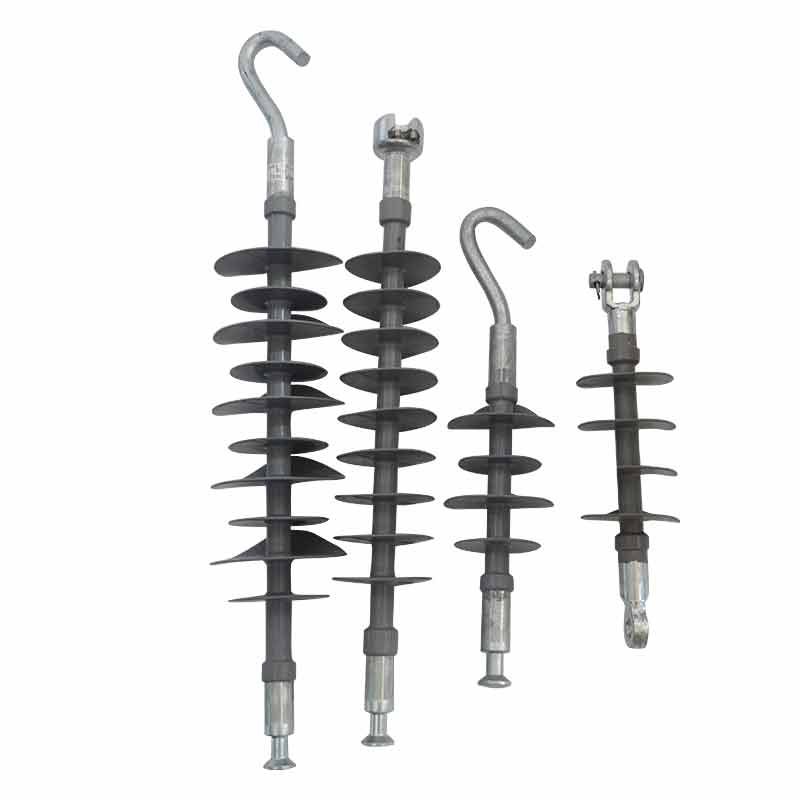

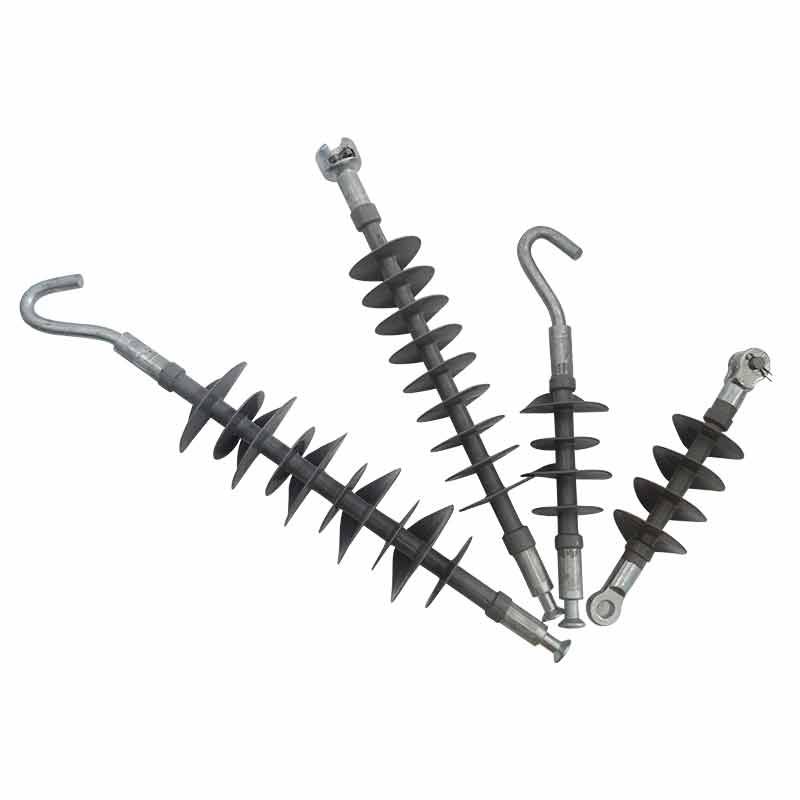

The rod-type suspension composite insulator is made of a glass fiber-reinforced epoxy resin core rod and silicone rubber composite material, combining lightweight high strength with excellent electrical performance.
High tensile strength of the core rod (up to 100 kN or more), resistance to mechanical impact and fatigue, and adaptability to heavy-load power transmission requirements;
UV resistance and corrosion resistance of the material, eliminating the need for frequent maintenance, and self-cleaning of surface contaminants by rainwater.
Colors: Red, brown, gray, or as per customer's request
The model can be customized according to customer needs.
Product Detail
ZheXi Electric Power's Polymer Composite Rod-Type Suspension Insulator delivers unmatched resilience for critical high-voltage infrastructure.
Its core features include: strong hydrophobicity on the silicone rubber surface, which can effectively block leakage current in polluted environments and exhibit outstanding anti-pollution flashover capability;
It is primarily used in high-voltage and ultra-high-voltage transmission lines, coastal areas with frequent salt spray, industrial pollution zones, and other highly polluted environments. Additionally, it is employed in railway electrification, urban power grid renovation, and other scenarios where stringent requirements for weight and seismic resistance are imposed. It serves as a crucial component for enhancing the safety and economy of the power grid
At the heart of our Polymer Composite Rod-Type Suspension Insulator lies a dual-defense system:
Glass Fiber-Reinforced Epoxy Resin Core Rod: Withstands tensile loads ≥100 kN
Silicone Rubber Composite Housing: Provides hydrophobicity and environmental protection
| Feature | Rod-Type Suspension | Pin-Type Polymer Composite Insulator | Pillar-Type Polymer Composite Insulator |
| Material | Polymer composite (FRP core + silicone) | Porcelain/glass | Porcelain/polymer |
| Weight | Light | Heavy | Heavy |
| Tensile Strength | 100–210 kN | Low; brittle | Compression-focused |
| Pollution Resistance | Self-cleaning, hydrophobic | Requires frequent washing | Moderate |
| Maintenance | Zero maintenance | High | Moderate |
| Installation Cost | Low; lightweight | High; crane needed | High |
| Lifespan | 30–50 years | 15–25 years | 20–30 years |
| Best For | HV transmission, polluted zones, railways | Distribution lines (≤33 kV) | Substations, transformers |
Specially developed for challenging environments:
Hydrophobic Silicone Surface: Repels moisture and prevents flashovers in coastal/industrial zones
Self-Cleaning Function: Rainwater automatically removes contaminants
Our rod type suspension composite insulator exceeds industry benchmarks:
Core rod tensile strength >100 kN withstands extreme impact/fatigue
Lightweight design slashes installation costs by 30% vs. traditional units
Earthquake-resistant profile enhances railway/sensitive infrastructure safety
This Polymer Composite Rod-Type Suspension Insulator excels in:
Coastal salt spray corridors & industrial pollution belts
UHV transmission (500kV+ FXBW4 series)
Railway electrification & seismic-active regions
Desert installations and ice-prone zones
Free project samples with freight coverage
72-hour technical response guarantee
Lower carbon footprint: 40% reduction vs. porcelain alternatives
Recyclable components support circular economy

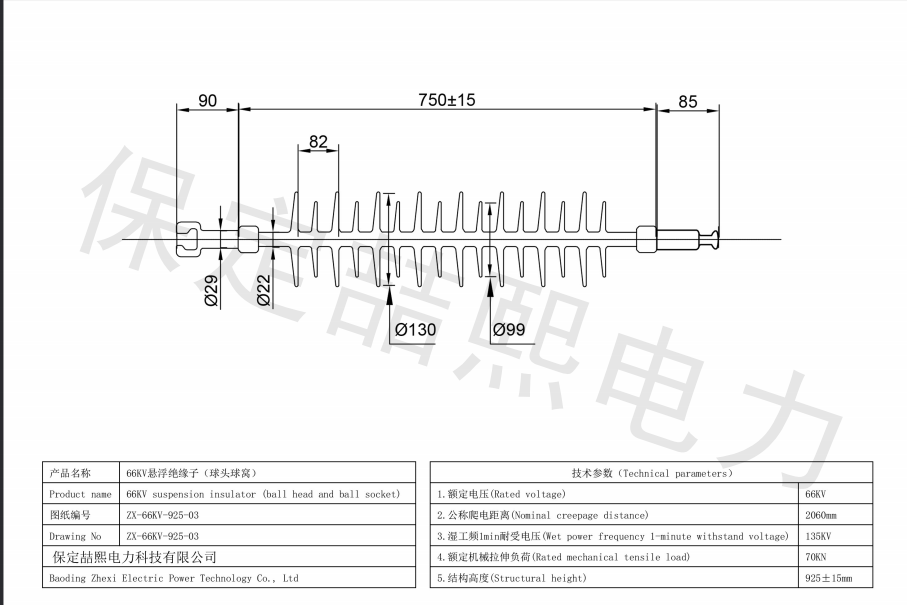

Product Parameters
| Model | Rated Voltage (kV) | Rated Mechanical Bending Load (kN) | Structure Height (mm) | Minimum Arc Distance (mm) | Minimum Creepage Distance (mm) | Lightning Impulse Withstand Voltage, peak (kV) | 1Power Frequency 1 min Wet Withstand Voltage (kV) | Coupling Size |
| FXB-11/70 | 11 | 70 | 330 | 160 | 300 | 95 | 45 | 16 |
| FXB-11/80 | 11 | 80 | 370 | 200 | 450 | 95 | 45 | 16 |
| FXB-24/70 | 24 | 70 | 410 | 240 | 750 | 125 | 65 | 16 |
| FXB-24/100 | 24 | 100 | 450 | 240 | 750 | 125 | 65 | 16 |
| FXB-24/120 | 24 | 120 | 450 | 240 | 750 | 125 | 65 | 16 |
| FXB-33/70 | 33 | 70 | 530 | 360 | 900 | 200 | 95 | 16 |
| FXB-33/80 | 33 | 80 | 590 | 425 | 1080 | 220 | 95 | 16 |
| FXBW-33/70 | 33 | 70 | 655 | 480 | 1260 | 220 | 105 | 16 |
| FXBW-33/100 | 33 | 100 | 695 | 480 | 1260 | 220 | 105 | 16 |
| FXBW4-66/70 | 66 | 70 | 870/940 | 710 | 2248 | 410 | 185 | 16 |
| FXBW4-66/100 | 66 | 100 | 870/940 | 710 | 2248 | 410 | 185 | 16 |
| FXBW4-110/100 | 110 | 100 | 1240/1440 | 1000/1200 | 3150/3860 | 550 | 230 | 16 |
| FXBW4-110/160 | 110 | 160 | 1340 | 1000 | 3380 | 550 | 230 | R20 |
| FXBW4-145/120 | 145 | 120 | 1480 | 1240 | 4123 | 725 | 355 | 16 |
| FXBW4-220/100 | 220 | 100 | 2240/2350/2470 | 2020/2080/2210 | 6450/6760/7150 | 1000 | 395 | 16 |
| FXBW4-330/160 | 330 | 160 | 2290 | 2600 | 9075 | 1425 | 570 | R20 |
| FXBW4-220/210(160) | 220 | 210/160 | 2350 | 2000 | 6800 | 1000 | 230 | R20 |
| FXBW4-330/210(160) | 330 | 210/160 | 2930 | 2650 | 8790 | 1425 | 570 | R20 |
| FXBW4-500/210(160) | 500 | 210/160 | 4450 | 4075 | 14860 | 2050 | 740 | R2 |
UV-resistant materials ensure >30-year service life
Flame-retardant silicone meets IEC 61109 safety standards
Zero-maintenance operation reduces lifetime costs by 60%
Colors: Industry-standard red, brown, gray + custom options
Power line insulators wholesale configurations for utilities/contractors
OEM/ODM services for specialized voltage requirements
Raw material spectrometry analysis
Real-time process monitoring (ISO 9001 certified)
Final load-test verification (100% batch testing)

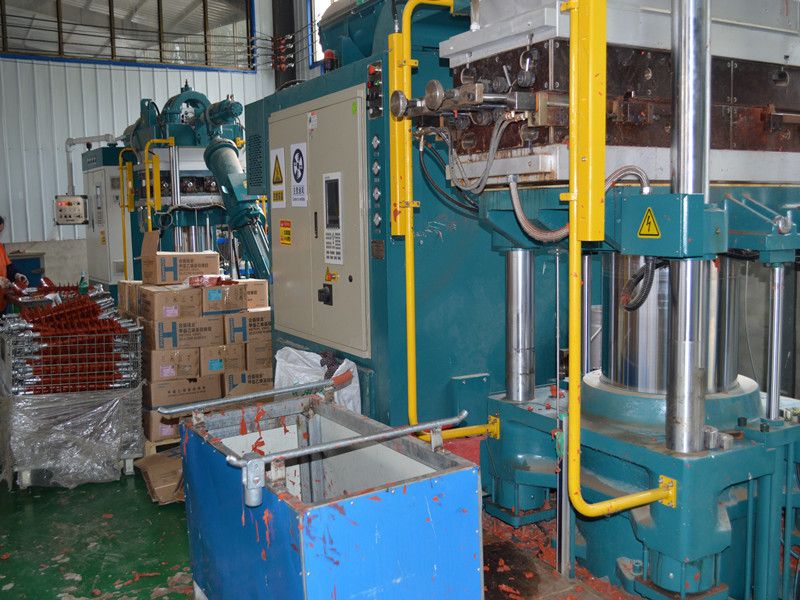

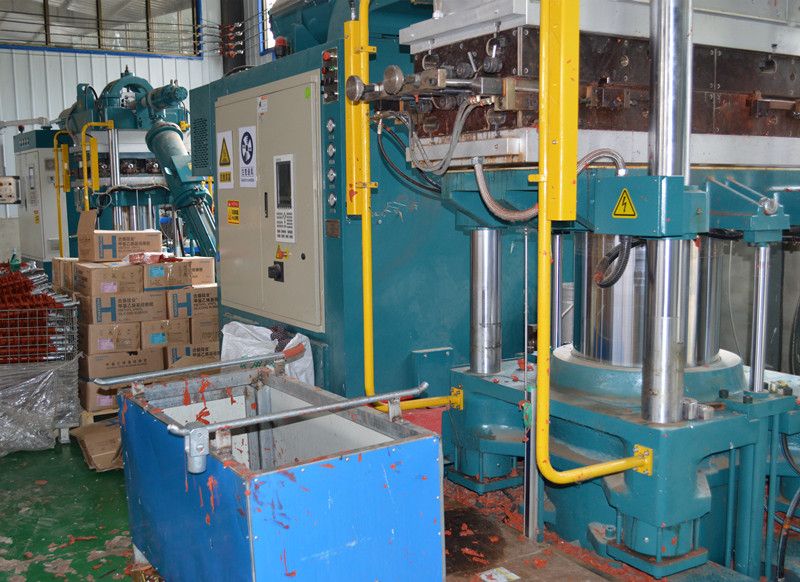

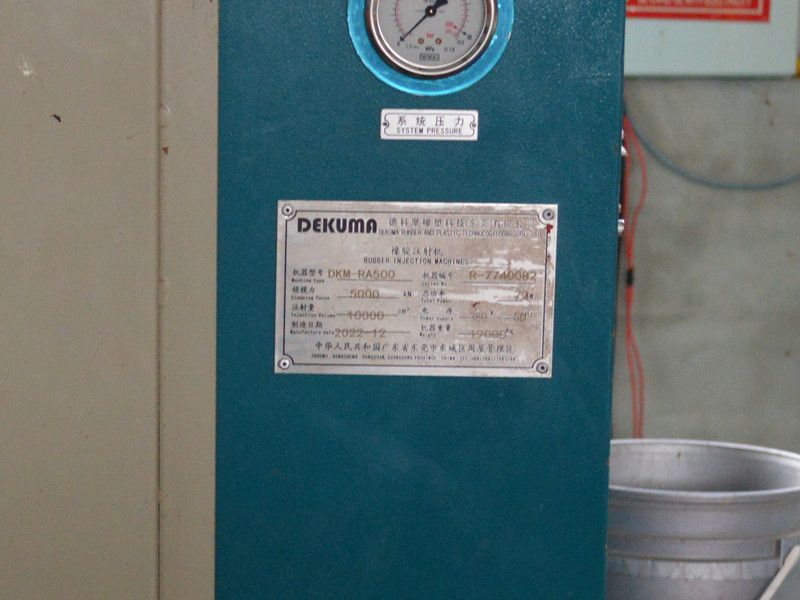

Our company utilizes the world's most advanced injection vulcanizing machine from the German brand DekoMo, imported from Germany, which offers higher efficiency and more stable quality

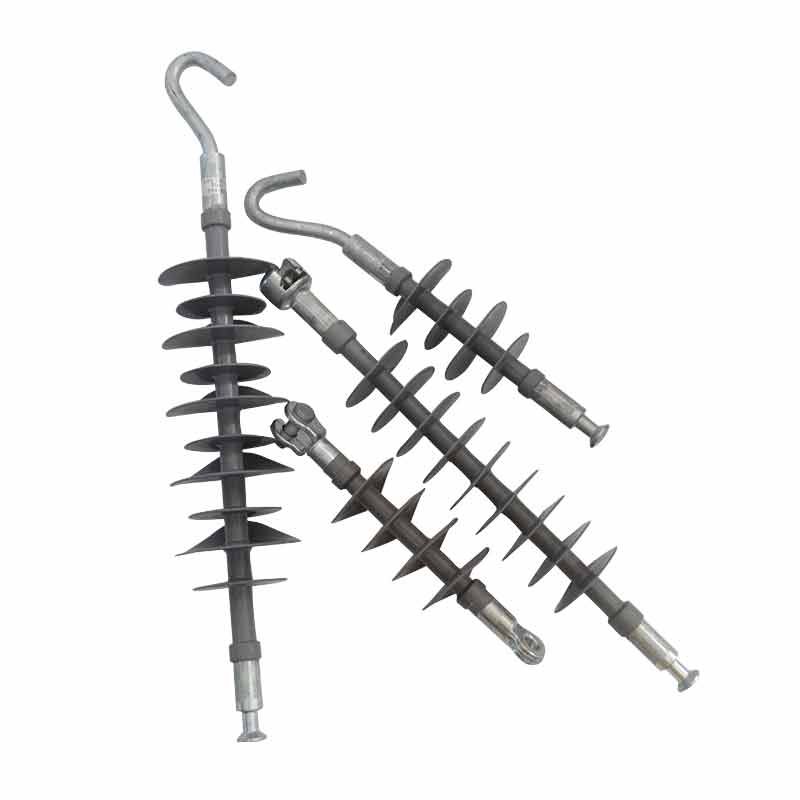

Polymer Composite Rod-Type Suspension Insulator
Polymer Composite Rod-Type Suspension Insulator
Polymer Composite Rod-Type Suspension Insulator
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
