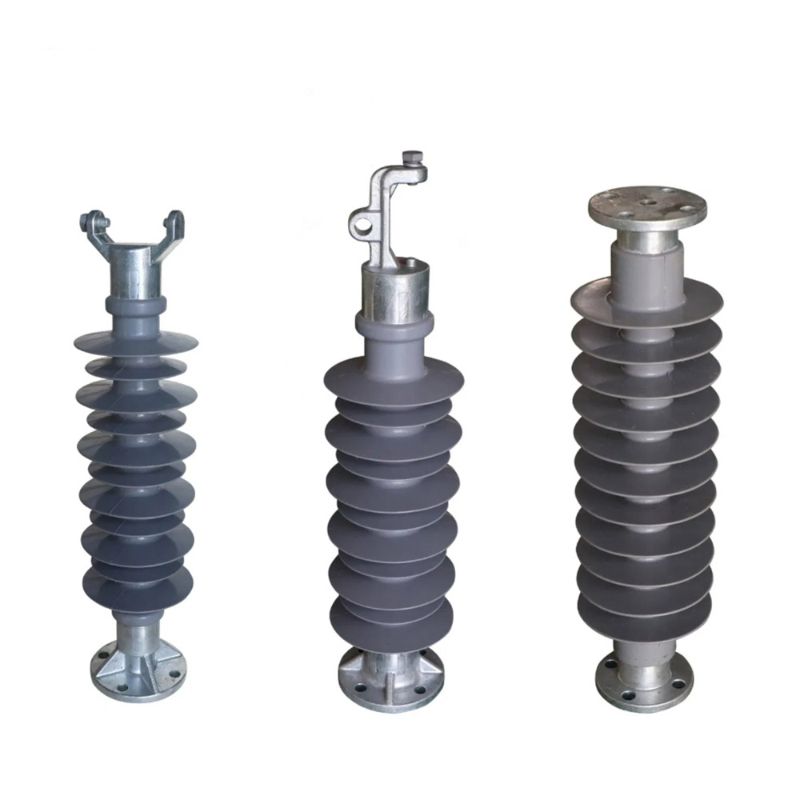

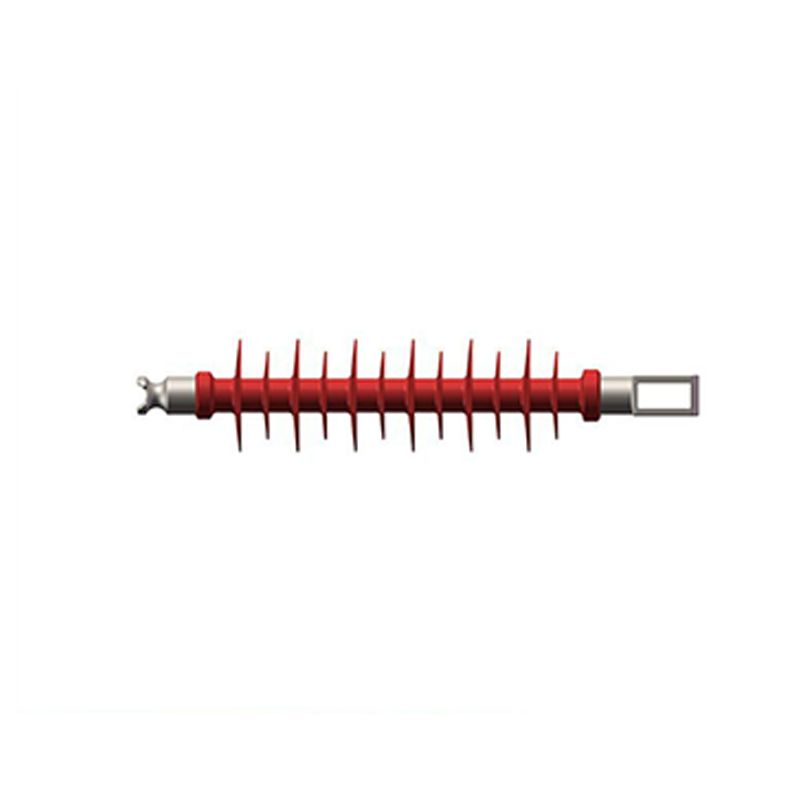

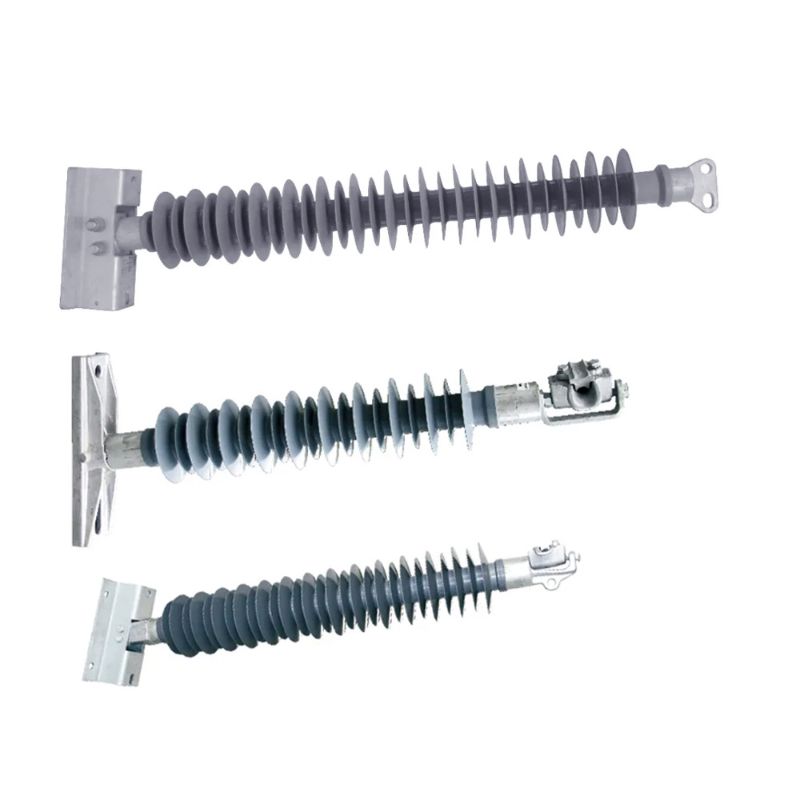

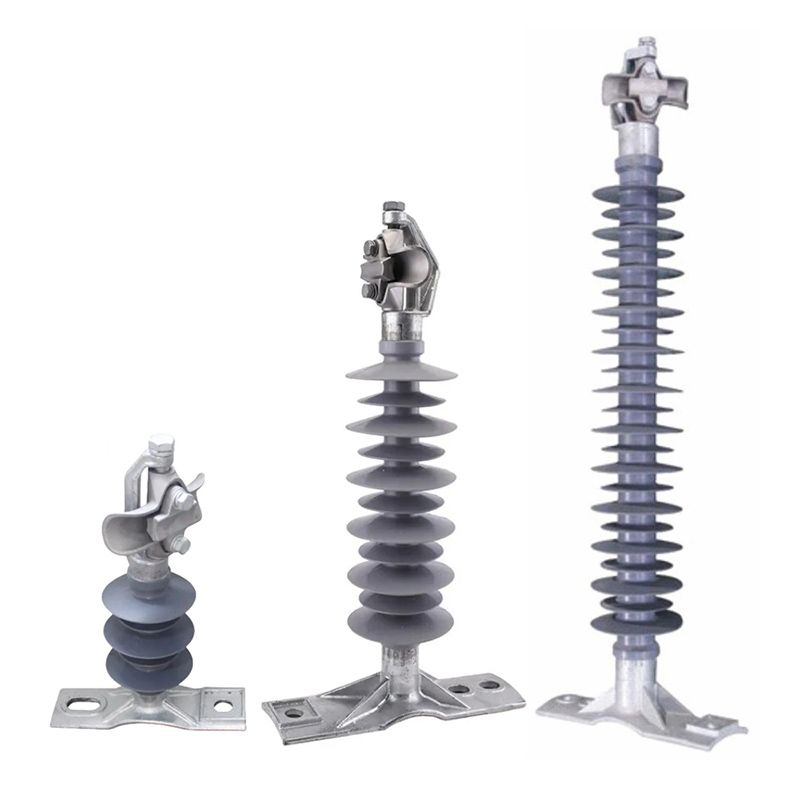

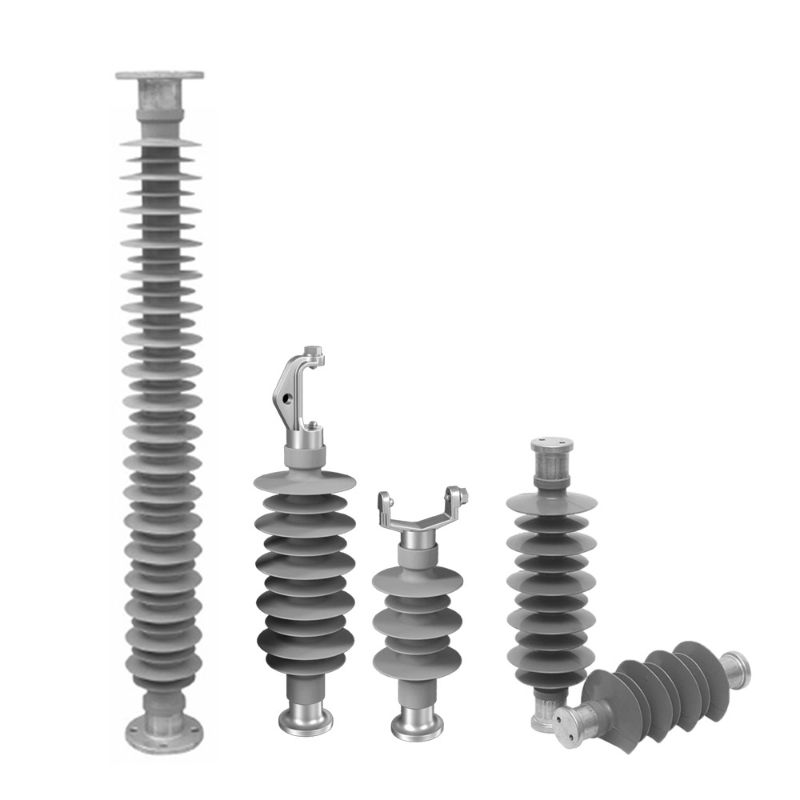

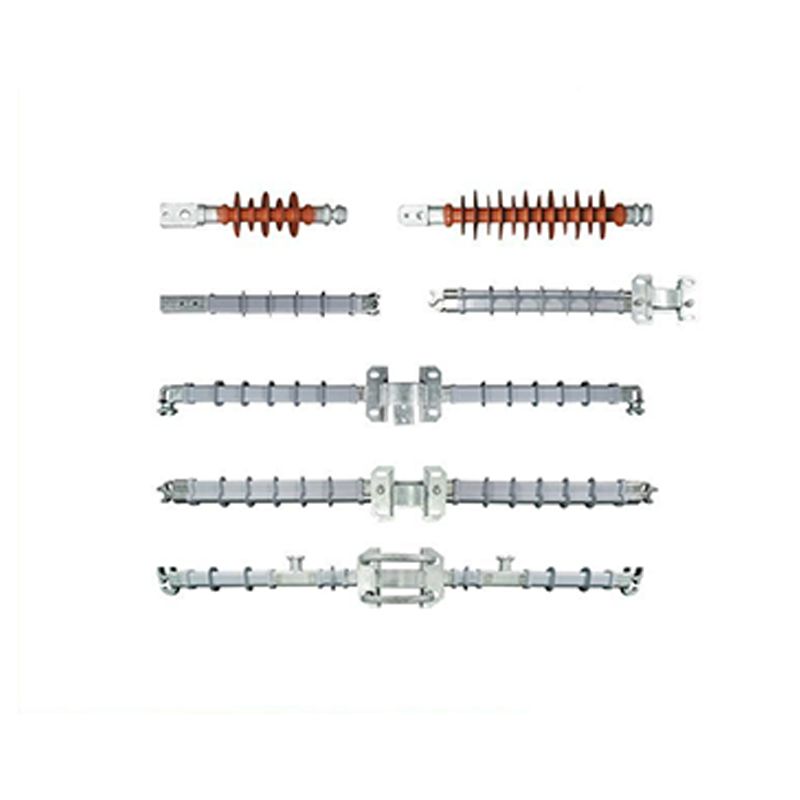

The composite post insulator is a high-voltage electrical equipment consisting of three parts: a glass fiber epoxy resin pull rod (core rod), a silicone rubber umbrella skirt, and metal fittings.
Product Detail
The composite post insulator is a high-voltage electrical equipment consisting of three parts: a glass fiber epoxy resin pull rod (core rod), a silicone rubber umbrella skirt, and metal fittings.
In terms of applications, this insulator is widely used in substations, urban power grid renovations, and transmission lines in heavily polluted areas. It is particularly suitable for narrow corridors, large spans, or compact lines, allowing for a reduction in tower height and maintenance costs.
It also plays an important role in the new energy sector (such as wind farms and solar power stations) and in the power systems of transportation facilities.
Through material and structural innovations, this insulator has significantly enhanced the safety and economy of power systems, becoming a key component in the upgrading of modern power grids.
Colors: red, brown, gray, or as per customer's request
The model can be customized according to customer needs.
Product Parameters
| Model | Rated Voltage（kV） | Rated Mechanical Bending Load （kN） | Structure Height （mm） | Minimum Arc Distance（mm） | Minimum Creepage Distance（mm） | Lightning Impulse Withstand Voltage,peak（kV） | 1Power Frequency 1 min Wet Withstand Voltage （kV） |
| FZSW-11/10 | 11 | 10 | 405 | 165 | 430 | 95 | 45 |
| FZSW-24/10 | 24 | 10 | 405 | 320 | 700 | 125 | 65 |
| FZSW-33/10 | 33 | 10 | 570 | 320 | 1080 | 220 | 145 |
| FZSW-33/20 | 33 | 20 | 590 | 358 | 1200 | 200 | 95 |
| FZSW-60/10 | 66 | 10 | 760 | 630 | 1940 | 350 | 185 |
| FZSW-66/12.5 | 66 | 12.5 | 1050 | 790 | 2248 | 350 | 185 |
| FZSW-11/10 | 11 | 10 | 255 | 175 | 600 | 145 | 45 |
| FZSW-24/10 | 24 | 10 | 300 | 210 | 630 | 145 | 65 |
| FZSW-33/10 | 33 | 10 | 450 | 275 | 900 | 200 | 95 |
| FZSW-33/10 | 33 | 10 | 400 | 285 | 1060 | 200 | 95 |
| FZSW-66/10 | 66 | 10 | 760 | 630 | 1940 | 350 | 185 |
| FZSW-110/10 | 110 | 10 | 1220 | 1060 | 3260 | 450 | 200 |
| FZSW-220/10 | 220 | 10 | 2550 | 2050 | 6520 | 950 | 395 |

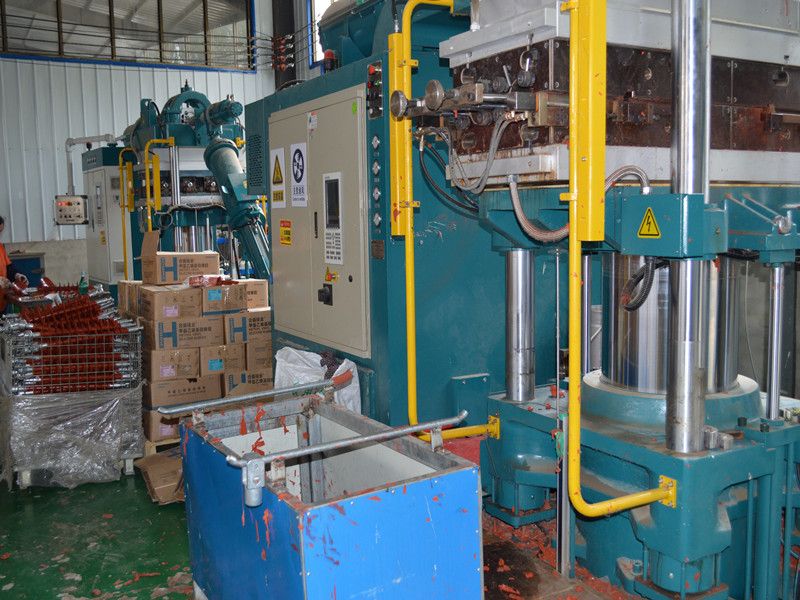

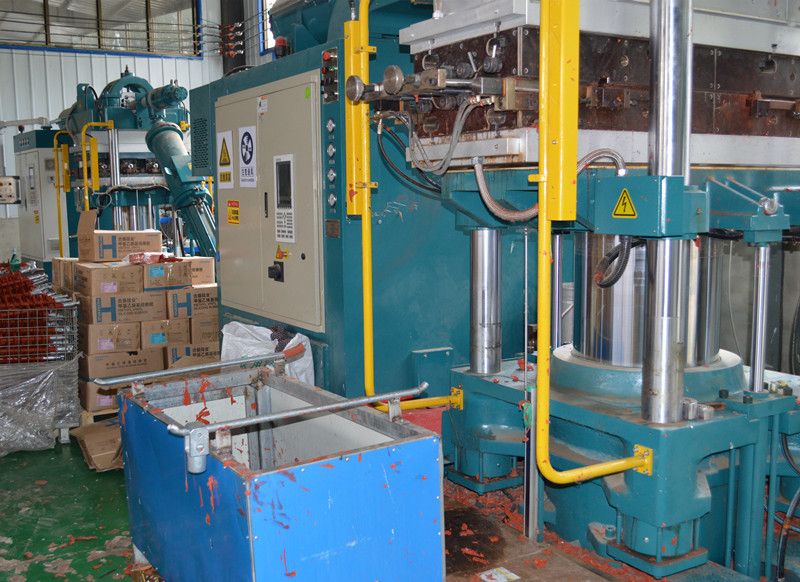

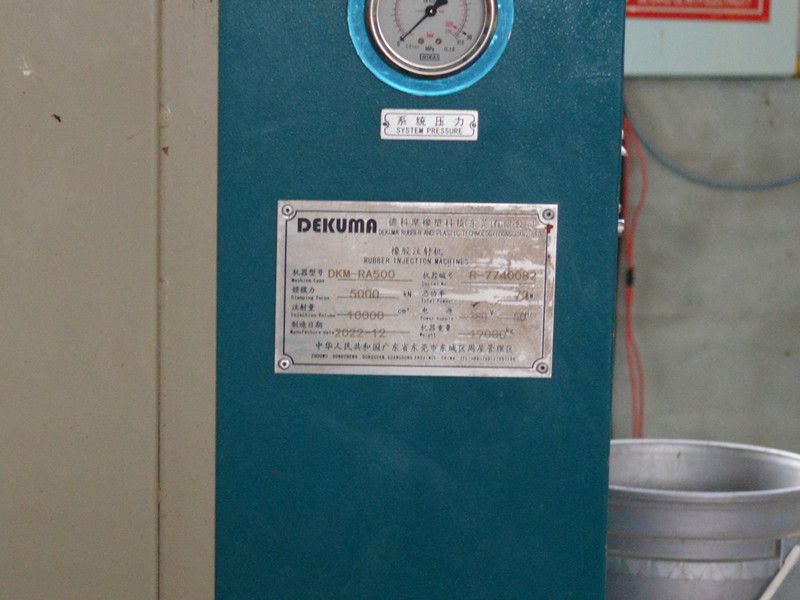

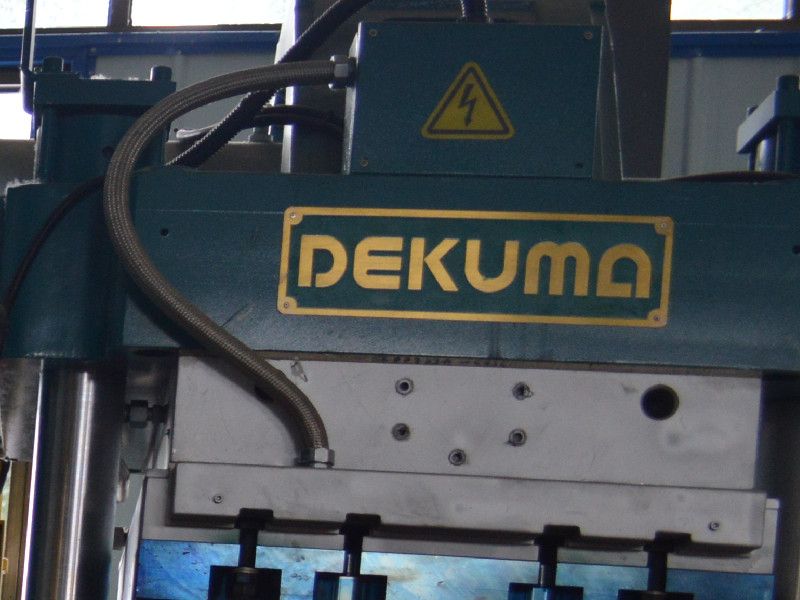

Our company utilizes the world's most advanced injection vulcanizing machine from the German brand DekoMo, imported from Germany, which offers higher efficiency and more stable quality
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
