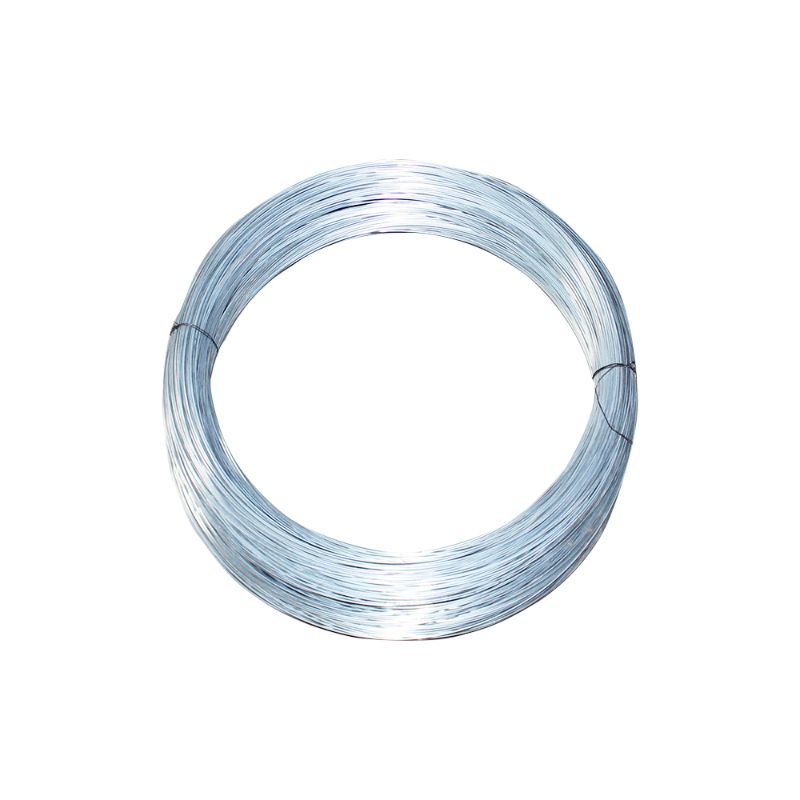

Galvanized wire is made of high-quality low-carbon steel wire rod through drawing, high-temperature annealing, pickling and rust removal, cold (hot) galvanizing and other processes. The product has the characteristics of strong flexibility, good plasticity and excellent corrosion resistance.
Product Detail
Raw materials: Q195 low-carbon steel wire rod
Production process: wire rod → wire drawing → annealing → rust removal → pickling → galvanizing → plastic coating → wire coiling.
Features: Galvanized iron wire has good toughness and elasticity, and the maximum zinc coating can reach 300 grams/square meter. It has the characteristics of thick galvanized layer and strong corrosion resistance.
According to different galvanizing processes, galvanized wire is divided into hot-dip galvanized wire and cold-dip galvanized wire.
Hot-dip galvanized wire is dipped in heated and molten zinc liquid. The production speed is fast, the coating is thick but not uniform, the minimum thickness is 45 microns, and the maximum thickness can reach more than 300 microns. The color is darker, the zinc metal consumption is more, and it can form an infiltration layer with the base metal. It has good corrosion resistance. Hot-dip galvanizing can be maintained for decades in outdoor environments.
Cold-dip galvanized wire is also called electro-galvanized wire. It is a process in which zinc is gradually plated on the metal surface through unidirectional current in the electroplating tank. The production speed is slow, the coating is uniform, the thickness is thin, usually only 3-15 microns, the appearance is bright, and the corrosion resistance is not as good as hot-dip galvanized wire.
Difference between cold-dip galvanizing and hot-dip galvanizing: The difference between cold-dip galvanizing and hot-dip galvanizing is the different amount of zinc applied. They can be identified by color. Cold-dip galvanizing is bright in color, silver-white with a slight yellow. Hot-dip galvanizing is bright and white.
Other Parameters
| Material Science | Low carbon steel wire rod | |
| Wire diameter | 0.5mm-5.2mm | |
| Zinc content | Hot galvanizing | 40-60g/m2, 70-90g/m2, 240-280g/m2 |
| Electro-galvanized | 12-20g/m2 | |
| Tensile resistance | 300 ~ 500MPa. | |
| Elongation | 15%-30% | |
| Roll weight | 25-800Kg | |
| Packaging | Coil wire | 1kg-20kg, Inner plastic film, outer gunny bag or woven bag |
| Axial filament | 2kg-100kg, material package, outer carton | |
| Sowing the line | 100-1000Kg/roll | |
Wire diameter: 0.5mm-5.2mm.
Zinc coating amount: hot-dip galvanizing: 40-60g/m2, 70-90g/m2, 240-280g/m2. Cold galvanizing: 12-20g/m2
Tensile strength: 350-500N/mm2.
Elongation: 15%-30%

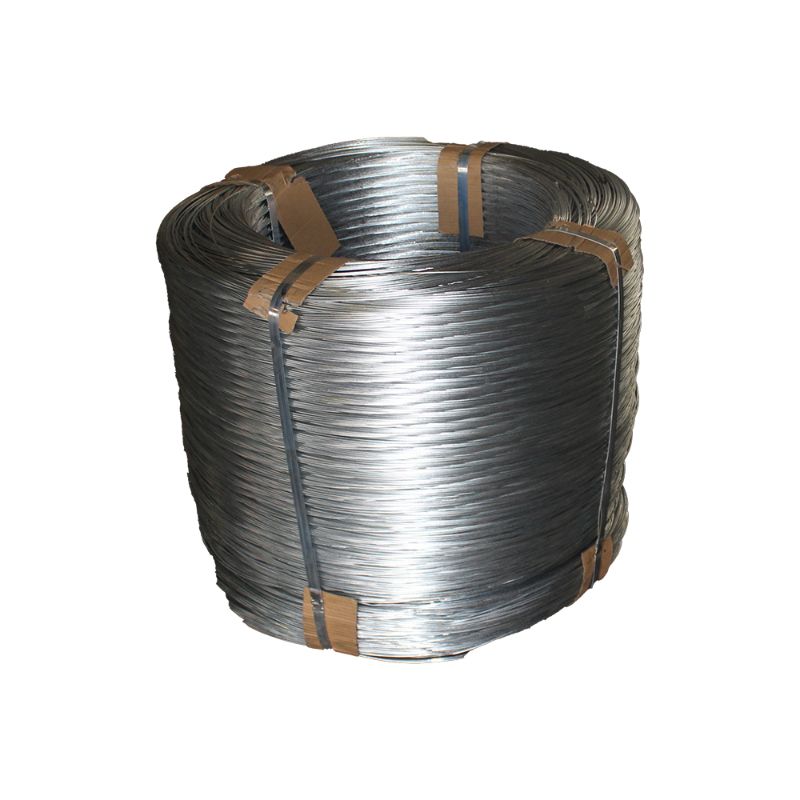

Coil weight: 25-800kg, and it can also be made into large coils, also known as scattered wires: each coil weighs about 100 kg-1000 kg.
Packaging: There are mainly two types of coils and shaft wires.

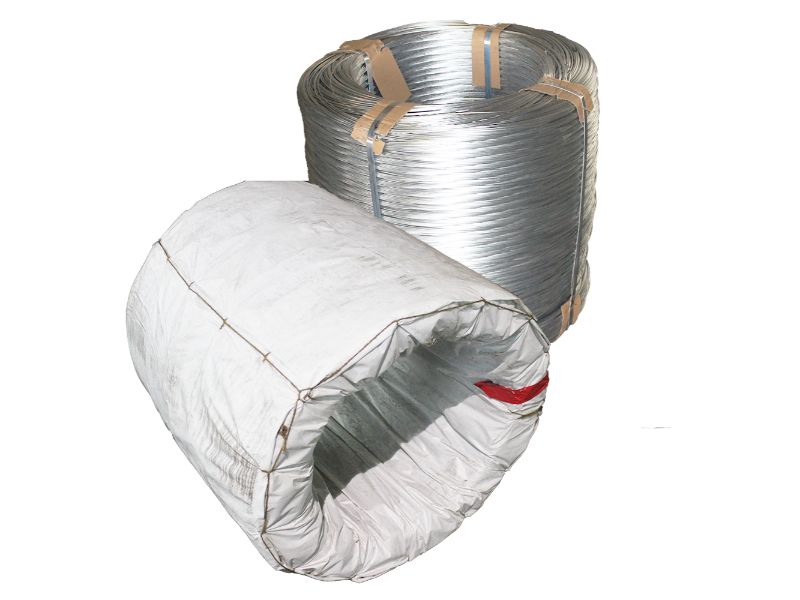

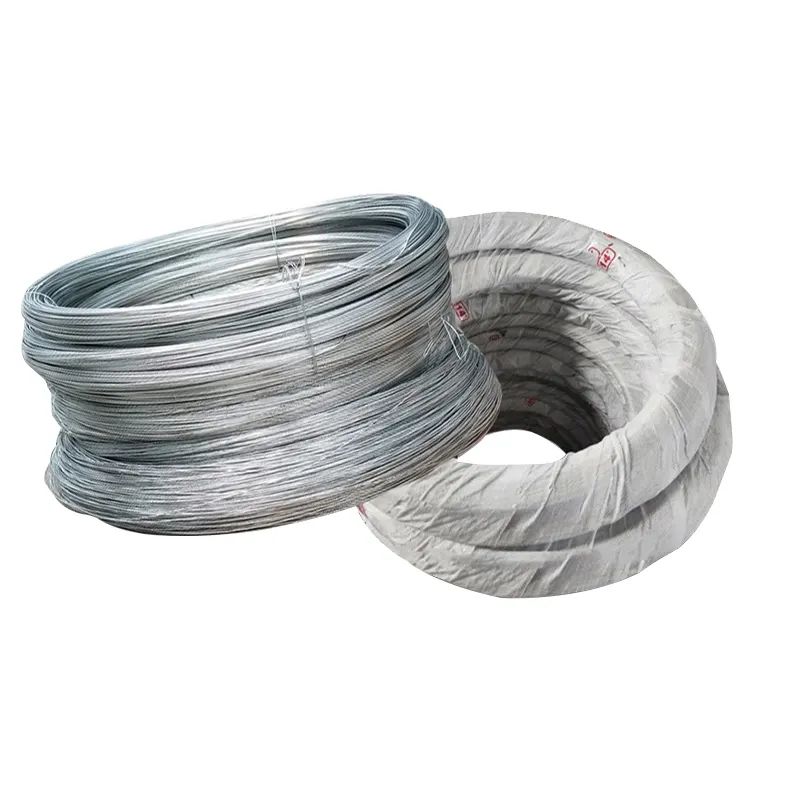

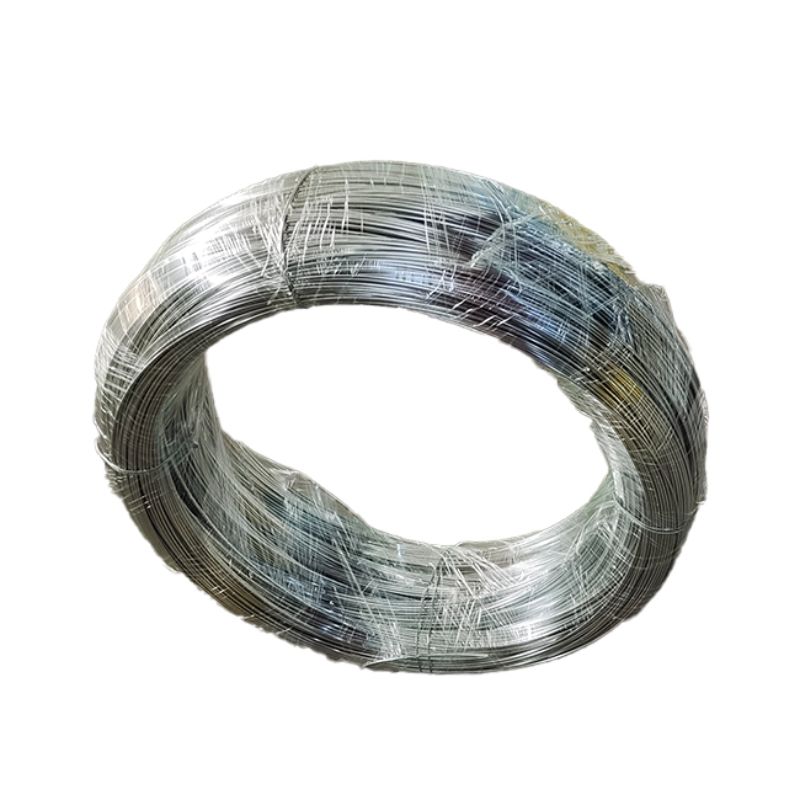

Coil wire: plastic inside and braided outside, plastic inside and hemp outside.
Shaft wire: plastic wrapping, carton.
Application: Mainly used for various metal mesh weaving, building binding wire, wire and cable, medical equipment, brush making, clothes drying racks, wire ropes, handicrafts and other industries.
Common wire diameter comparison table:
| Wire size | SWG mm | BWG mm | Nominal diameter |
| 8# | 4.06 | 4.19 | 4.00 |
| 9# | 3.66 | 3.76 | - |
| 10# | 3.25 | 3.40 | 3.50 |
| 11# | 2.95 | 3.05 | 3.00 |
| 12# | 2.64 | 2.77 | 2.80 |
| 13# | 2.34 | 2.41 | 2.50 |
| 14# | 2.03 | 2.11 | - |
| 15# | 1.83 | 1.83 | 1.80 |
| 16# | 1.63 | 1.65 | 1.65 |
| 17# | 1.42 | 1.47 | 1.40 |
| 18# | 1.22 | 1.25 | 1.20 |
| 19# | 1.02 | 1.07 | 1.00 |
| 20# | 0.91 | 0.89 | 0.90 |
| 21# | 0.81 | 0.813 | 0.80 |
| 22# | 0.71 | 0.711 | 0.70 |

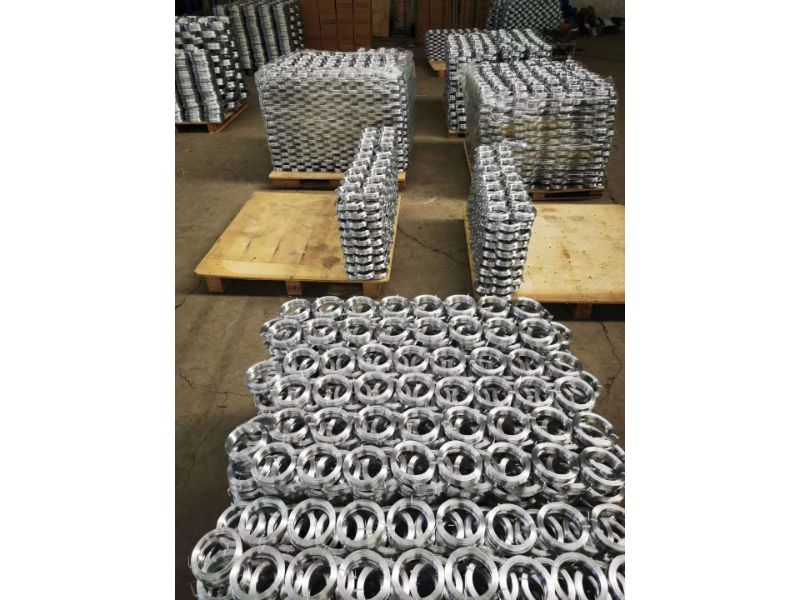

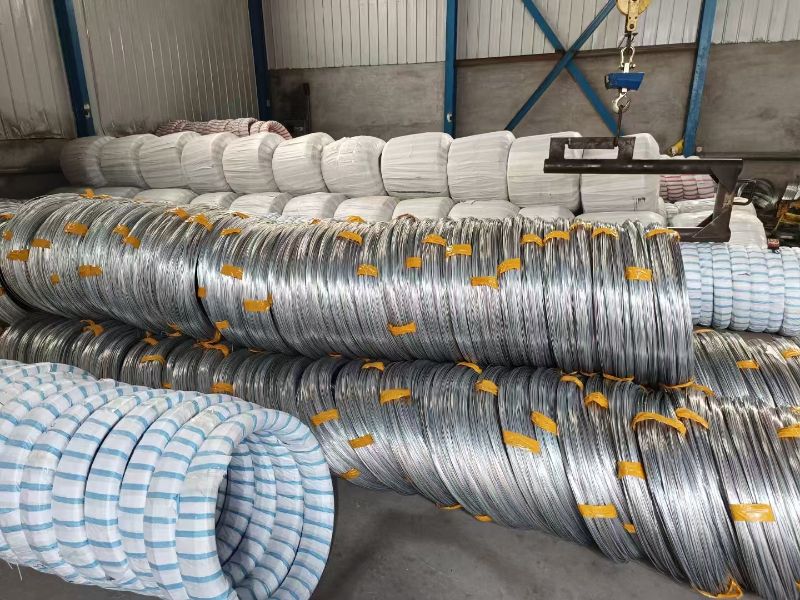

Product Details and Packaging
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
