Application Scope

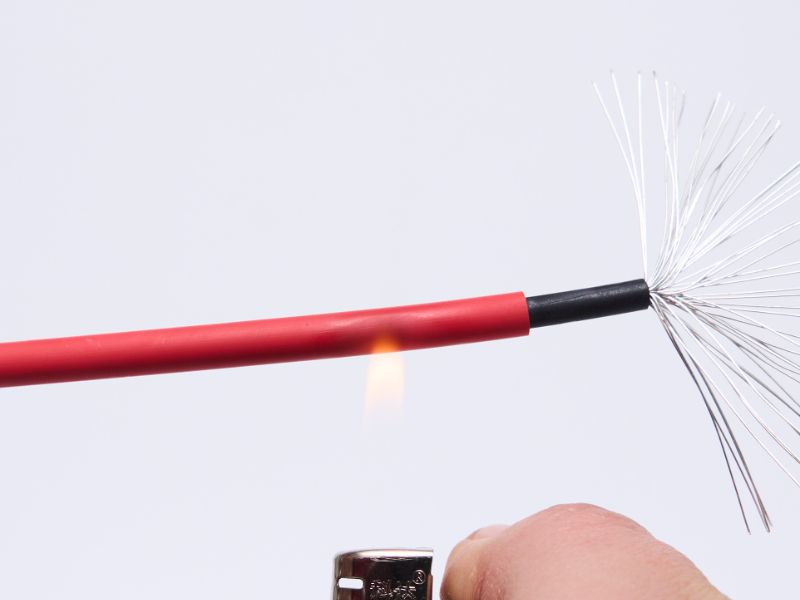

Features: low smoke and halogen-free, excellent cold resistance, UV resistance, ozone resistance and weather resistance. Flame retardant, cut resistance, penetration resistance.
Cable protection level II.
Ambient temperature: -40℃～+90℃; Maximum conductor temperature: 120℃ (short circuit temperature 200℃ allowed within 5s);
Rated voltage: AC0.6/1kV DC1.8kV
Design life: 25 years
Product Detail

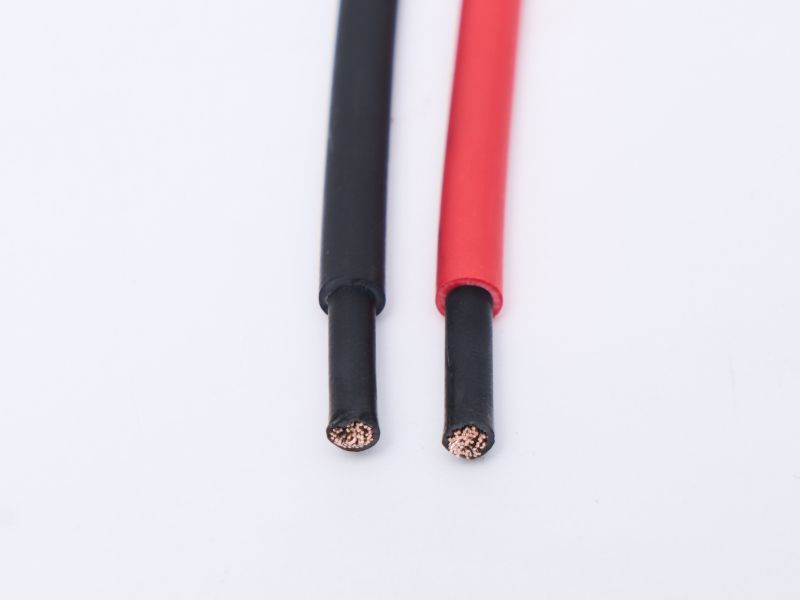

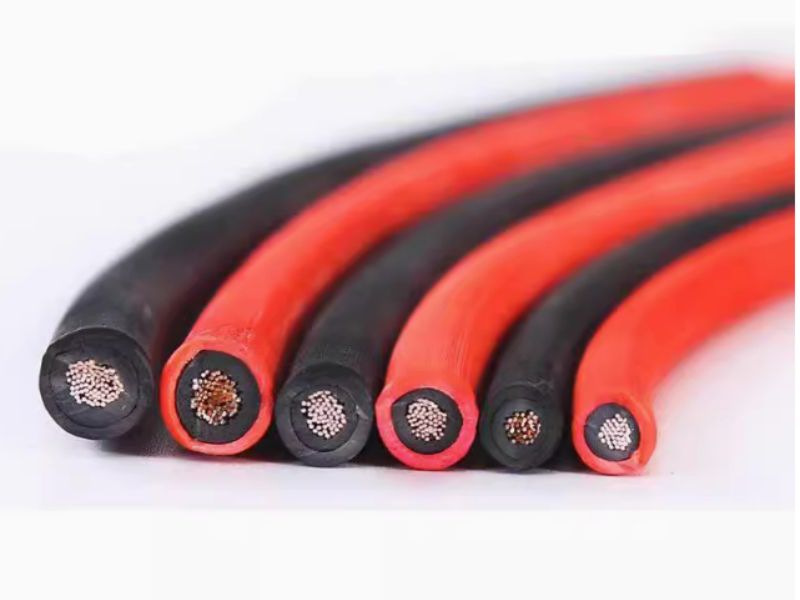

Structure

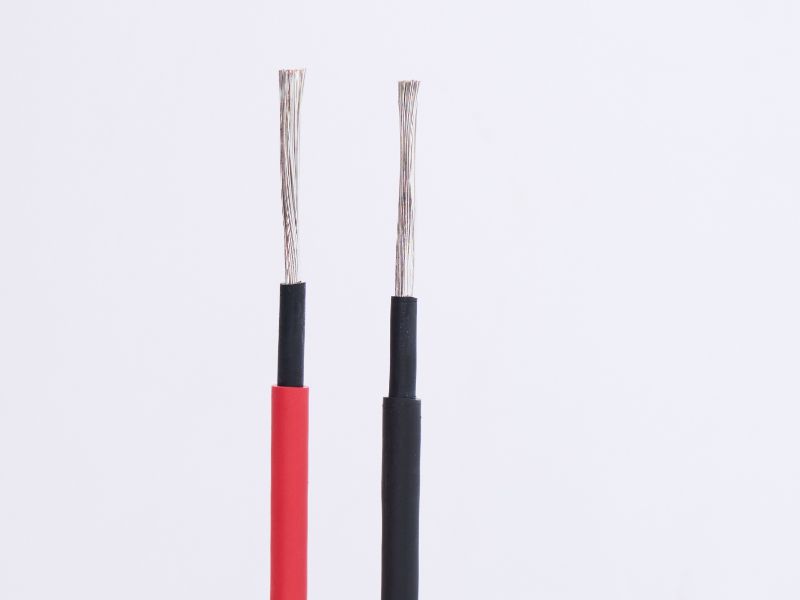

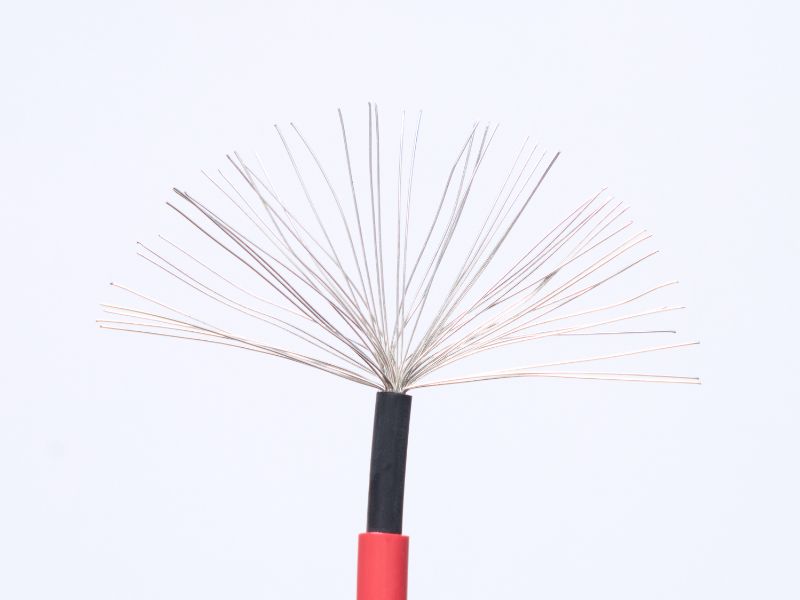

Conductor: IEC60228 Category 5 stranded tinned copper wire PV1-F 2.5, 4, 6, 10mm2
Insulation: Cross-linked low smoke and halogen-free flame retardant polyolefin double-layer insulation
Thickness ﹥0.5mm, and in line with the limit given by the customer.
Sheath: Cross-linked low-smoke halogen-free flame-retardant polyolefin
Thickness>0.5mm
Using 150℃ halogen-free flame-retardant photovoltaic cable irradiation insulation material (because the maximum temperature is 120℃, it must be higher than it), it is made of halogen-free non-toxic modified polyolefin resin as the main raw material, adding halogen-free non-toxic flame retardant, heat stabilizer, smoke suppressant, mildew inhibitor and other additives, without halogen (especially emphasized in Europe), heavy metals, phosphorus elements. And it complies with ROHS, and the insulation resistance changes little after immersion in water.
Product Parameters
| Type（㎟） | Diameter of a single wire core(mm) | Number of roots | Outer diameter （mm） |
| 2.5 | 0.3 | 35 | 5.2 |
| 4 | 0.3 | 56 | 5.6 |
| 6 | 0.3 | 84 | 6.3 |
| 10 | 0.42 | 72 | 8 |

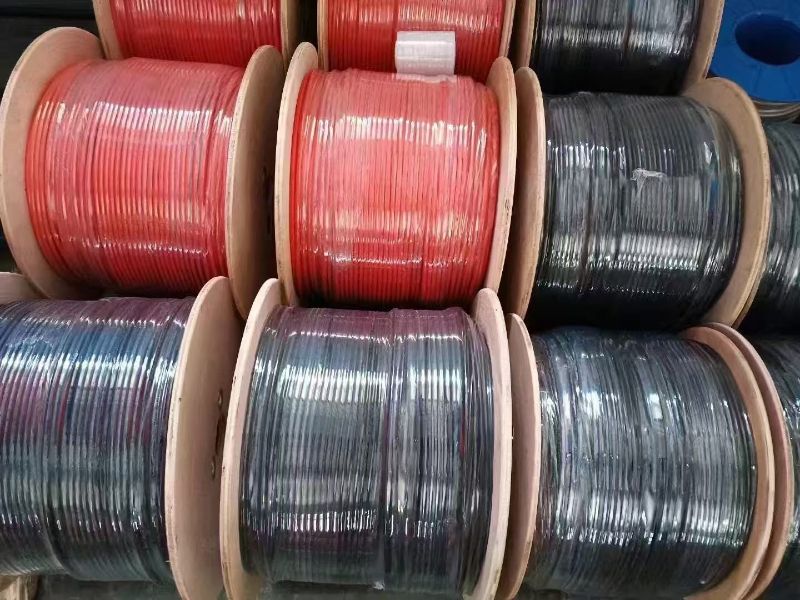

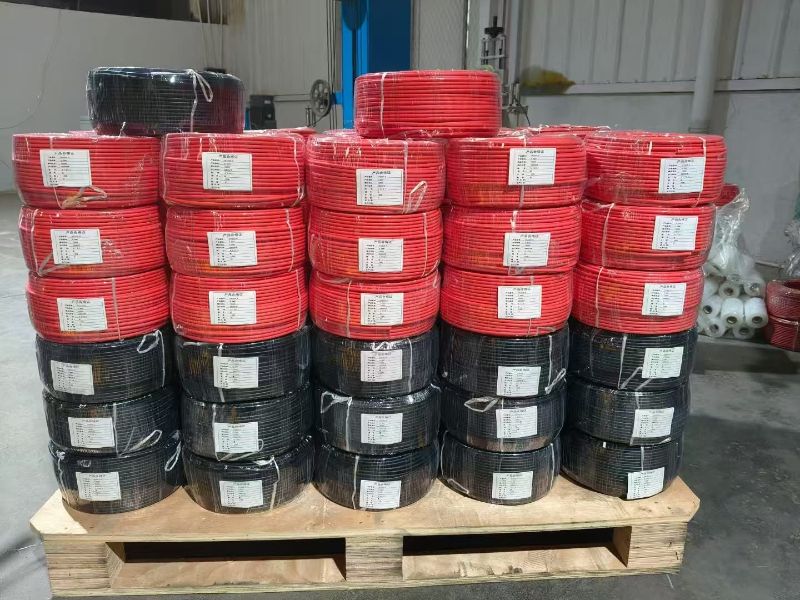

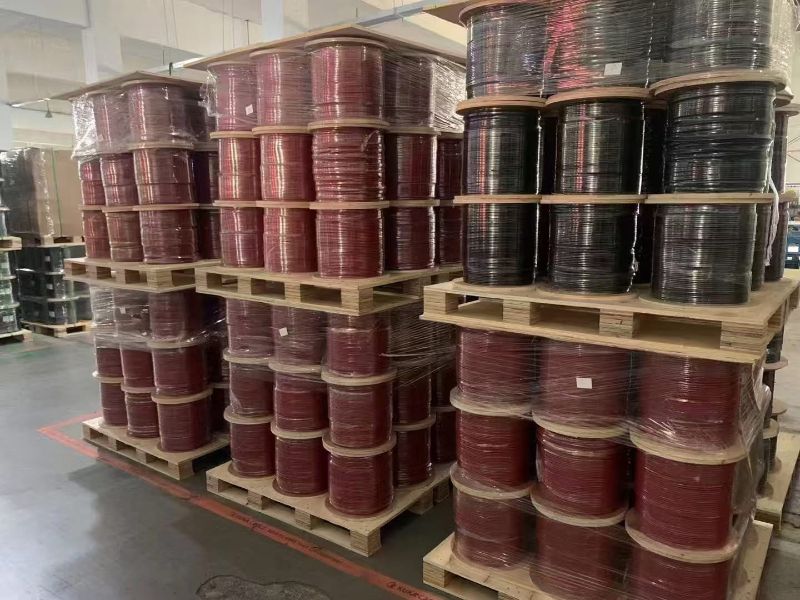

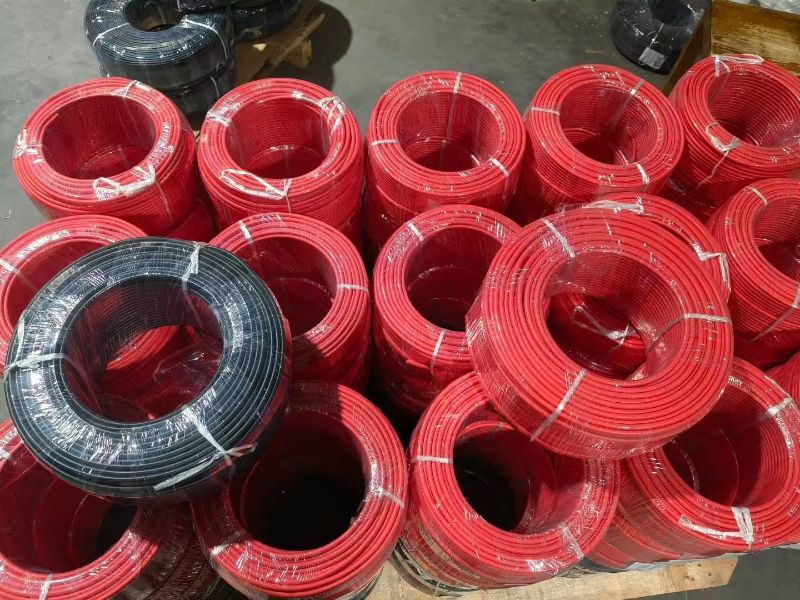

Product Details and Packaging
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
