XP-70 is a standard porcelain insulator specifically designed for traditional and low-pollution environments, making it an ideal choice for overhead transmission and distribution lines.Its main features include: Dimensions: Nominal diameter of 255mm, structural height of 146mm, creepage distance of 320mm, and unit weight of 3.5kg. Mechanical load capacity: 70kN Wet power frequency withstand voltage: 40kV Dry lightning impulse withstand voltage: 100kV Manufactured and tested in accordance with IEC standards to ensure reliability and safety in electrical applications, typically operating at 11kV to 33kV.
Product Detail
The XP-70 U70BL Porcelain 70kN Disc Insulator is designed for overhead power transmission and distribution systems requiring balanced mechanical strength and reliable insulation performance.
Compared with higher load models such as the U120B 120kN porcelain disc insulator, XP-70 provides a practical solution for general overhead line applications.
With 70kN mechanical strength, XP-70 U70BL meets common overhead line requirements while maintaining installation flexibility.
Electrical porcelain construction ensures:
High insulation capability
Weather resistance
Long service life
XP-70 U70BL porcelain insulators are suitable for:
Distribution networks
Medium voltage transmission systems
Utility power projects
| Model | Mechanical Strength | Application |
|---|---|---|
| U120B | 120kN | High load transmission |
| XP-70 U70BL | 70kN | General transmission applications |
| U40B | 40kN | Standard distribution applications |
Product Parameters

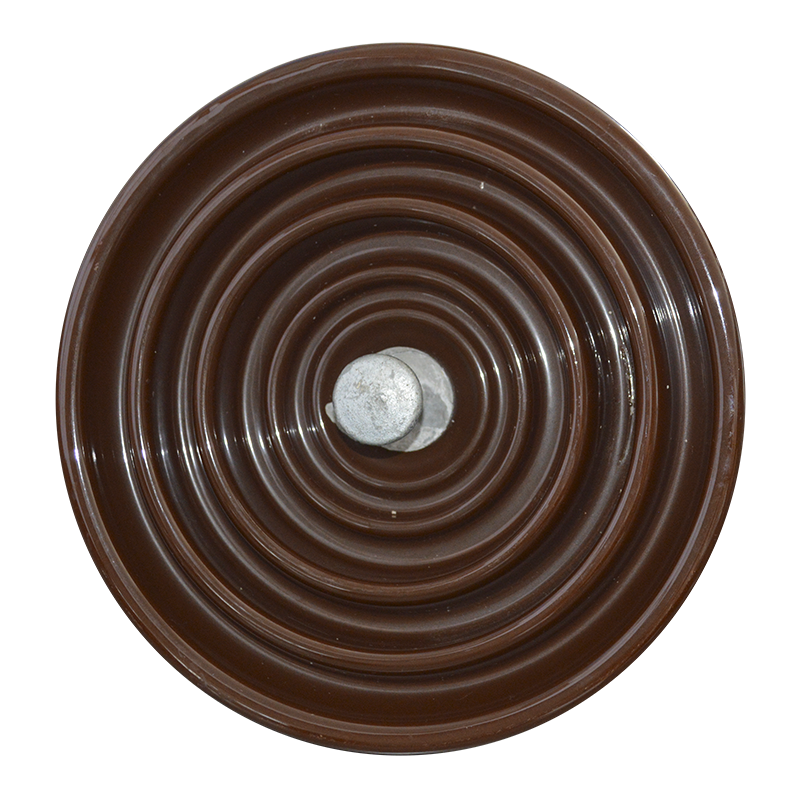

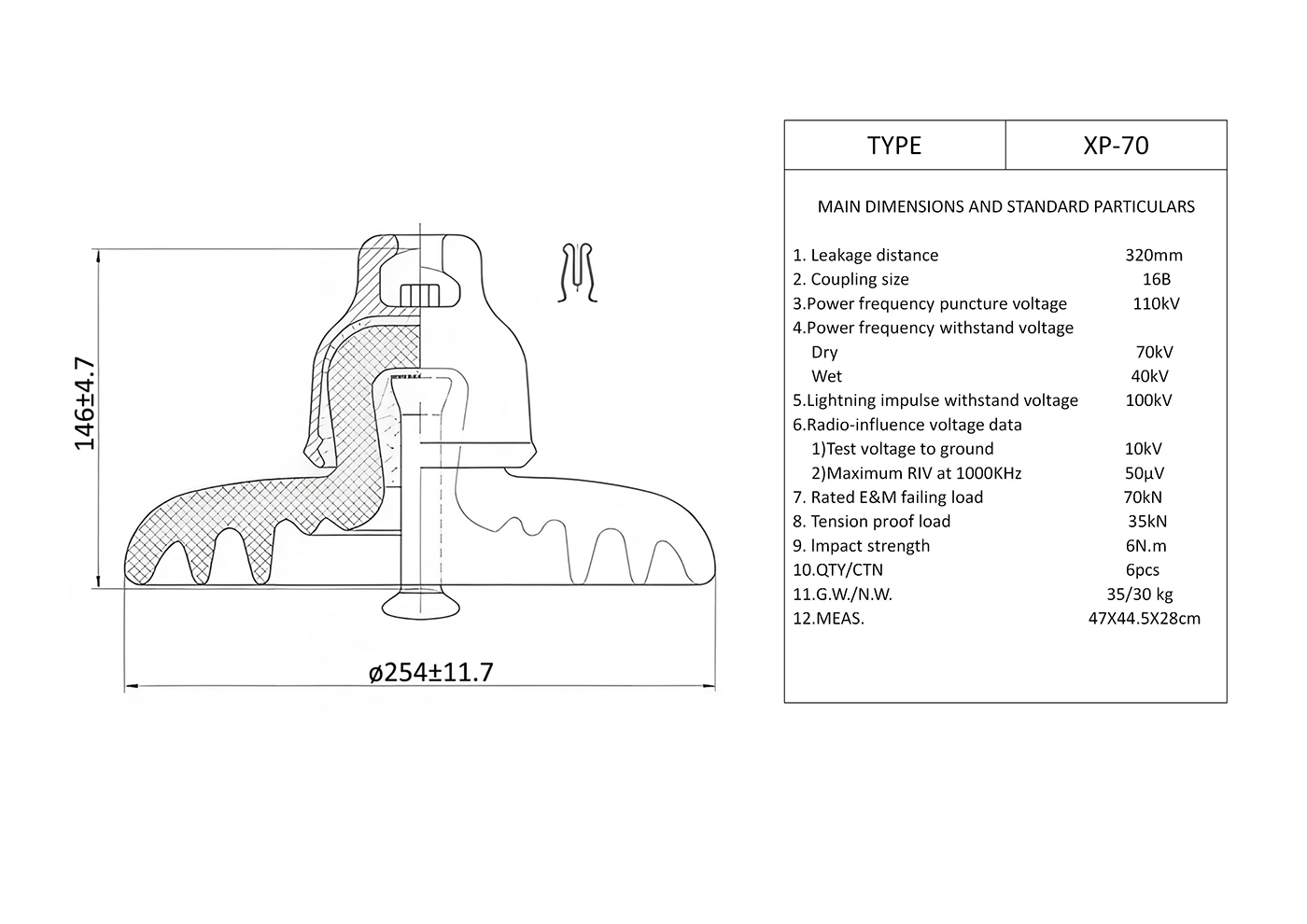

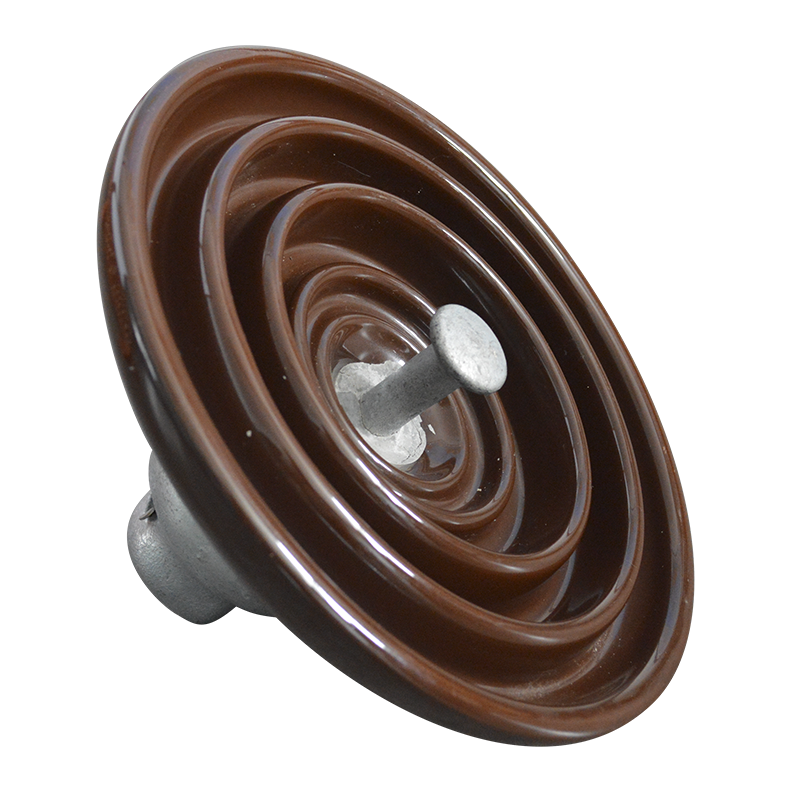

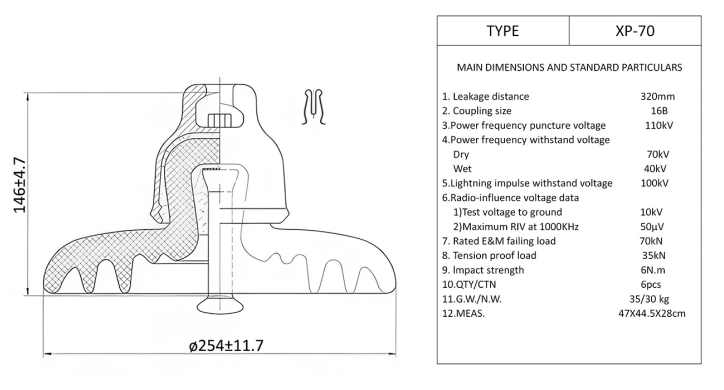

| Type | XP-70 | XP-70C |
| IEC Class | U70BL | U70C |
| Coupling size | 16 | 16C |
| Diameter(mm) | 255 | 255 |
| Spacing (mm) | 146 | 146 |
| Creepage distance (mm) | 320 | 320 |
| Combined M&E strength (kN) | 70 | 70 |
| Impact strength (N.m) | 6 | 6 |
| Routine proof test load (kN) | 35 | 35 |
| Power frequency dry withstand voltage (kV) | 70 | 70 |
| Power frequency wet withstand voltage (kV) | 40 | 40 |
| Dry lightning impulse withstand voltage (kV) | 100 | 100 |
| Power frequency puncture voltage (kV) | 110 | 110 |
| Test voltage RMS to ground (kV) | 10 | 10 |
| Maximum RIV at 1000kHz (μv) | 50 | 50 |
| Net weight, approximate (kg) | 4.7 | 4.8 |
