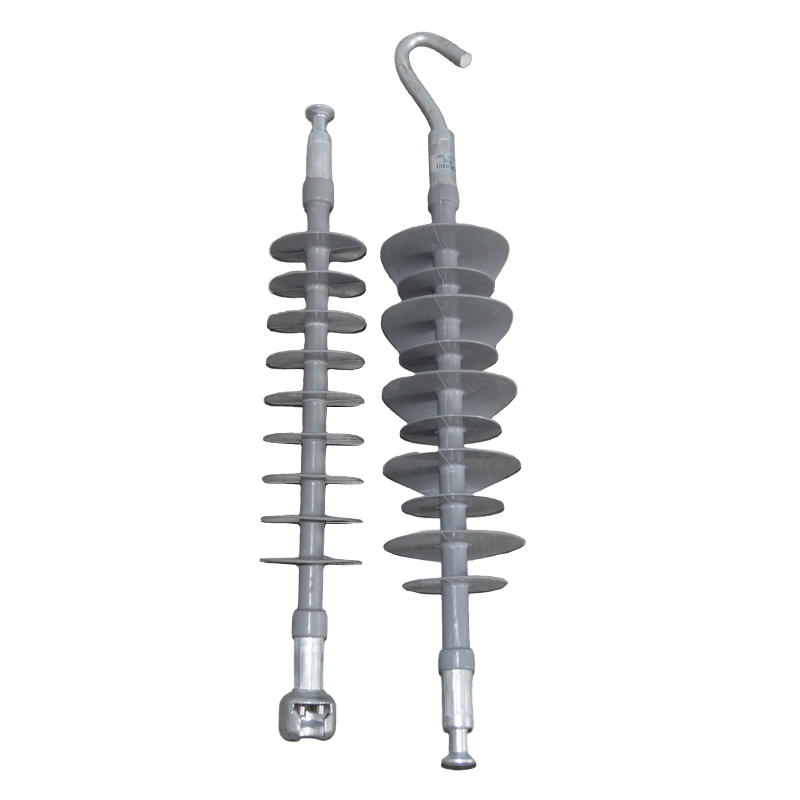

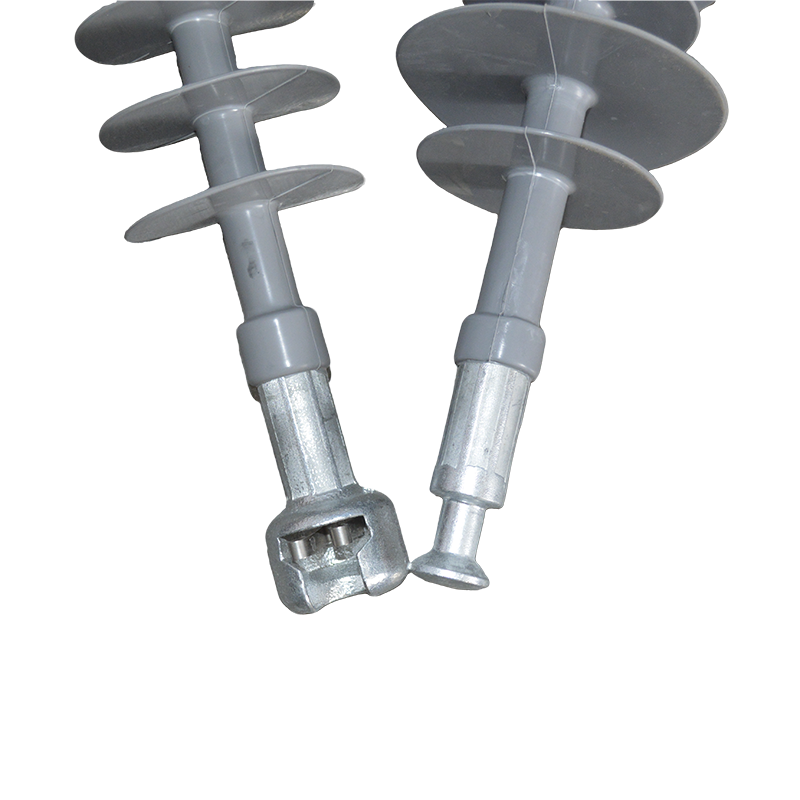

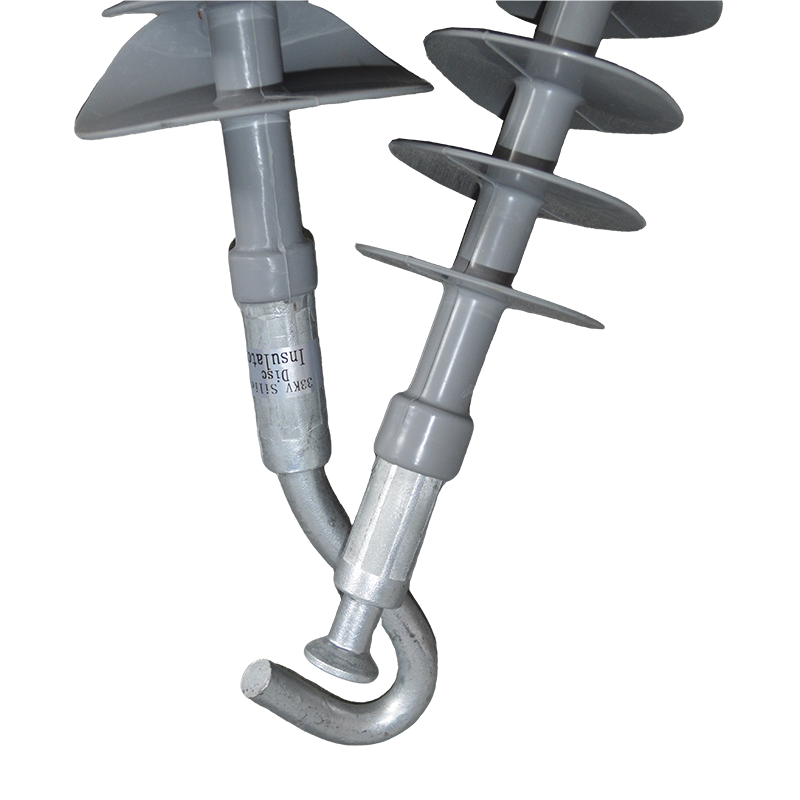

33KV suspension polymer insulator silicon disc insulator
33KV suspension polymer insulator silicon disc insulator
33KV suspension polymer insulator silicon disc insulator
33KV suspension polymer insulator silicon disc insulator
33KV suspension polymer insulator silicon disc insulator
33KV suspension polymer insulator silicon disc insulator

33KV suspension polymer insulator silicon disc insulator

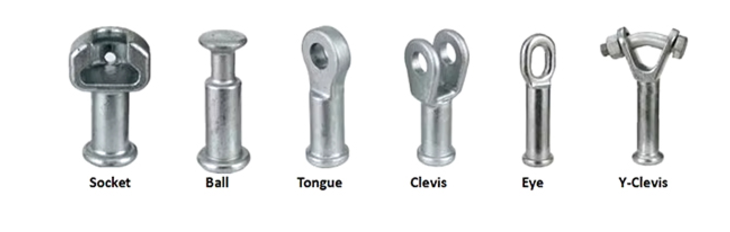

33KV polymer insulators, with their significant advantages such as light weight, high strength, excellent anti-pollution flashover performance (hydrophobicity), explosion-proof, good weather resistance, and low maintenance requirements, have become the mainstream choice in medium-voltage (33KV falls within the medium-voltage category) power systems, especially in polluted environments. They are gradually replacing traditional porcelain insulators and providing strong guarantees for the safe, reliable, and economical operation of the power grid. The core of these insulators lies in the combination of high-performance glass fiber core rods and hydrophobic silicone rubber shed materials. The fittings at both ends vary according to different usage scenarios, and specific pricing requires drawings or pictures for an accurate quote. Our company supports processing and customization based on supplied samples and drawings

Share:

Product Parameters

型号Model额定电压Rated Voltage (kV)额定机械弯曲载荷Rated Mechanical Bending Load (kN)结构高度Structure Height (mm)最小弧距Minimum Arc Distance (mm)最小爬电距离Minimum Creepage Distance (mm)雷电冲击耐受电压峰值Lightning Impulse Withstand Voltage,peak (kV)工频1分钟湿耐受电压Power Frequency 1 min Wet Withstand Voltage (kV)联轴器尺寸Coupling Size
FXB-33/7033705303609002009516
FXB-33/80338059042510802209516
FXBW-33/703370655480126022010516
FXBW-33/10033100695480126022010516



FAQ

Q

A

Can we print our trademark or company name on your product or package?

OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.

Q

A

How does your company do in terms of quality control?

1) We choose all raw materials to be of high quality.

2) Professional and skilled workers pay attention to every detail in handling the production process.

3) The quality control department is specialized in quality inspection for each process.

Q

A

How can I get samples to test your quality?

We can provide free samples for you to test and check, just bear the freight cost.

Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
