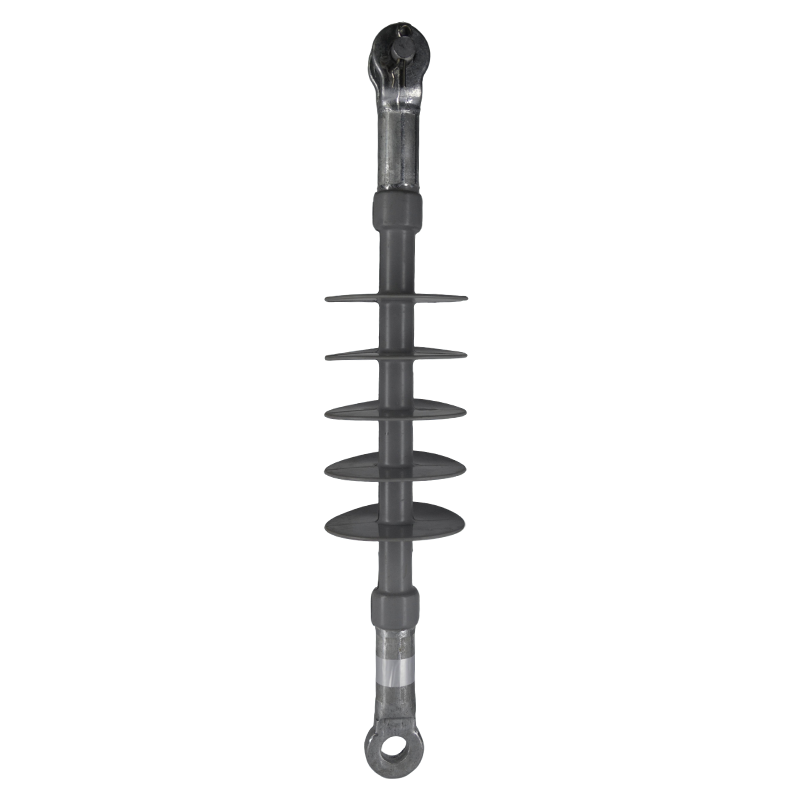

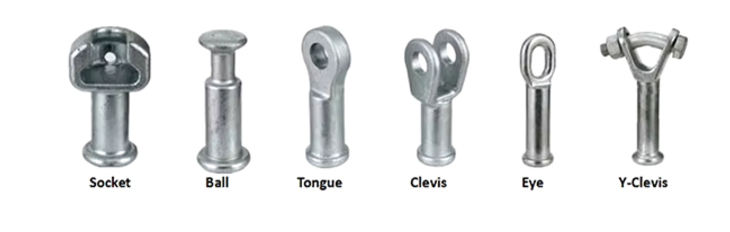

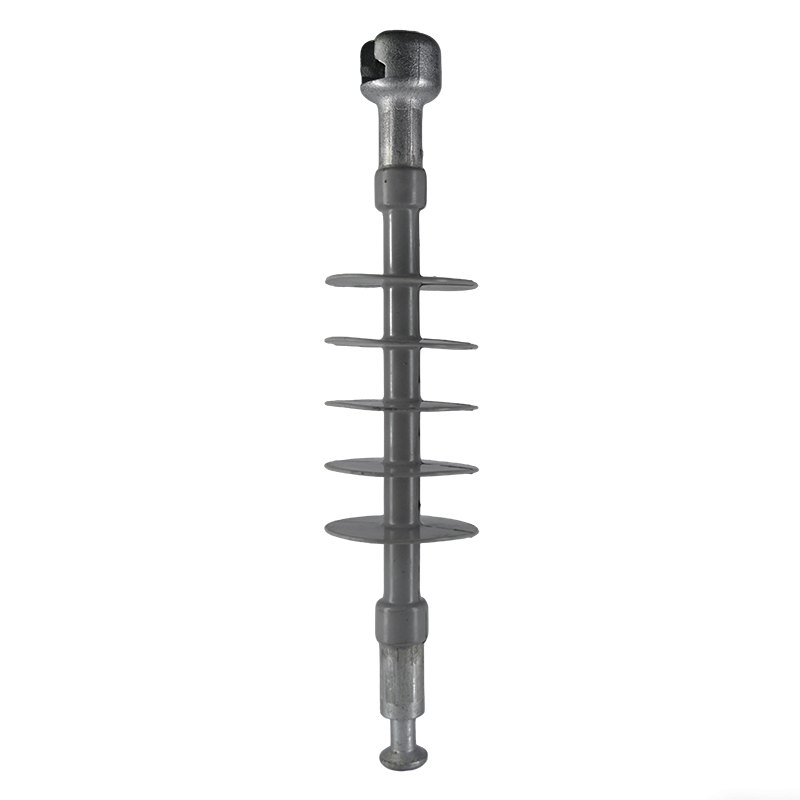

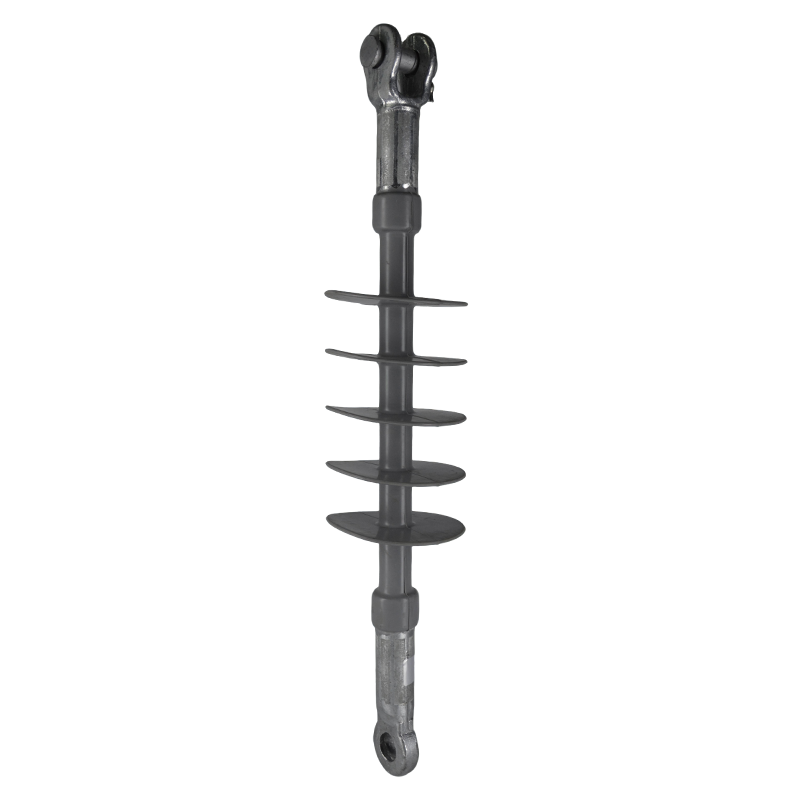

The 24kV polymer disc insulator is made of high-quality hydrophobic silicone rubber, which exhibits excellent resistance to pollution flashover and maintains electrical insulation performance under harsh environmental conditions. The inherent waterproof (hydrophobic) properties of the silicone rubber shell help prevent the formation of conductive water films, significantly enhancing the long-term reliability of the insulator.Regarding mechanical strength, there are two options: 70kN and 100kN, depending on the load requirements of your project. Both options utilize a high-strength fiber-reinforced epoxy resin core (FRP rod), providing excellent tensile strength and structural stability. The hardware fittings at both ends vary according to different usage scenarios, and a precise quotation will be provided based on the specific drawings or pictures. Our company supports processing and customization based on supplied samples or drawings.11KV suspension polymer insulator silicon disc insulator
Product Detail
| 型号Model | 额定电压Rated Voltage (kV) | 额定机械弯曲载荷Rated Mechanical Bending Load (kN) | 结构高度Structure Height (mm) | 最小弧距Minimum Arc Distance (mm) | 最小爬电距离Minimum Creepage Distance (mm) | 工频1分钟湿耐受电压Power Frequency 1 min Wet Withstand Voltage (kV) | 联轴器尺寸Coupling Size |
| FXBW-24/70 | 24 | 70 | 460 | 270 | 675 | 80 | 16 |
Product Parameters
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
