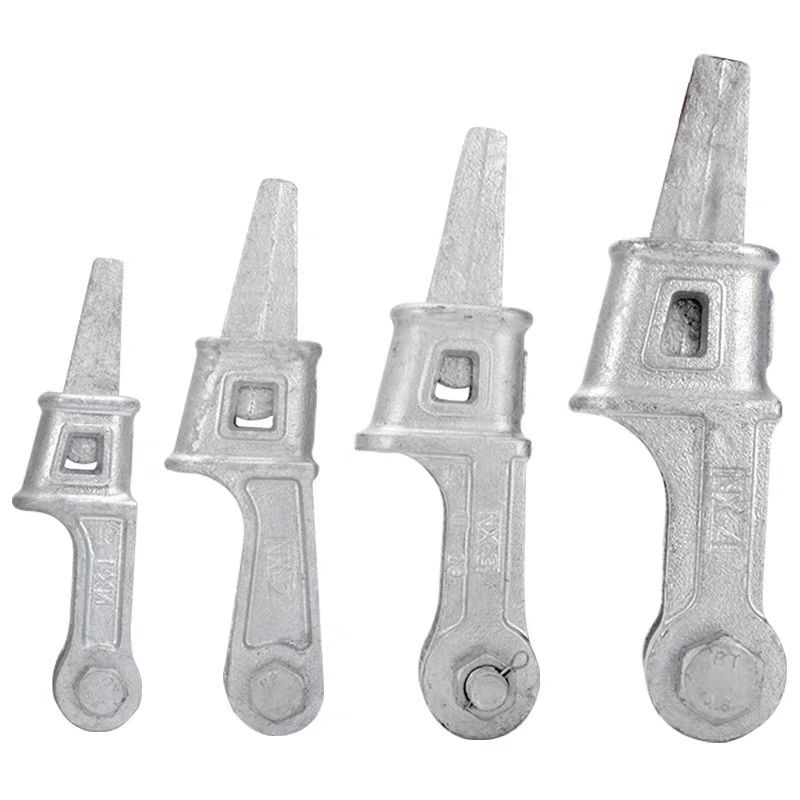

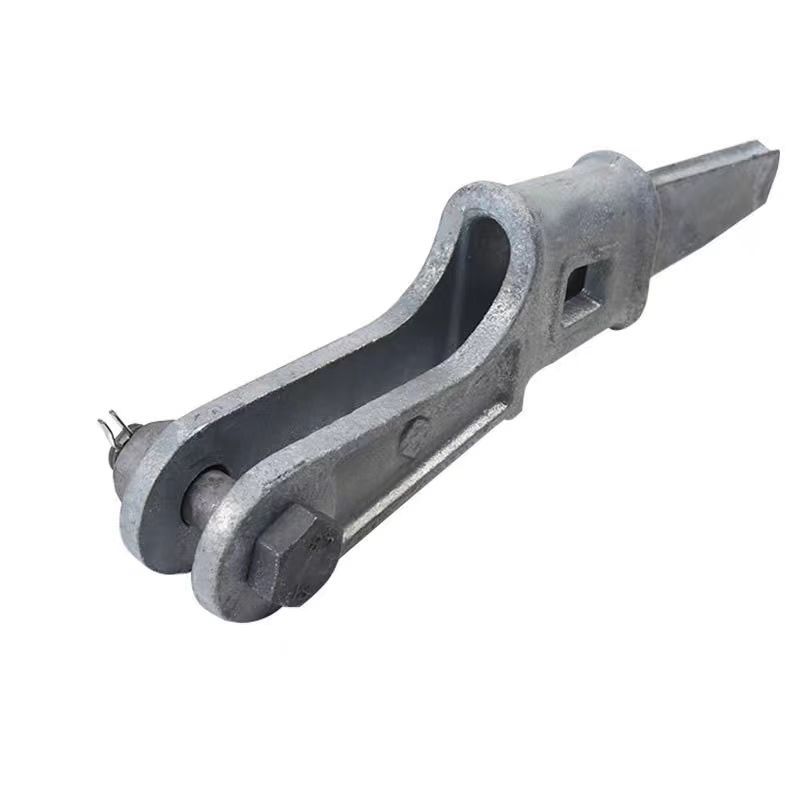

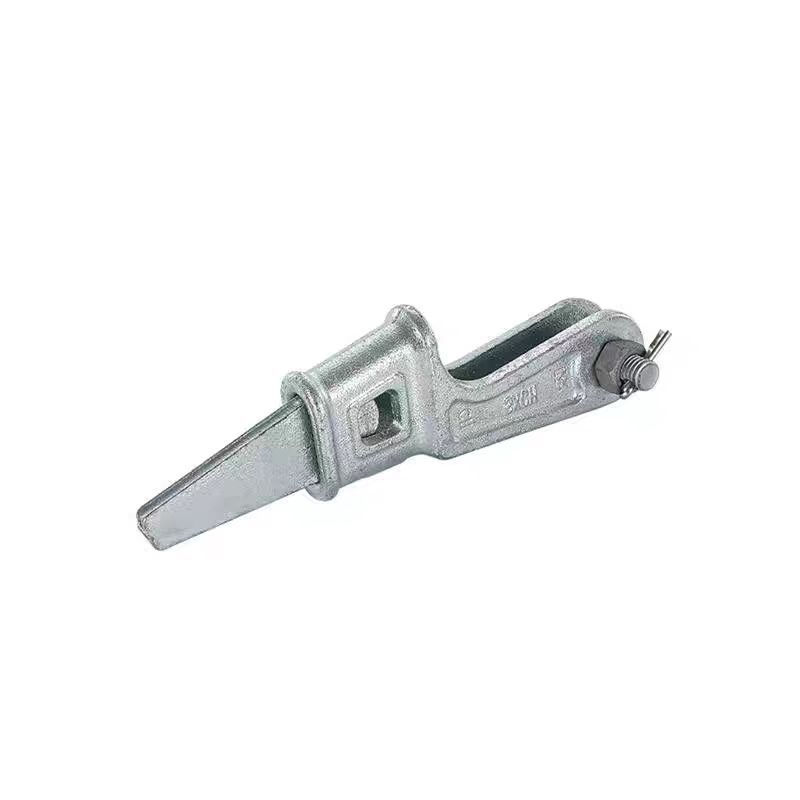

The wedge clamp is a connection and fixing device used in power lines and communication lines, mainly used for the connection, branching and terminal fixing of wires. It uses mechanical force to firmly clamp the wires through the design of the wedge structure to ensure the reliability and mechanical strength of the electrical connection.
Product Detail
Main features:
1. Simple structure: usually composed of wedge blocks, housings and bolts, etc., easy to install.
2. High reliability: The wedge structure can provide a stable clamping force to ensure that the wire will not loosen during long-term operation.
3. Wide range of applications: It can be used for wires of different specifications and is suitable for overhead lines, cable joints and other occasions.
4. Corrosion resistance: It is usually made of aluminum alloy or stainless steel and has good corrosion resistance.
Application scenarios:
Power lines: used for the connection, branching and terminal fixing of overhead lines.
Communication lines: used for the connection and fixing of optical fibers or cables.
Railway contact network: used for the fixing of wires in electrified railway contact networks.
Product Parameters
| Type | Applicable steel strand | Main dimensions （mm） | Destructive load (not less than, kN) | Weight （kg） | ||||
| type | Outer diameter （mm） | c | d | l | r | |||
| NX-1 | GL-25 | 6.6 | 18 | 16 | 150 | 6.0 | 45.0 | 1.2 |
| GJ-35 | 7.8 | |||||||
| NX-2 | GJ-50 | 9.0 | 20 | 18 | 180 | 7.3 | 88.0 | 1.8 |
| GJ-70 | 11.0 | |||||||
| LX-3 | GJ-100 | 13.0 | 24 | 24 | 200 | 7.3 | 143.0 | 3.2 |
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
