Product Detail

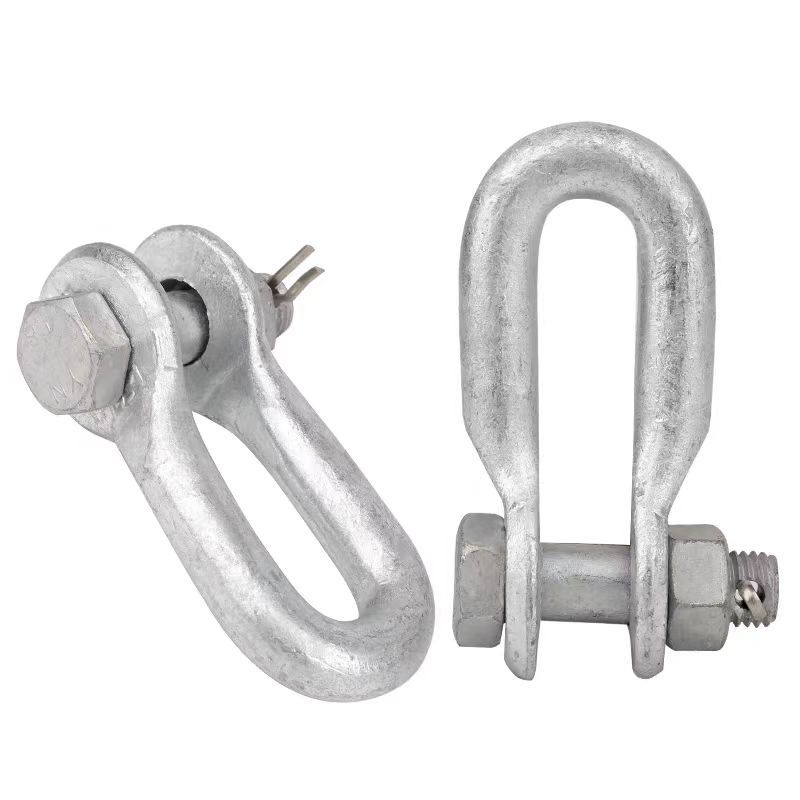

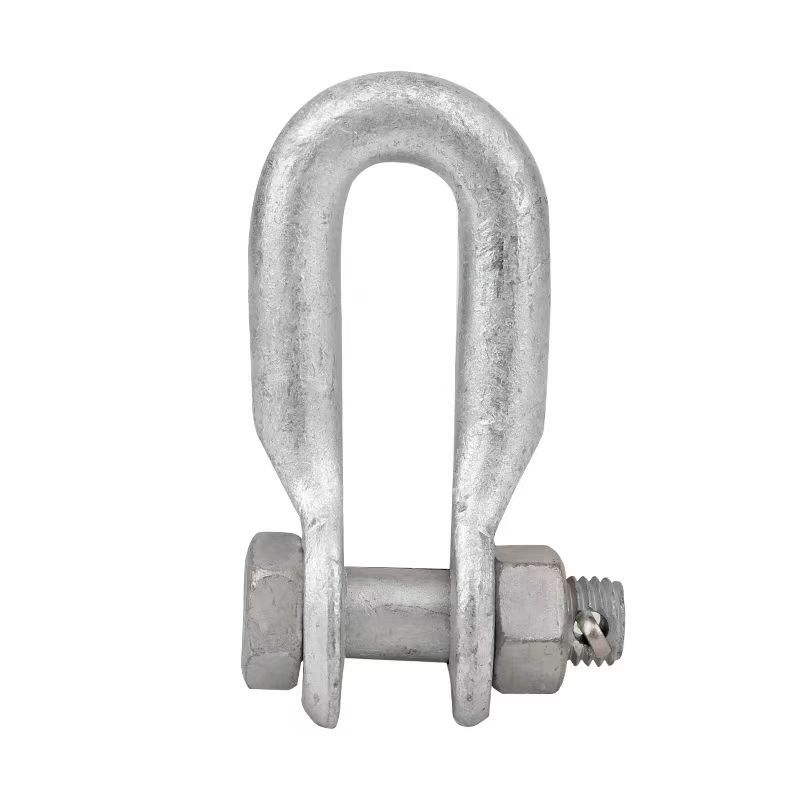

Models and specifications

Model naming rules: Starting with "U" or "UL", the number indicates the nominal breaking load (such as the breaking load of U-7 is 69kN).

Common models include U-7, U-10, U-16, etc., applicable to wire cross-sectional areas from 10mm² to 240mm², and the nominal breaking load range covers 70kN to 490kN.

-The main dimensional parameters include inner diameter (d), height (H), bending radius (R), etc. For example, the dimensions of U-7 are d=16mm and H=80mm.

Technical characteristics

Safety: The arc-shaped pressure strips and wear-resistant rings disperse the pressure, reduce local stress concentration, and avoid brittle fracture.

Buffer design: The patented technology uses pneumatic shock-absorbing mechanisms and spring components to achieve multi-stage buffering and enhance impact resistance.

Installation convenience: Bolts, nuts and closed pins are used to ensure a stable connection, and can be used in series to adapt to different scenarios.

Application scenarios of U-shaped hanging rings

1. Power line connection

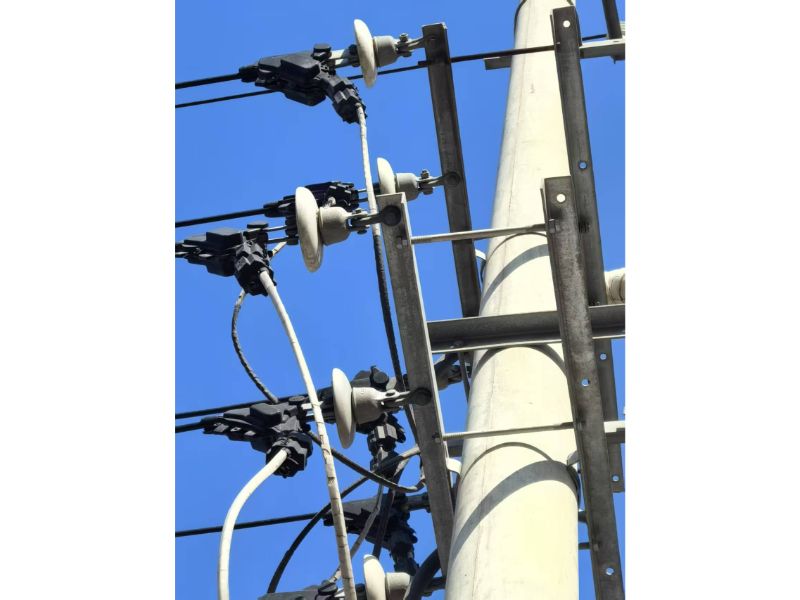

Used in overhead power lines and substations to connect insulator strings or steel strands with poles and towers to play a fixing and load-bearing role.

Used in conjunction with tension clamps, it is convenient for the construction of the first and last ends of cable erection and shortens the construction period.

2. Construction and maintenance

- During cable construction, the U-shaped hanging ring optimizes the tightening of the wire by adjusting the length, and it is necessary to install the safety bolt to prevent the bolt from loosening.

Suitable for lifting operations under high-voltage environments, its high load-bearing capacity and wear resistance can reduce safety accidents caused by equipment failure.

3. Special scene adaptation

The improved product can cope with complex loads (such as radial and longitudinal tension) and is suitable for power projects with complex terrain or harsh environments.

- Some models (such as UL type) are extended designs to adapt to insulators or hardware of different sizes.

Product Parameters


Type	Main dimensions (mm)					Nominal failure load (kN)	Weight (kg)
Type	C	D	M	R	H
U-7	20	16	16	22	80	70	0.52
U-10	22	18	18	24	85	100	0.73
U-12	24	20	22	30	90	120	1.01
U-16	26	22	24	32	95	160	1.4
U-21	30		27	36	100	210	2.12
U-25	34	26	30	40	110	250	3
U-30	38	30	36	46	130	300	4.33
U-50	44	36	42	55	150	500	7


Type	Main dimensions(mm)					Nominal failure load(kN)
	C	D	M	R	H
UL-12	34	16	20	25	81	70
UL-16	34	18	20	25	81	100
UL-20	34	20	22	30	90	120
UL-22	34	22	24	35	100	160
UL-26	34	26	27	40	110	210
UL-30	34	30	30	47	115	250
UL-34	36	34	30	53	120	320

FAQ

Can we print our trademark or company name on your product or package?

OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.

How does your company do in terms of quality control?

1) We choose all raw materials to be of high quality.

2) Professional and skilled workers pay attention to every detail in handling the production process.

3) The quality control department is specialized in quality inspection for each process.

How can I get samples to test your quality?

We can provide free samples for you to test and check, just bear the freight cost.

Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
