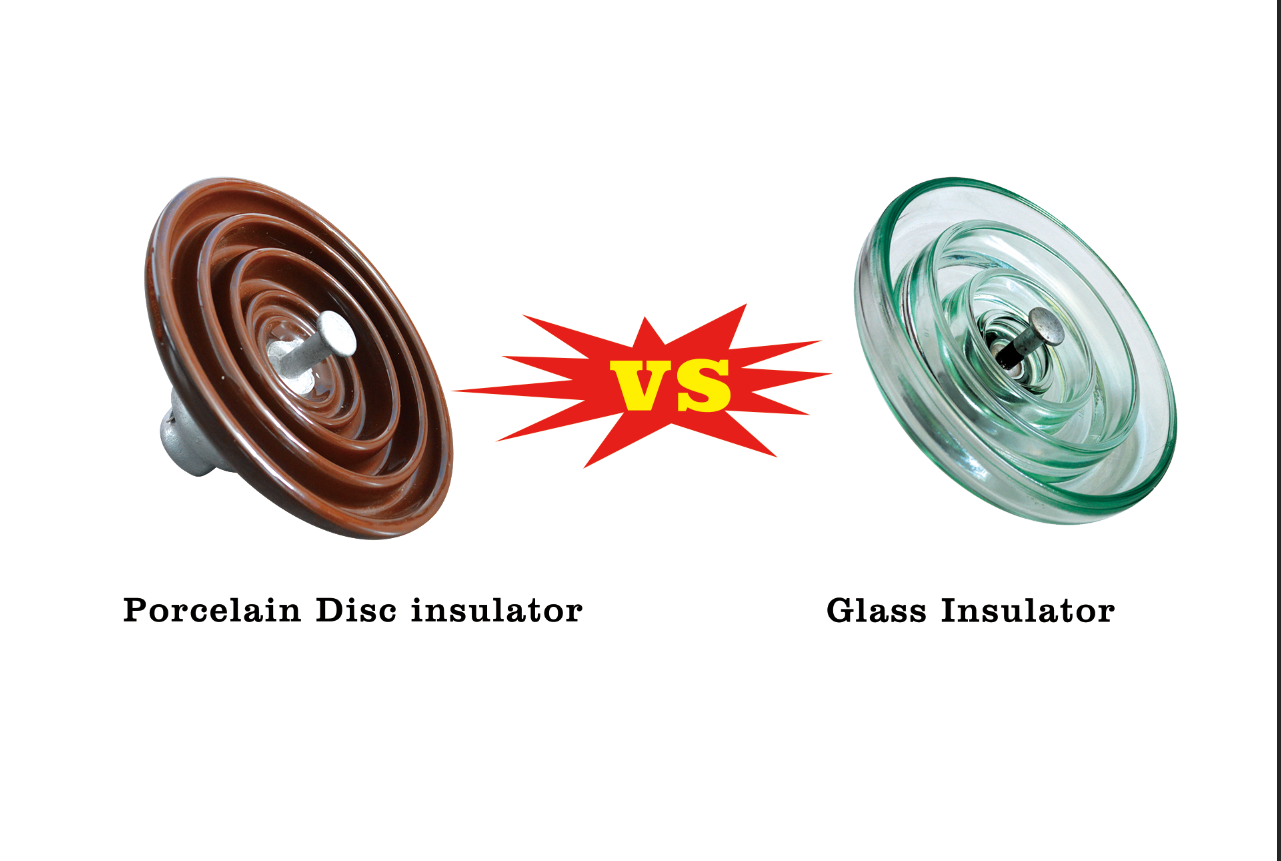

The difference between porcelain disc insulators and glass insulators
Glass insulators and porcelain insulators are both crucial components in power transmission and distribution systems, serving to support conductors and ensure electrical insulation.
Although their primary functions are similar, they exhibit significant differences in terms of materials, manufacturing processes, performance characteristics, and applicable scenarios:
1. core material
| Disc-shaped porcelain insulator | Glass insulator, glass insulator | |
| mechanical strength | It has high strength, but there may be minor defects inside, which may lead to brittle fracture under extreme stress | The overall strength is high and uniform, making it less prone to brittle fracture |
| Electrical performance | High dielectric strength and excellent insulation performance. | High dielectric strength, excellent and stable insulation performance. |
| Anti aging performance | It is relatively stable, but microcracks may occur in the ceramic body after long-term operation, and the insulation performance may gradually decline | It is highly stable, resistant to aging, and exhibits minimal performance degradation over long-term operation. |
| Pollution flashover resistance | The surface is relatively rough and prone to accumulation of dirt, especially in heavily polluted and high humidity environments, where the risk of pollution flashover is relatively high (requiring reliance on umbrella skirt design and regular cleaning) | The surface is smooth and dense, making it resistant to dirt accumulation. Additionally, it exhibits excellent rainwater washing performance and superior resistance to pollution flashover. |
| Zero/low value detection | Zero-value insulators (losing insulation capability) pose a major hazard: their appearance typically remains unchanged, and they can only be detected through regular power outages or live inspections (such as infrared temperature measurement, ultrasonic, electric field measurement, etc.). This process incurs high maintenance costs and may lead to missed inspections | Self-shattering property is its greatest advantage: when there are internal defects or severe deterioration, tempered glass will automatically shatter into small particles due to stress imbalance, making it easily detectable during patrol inspection without the need for specialized testing. |
| Weight | heavier | Lighter |
l Glass insulator: Molten glass is injected into molds for molding, followed by precise tempering treatment (rapid and uniform cooling). The process is relatively simple, with low energy consumption, high automation, and good batch consistency.
l Ceramic insulators: They require complex processes such as raw material preparation, blank making, drying, glazing, and high-temperature sintering (>1200°C). The process control requirements are high, energy consumption is high, and there may be slight differences between batches.
4、Maintenance and service life
l l Glass insulator:
l Low maintenance requirements: "Zero-value" issues are resolved through self-explosion, eliminating the need for specialized inspection.
l The surface is smooth and easy to clean (either by rainwater washing or simple sweeping).
l The main maintenance task involves replacing self-exploded insulators.
l Long lifespan: Tempered glass exhibits extremely stable performance, free from aging issues, and typically has a long design lifespan (e.g., over 30-40 years), often exceeding this figure in actual operation.
l Porcelain insulator:
l High maintenance requirements: Regular zero/low value detection and cleaning are necessary (especially in polluted areas), resulting in a large amount of maintenance work, high costs, and high risks.
l Lifespan: The design lifespan is also relatively long, but there is a risk of slow aging and unexpected brittle fracture after long-term operation.
5.Main application scenarios
l Glass insulators: Due to their excellent resistance to pollution flashover, maintenance-free nature (self-explosion is easy to detect), and long lifespan, they are widely used in transmission lines of various voltage levels (especially medium and high voltage) and under various environmental conditions (especially in polluted, humid, and rainy areas). They account for an increasingly higher proportion in new lines and renovation projects.
l Ceramic insulators: They are still widely used across various voltage levels, particularly in ultra-high voltage/extra-high voltage lines, where their high mechanical strength design and proven application experience serve as advantages.In DC transmission lines, they retain significant applications due to their relatively good resistance to ion migration.
Summary
l The core advantages of glass insulators lie in the maintenance benefits brought by "zero-value self-explosion", excellent resistance to pollution flashover, ultra-long stable lifespan, lighter weight, and lower manufacturing energy consumption. Their transparent appearance is also an easily identifiable feature.
l The core advantages of ceramic insulators lie in their mature application in the ultra/extra-high voltage field, design capability for extremely high mechanical strength, performance in DC lines, as well as long-term accumulated application experience and a large existing operational base. However, their main weaknesses are the difficulty in zero-value detection and high maintenance costs, and their relatively weak resistance to pollution flashover.
Which insulator should be chosen?
l The choice depends on specific engineering requirements: priority is given to low maintenance costs, high resistance to pollution flashover, and long lifespan, especially in polluted areas or areas where inspection is difficult: glass insulators are the preferred choice.
l For applications requiring extremely high mechanical strength design (such as large crossings and ultra-high voltage) or in DC lines, ceramic insulators may be more suitable or remain the mainstream.
l Cost (initial procurement, full lifecycle maintenance), local operational experience, design specifications, etc. are also important considerations.
