Zinc oxide arrester is a lightning protection device with superior protection performance, light weight, pollution resistance and stable performance. It mainly uses the good nonlinear volt-ampere characteristics of zinc oxide to make the current flowing through the arrester extremely small (microampere or milliampere level) at normal working voltage; when overvoltage acts, the resistance drops sharply, discharging the overvoltage energy to achieve the protection effect. The difference between this arrester and the traditional arrester is that it has no discharge gap, and uses the nonlinear characteristics of zinc oxide to play the role of current discharge and breaking.
Color: red, brown, gray or customer requirements;
Product Detail

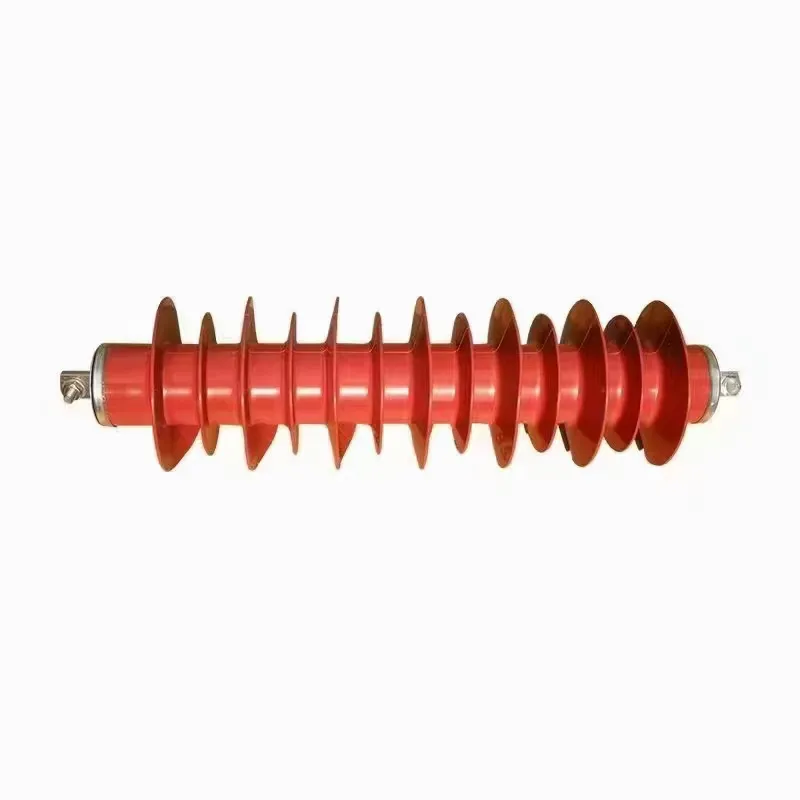

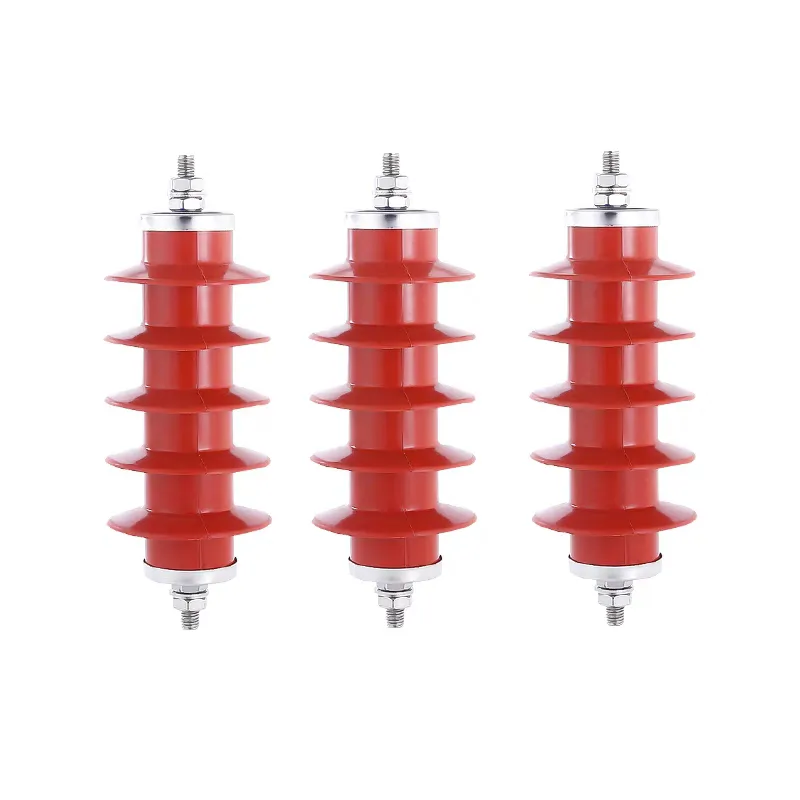

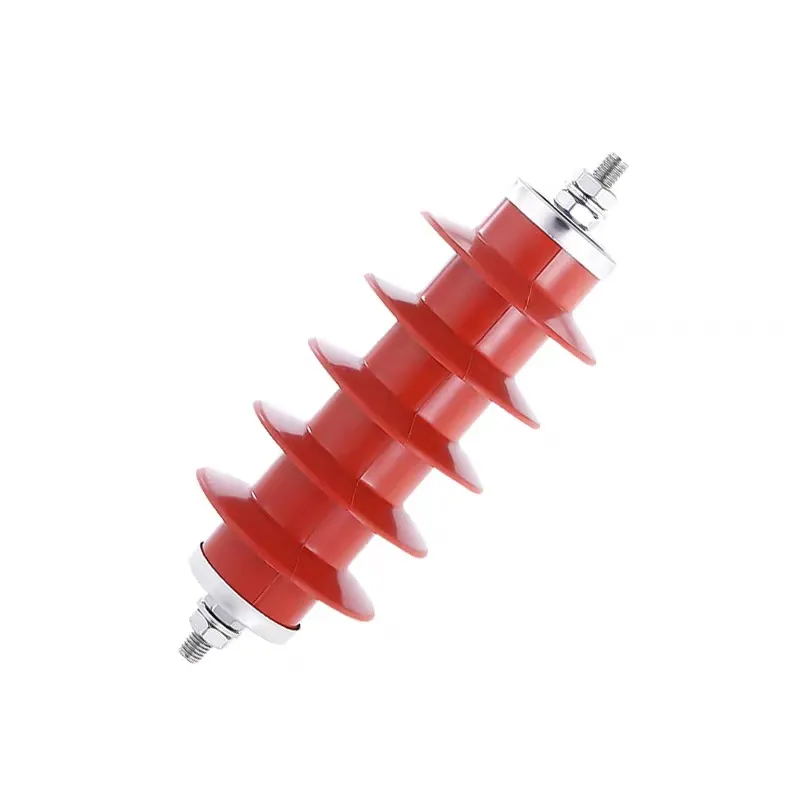

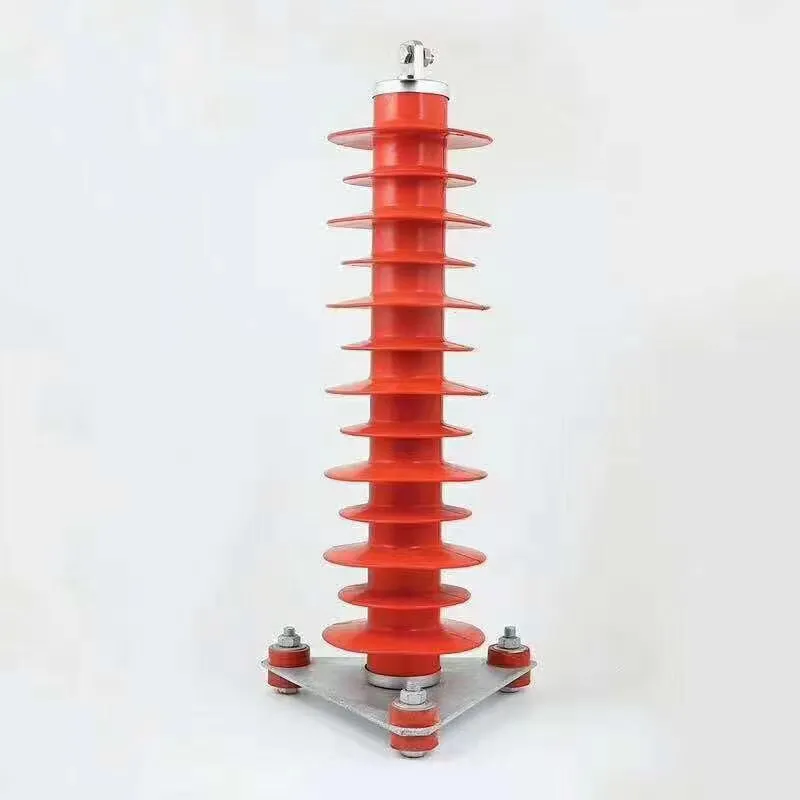

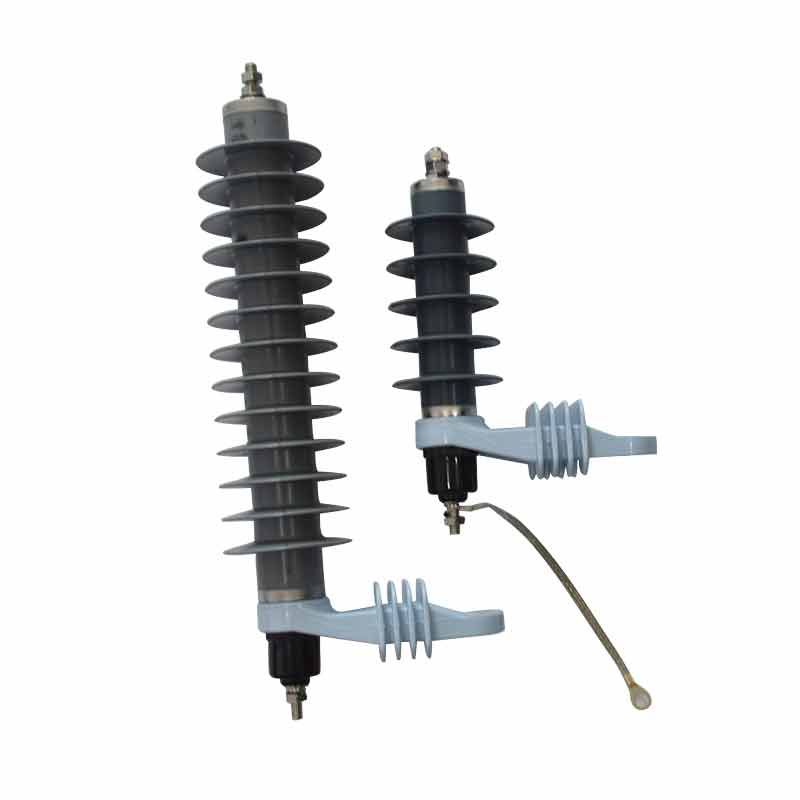

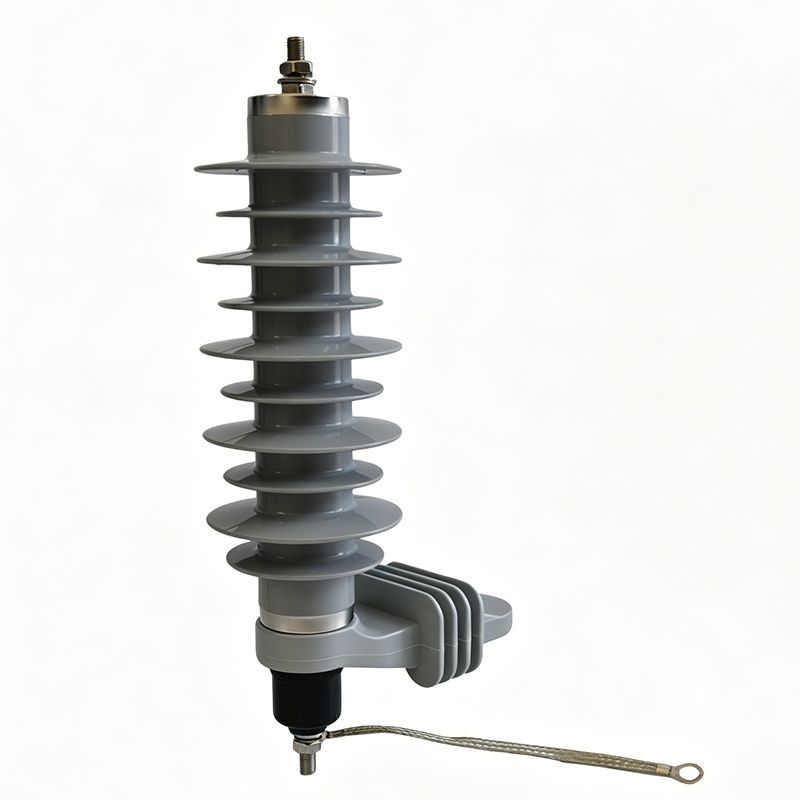

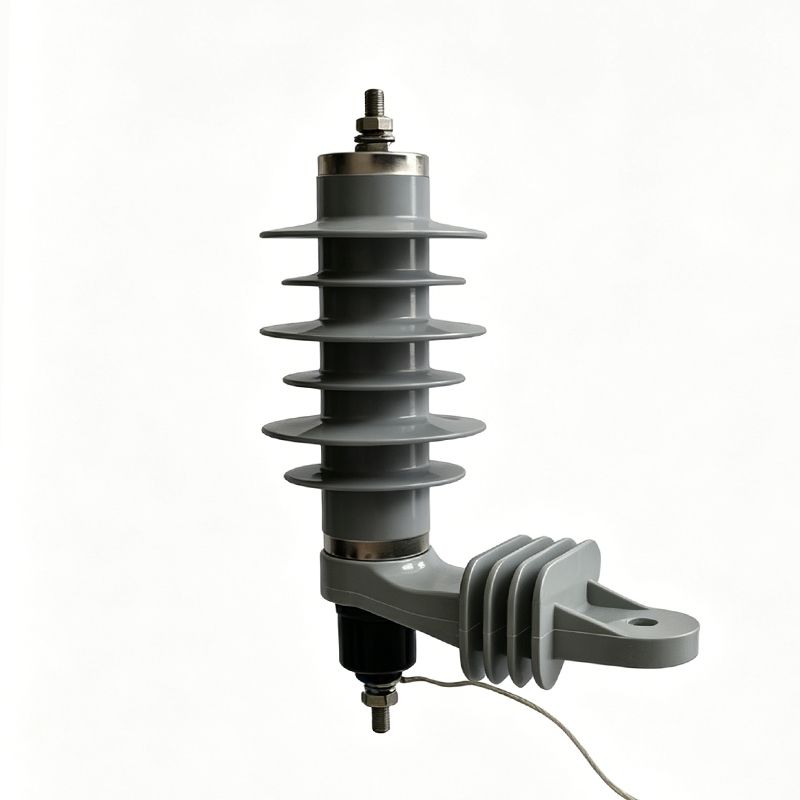

ZheXi Electric Power Technology Co., Ltd., as a leading Zinc Oxide Arrester Manufacturer, offers a state‑of‑the‑art ZnO Gapless Surge Arrester engineered for superior lightning protection in electrical systems. This gap‑free design employs zinc oxide's nonlinear volt‑ampere characteristics to maintain microampere/milliampere currents under normal voltages and sharply reduce resistance during overvoltage events for rapid surge energy discharge. Unlike traditional arresters with discharge gaps, ZheXi's ZnO Gapless Surge Arrester enhances reliability and longevity by eliminating mechanical spark gaps subject to wear.

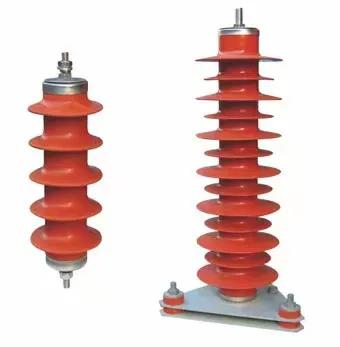

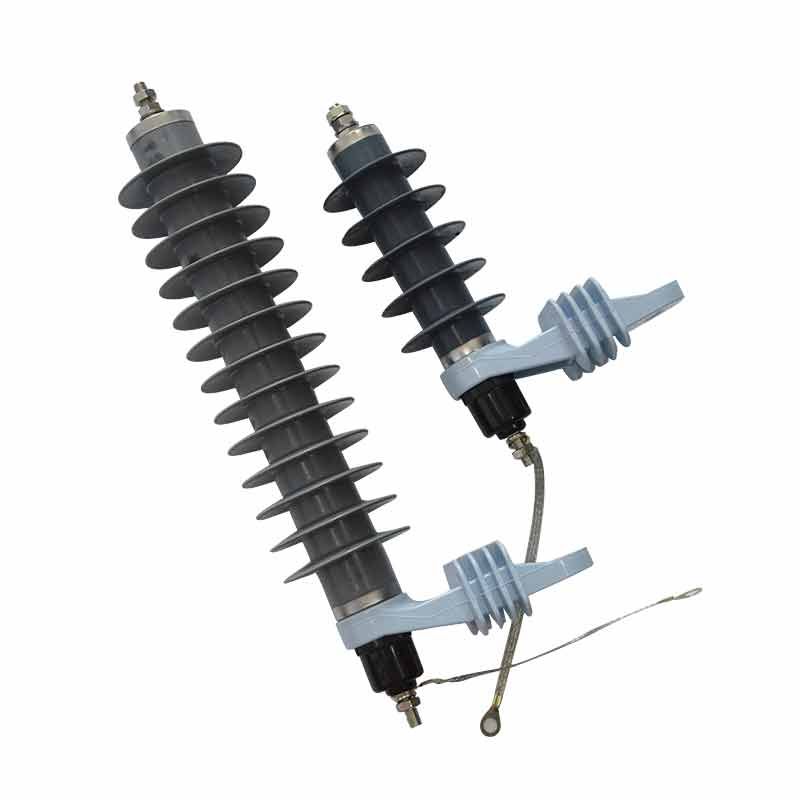

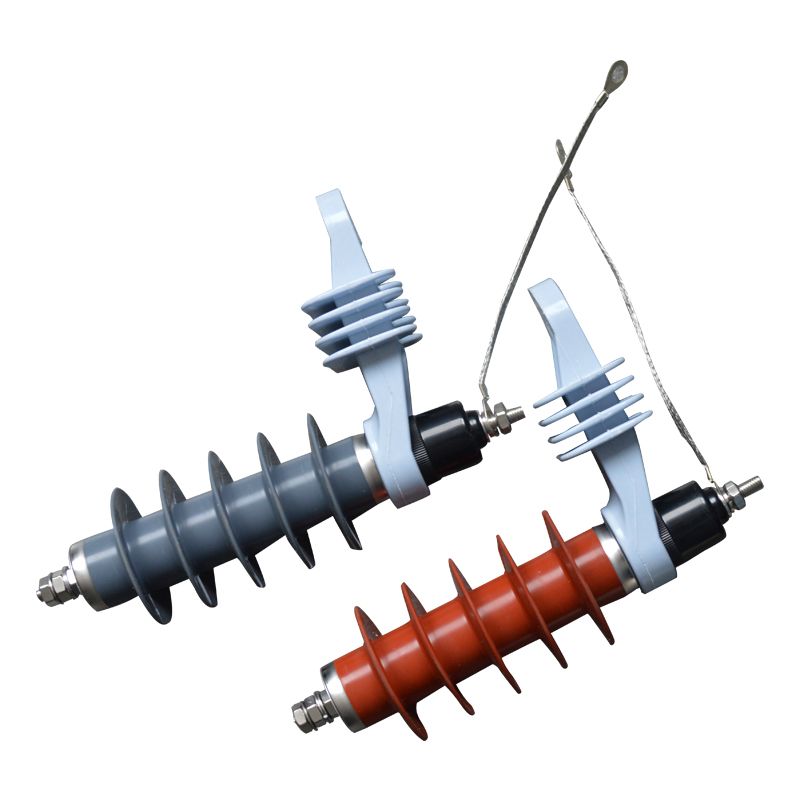

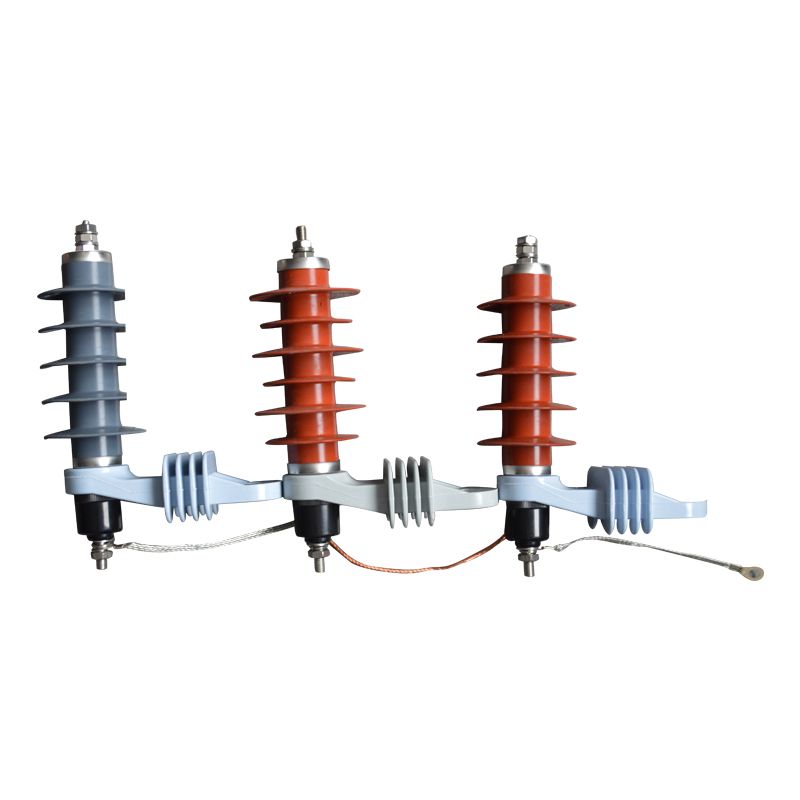

Available in standard red, brown, and gray hues—or custom colors—each unit features pollution‑resistant materials, lightweight construction, and consistent operation across diverse environments.
OEM/ODM Support: Tailored designs, private labeling, and packaging options.
Quality Assurance: High‑grade raw materials, skilled production teams, and multi‑stage QC inspections.
Technical Assistance: Expert guidance on selection, installation, and troubleshooting from our in‑house engineers.
Sample & After‑Sales Support: Free samples (freight covered by customer), warranty coverage, spare parts, and performance monitoring.
No Discharge Gap simplifies installation and maintenance while improving durability.
High Energy Handling: Zinc oxide varistor plates absorb and dissipate large surge currents with superior nonlinear characteristics.
Pollution Resistance: Ideal for coastal, industrial, and dusty environments due to corrosion‑resistant housing.
Stable Performance: Consistent protection even across wide temperature fluctuations (–40 °C to +70 °C).
Ease of Installation: Reduced structural load facilitates quick mounting near critical equipment.
Maintenance‑Free Operation: No discharge gaps to adjust or monitor.
Long Service Life: Durable materials and precision manufacturing ensure extended operational life.
OEM/ODM Flexibility: Customizable branding and packaging for Metal Oxide Lightig Arrester Wholesale partners.
ZheXi's surge arresters protect critical infrastructure, including:
Transmission lines, substations, and transformers — cost‑effective transformer lightning arrester price solutions for utilities.
Industrial plants, telecom towers, and renewable energy installations.
Railway networks and urban power distribution systems requiring reliable surge suppression.
For personalized recommendations or pricing details—whether you're evaluating transformer lightning arrester price options or exploring Metal Oxide Lightig Arrester Wholesale opportunities—consult the ZheXi team today to leverage the expertise and trustworthiness of every unit from this Zinc Oxide Arrester Manufacturer.
Product Parameters
| Type | MOA Rated Voltage | MCOV | Current lmpuIse Residual Voltage | 2ms Rectangularcurrent impulsewithstand | 4/10us High current impulsewithstand | ||
| 1/4usLightning current impulse | 8/20us Lightning current impulse | 30/60usSwitching currentimpulse | |||||
| KV(rms) | KV(rms) | KV(crest) | KV(crest) | KV(crest) | A | KA(crest) | |
| YH5W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 150 | 65 |
| YH5W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 150 | 65 |
| YH5W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 150 | 65 |
| YH5W-10 | 10 | 8.4 | 36 | 30 | 26.4 | 150 | 65 |
| YH5W-11 | 11 | 9.4 | 40 | 33 | 30 | 150 | 65 |
| YH5W-12 | 12 | 10.2 | 42.2 | 36 | 31.7 | 150 | 65 |
| YH5W.15 | 15 | 12.7 | 51 | 45 | 38.5 | 150 | 65 |
| YH5W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 150 | 65 |
| YH5W-21 | 21 | 17.0 | 71.8 | 63 | 54.2 | 150 | 65 |
| YH5W-24 | 24 | 19.5 | 82 | 72 | 62 | 150 | 65 |
| YH5W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 150 | 65 |
| YH5W-30 | 30 | 24.4 | 102 | 90 | 79 | 150 | 65 |
| YH5W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 150 | 65 |
| YH5W-36 | 36 | 29.0 | 123 | 108 | 92.4 | 150 | 65 |
| YH10W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 250 | 100 |
| YH10W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 250 | 100 |
| YH10W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 250 | 100 |
| YH10W-10 | 10 | 8.4 | 36 | 30 | 26.4 | 250 | 100 |
| YH10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 100 |
| YH10W-12 | 12 | 10.2 | 42.2 | 36 | 31.7 | 250 | 100 |
| YH10W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 250 | 100 |
| YH10W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 250 | 100 |
| YH10W-21 | 21 | 17.0 | 71.8 | 63 | 54.2 | 250 | 100 |
| YH10W-24 | 24 | 19.5 | 82 | 72 | 62 | 250 | 100 |
| YH10W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 250 | 100 |
| YH10W-30 | 30 | 24.4 | 102 | 90 | 79 | 250 | 100 |
| YH10W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 250 | 100 |
| YH10W-36 | 36 | 29.0 | 123 | 108 | 92.4 | 250 | 100 |
How To Choose, Install & Maintain
When choosing a Zinc Oxide Arrester Manufacturer's model (e.g., HY5WZ‑17/45, HY10W‑204/532), consider:
Rated Voltage (e.g., 17 kV, 204 kV) matching your system specifications.
Residual Voltage compatibility with protected equipment thresholds.
Nominal Discharge Current (5 kA, 10 kA) based on expected surge risks.
Creepage Distance (e.g., 50 mm/kV) for polluted or coastal environments.
Environmental Conditions, such as altitude, humidity, and pollution levels.
Follow IEC/local standards; mount vertically and secure to robust grounding systems.
Avoid mechanical stress and ensure proper torque on all connections.
Conduct Regular Inspections for cracks, corrosion, and pollutant buildup.

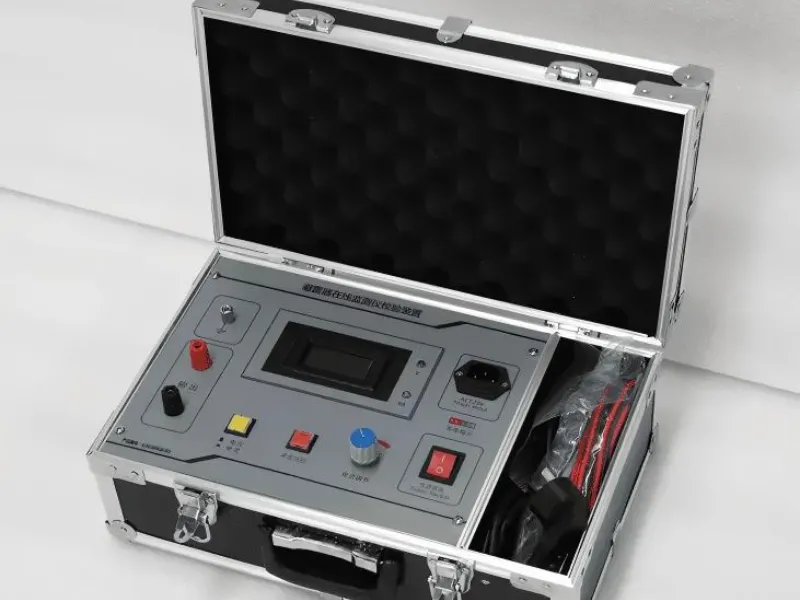

Monitor Leakage Current with diagnostic tools to detect early aging.
Perform Post‑Surge Checks: replace arresters after severe lightning events.

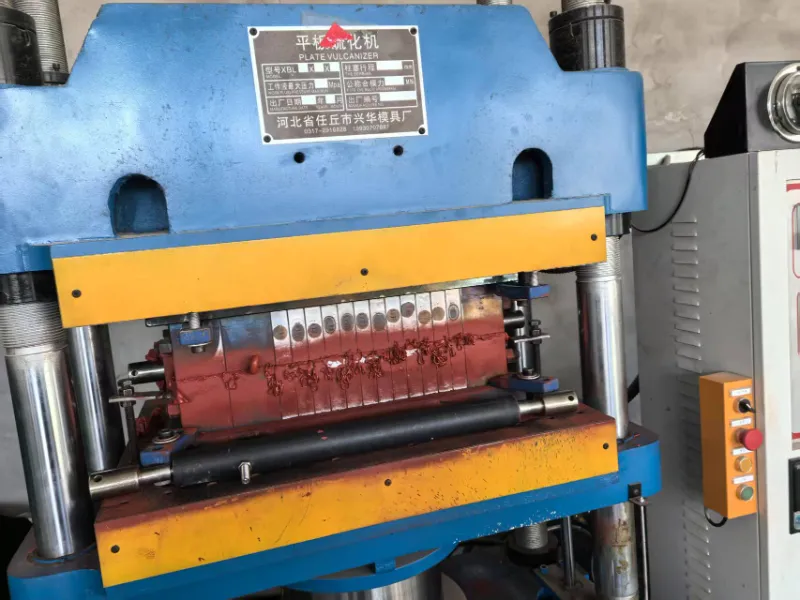

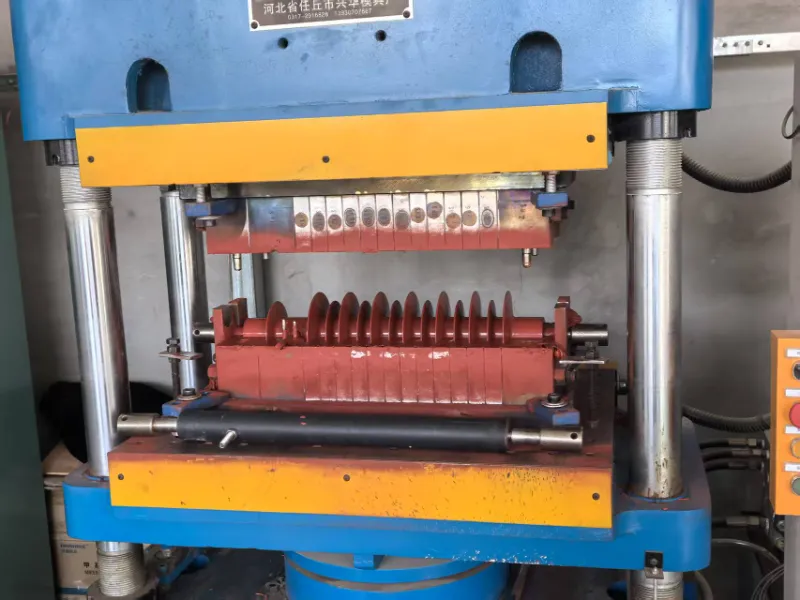

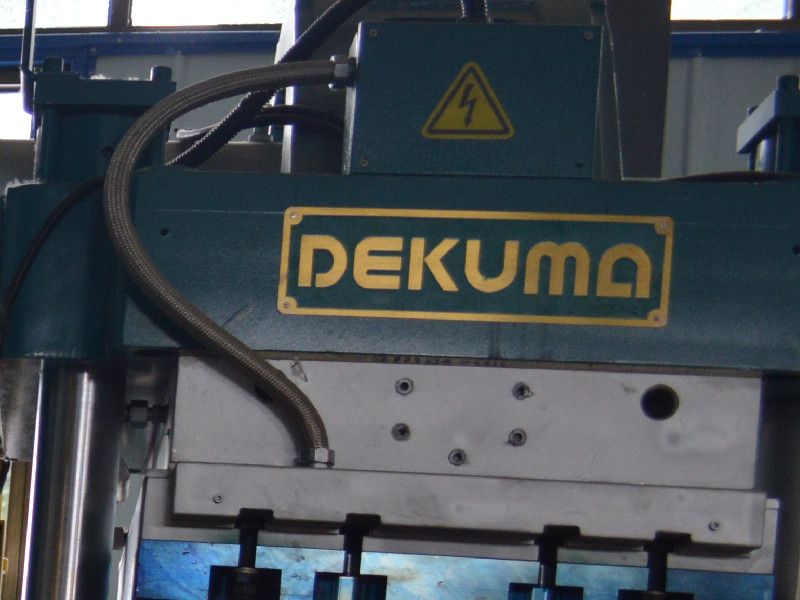

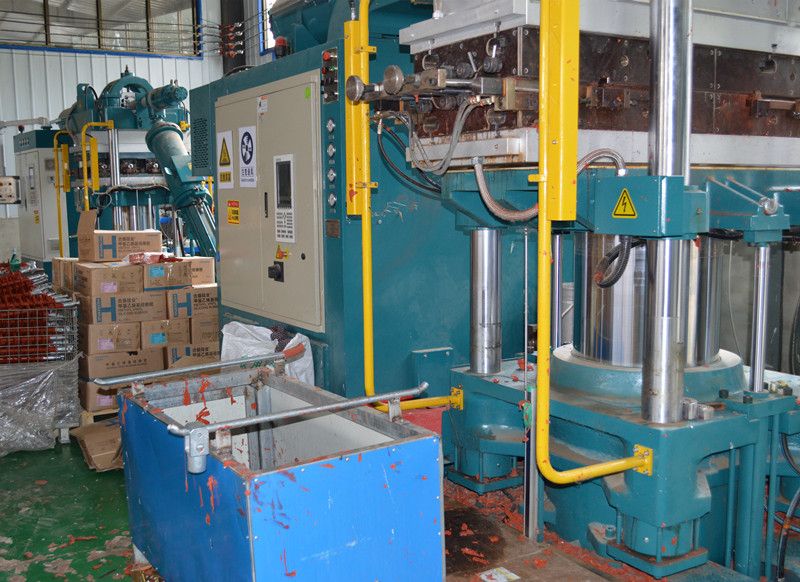

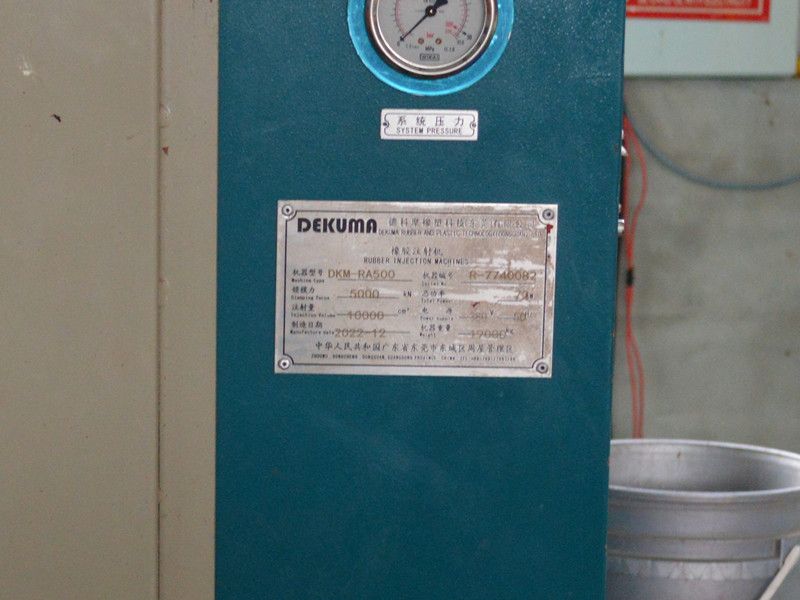

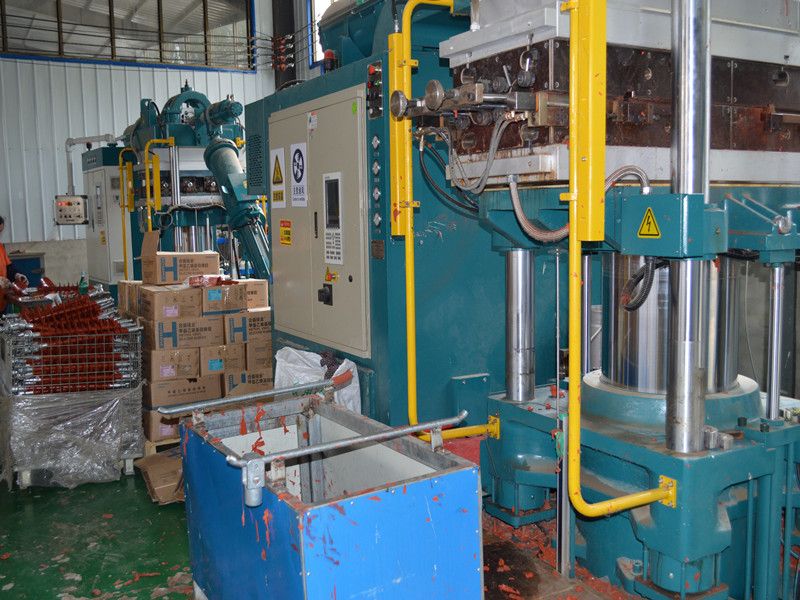

Our company utilizes the world's most advanced injection vulcanizing machine from the German brand DekoMo, imported from Germany, which offers higher efficiency and more stable quality
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
