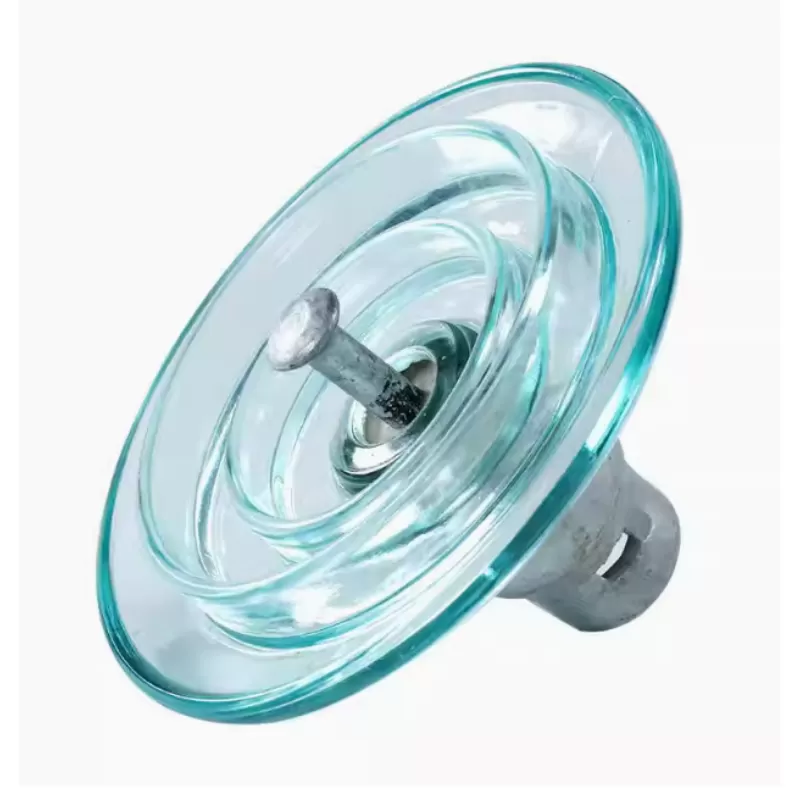

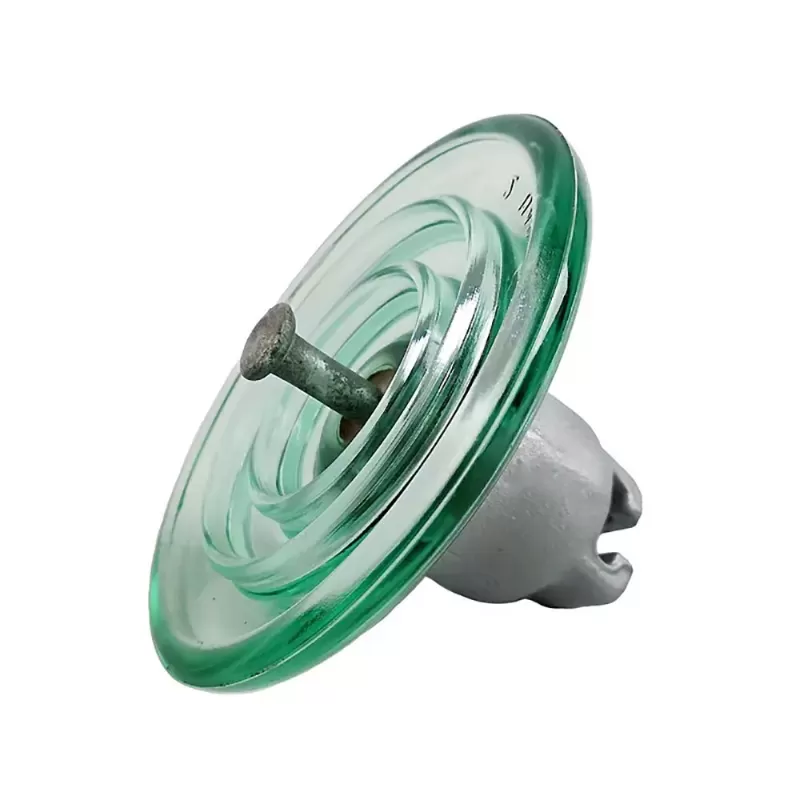

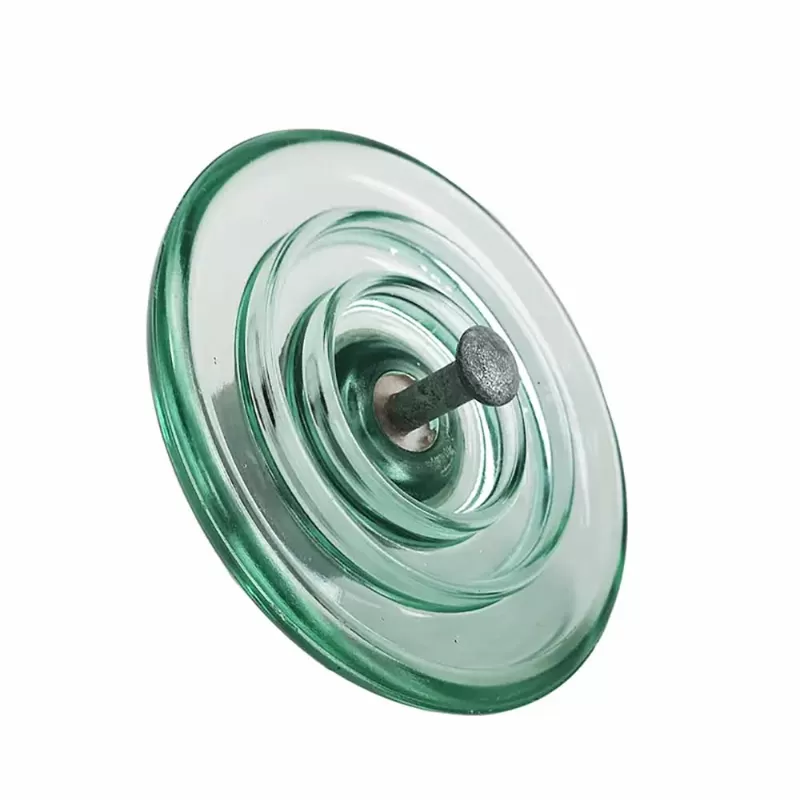

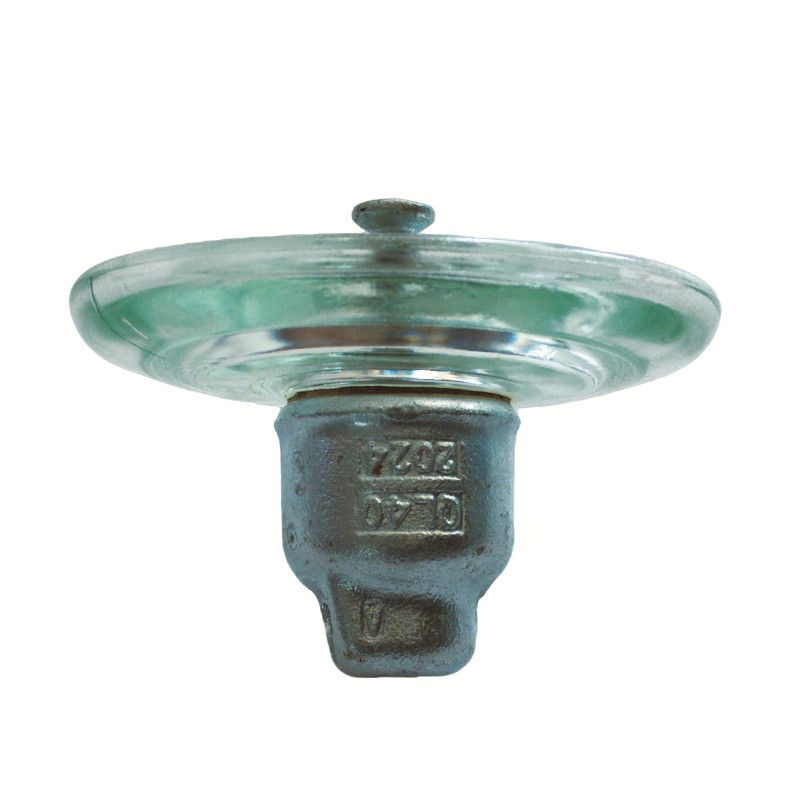

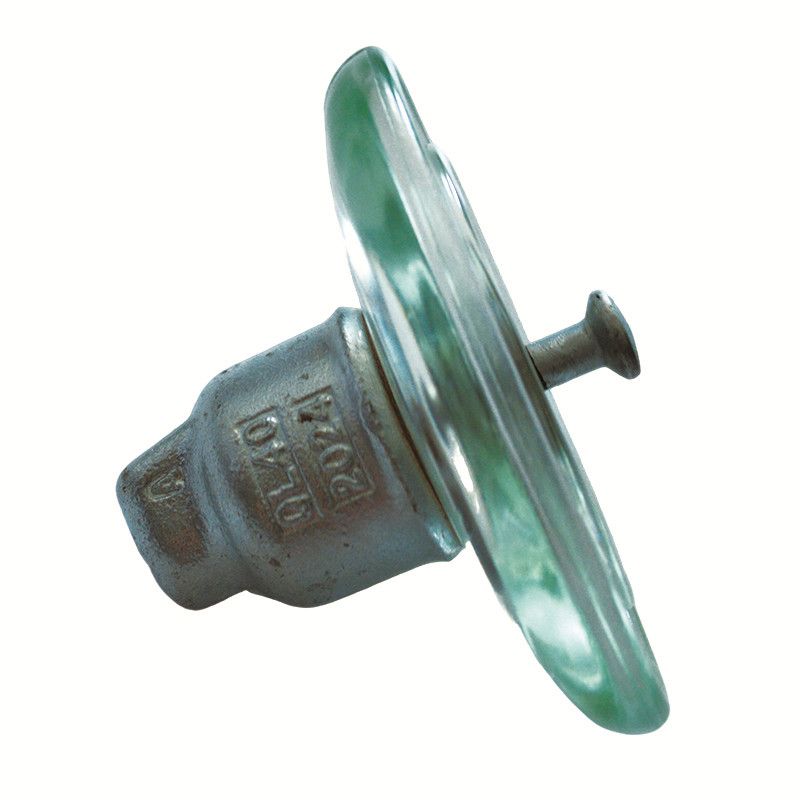

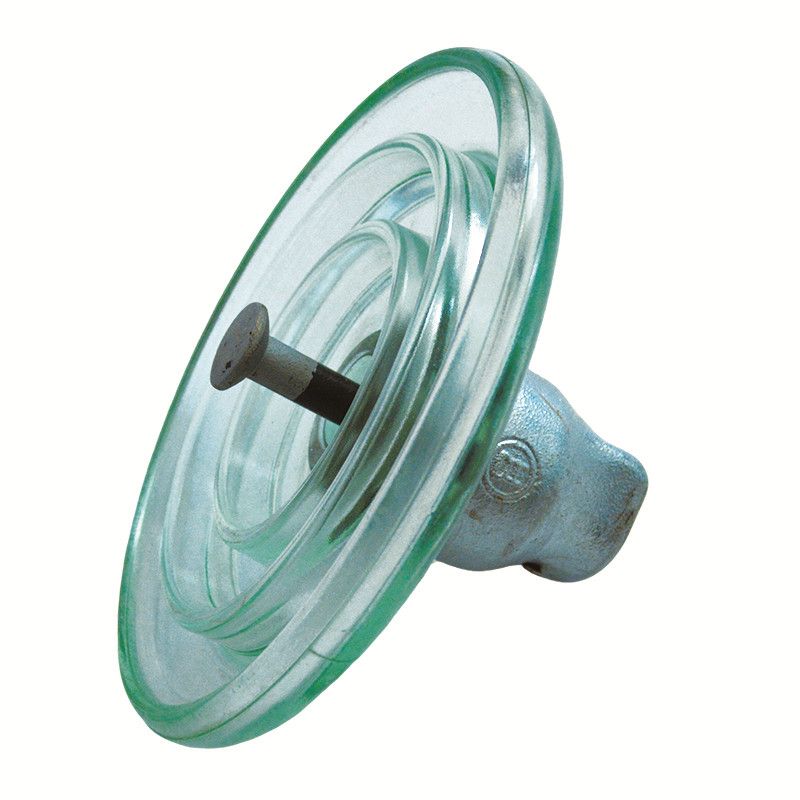

U40B is a glass suspension disc insulator designed in accordance with IEC standards, with a mechanical failure load of 40 kN. It is widely used in Central Asia and Russia.
Product Detail
Product Parameters

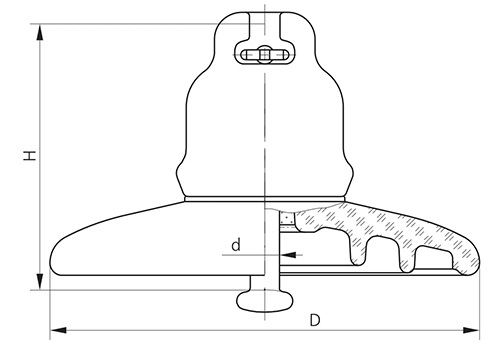

| Type | Nominal diameter （mm） | Structural height （mm） | Creepage distance （mm） | Connection Mark （mm） | Rated mechanical failure load（kN） | Power frequency wet withstand voltage （kV） | Lightning impulse withstand voltage （kV） | Weight of a single insulator（kg） |
| U40B/110 | 178 | 110 | 185 | 11 | 40 | 25 | 50 | 2.1 |
| U40BP/110 | 178 | 110 | 300 | 11 | 40 | 24 | 60 | 2.5 |
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
