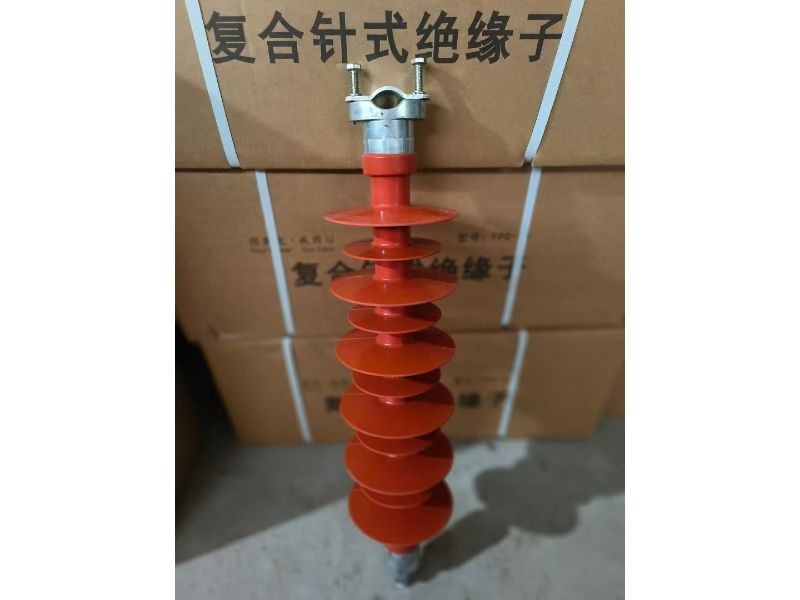

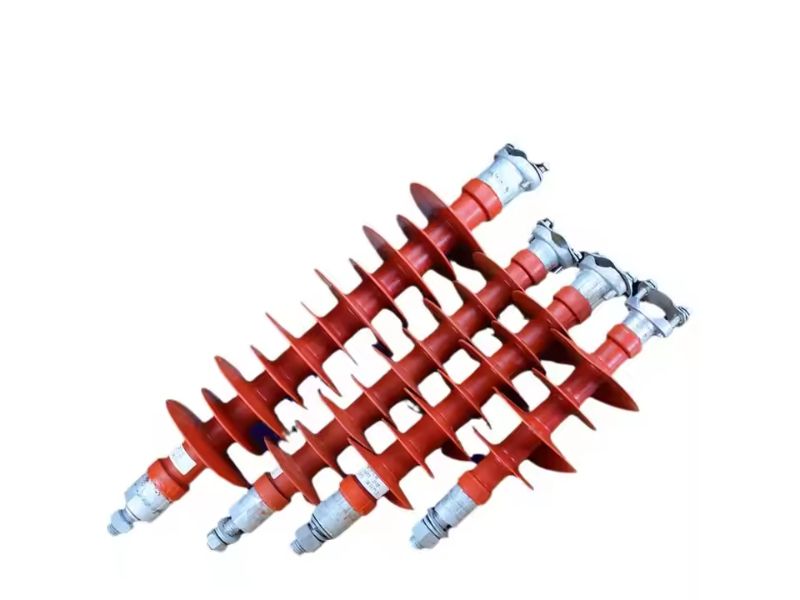

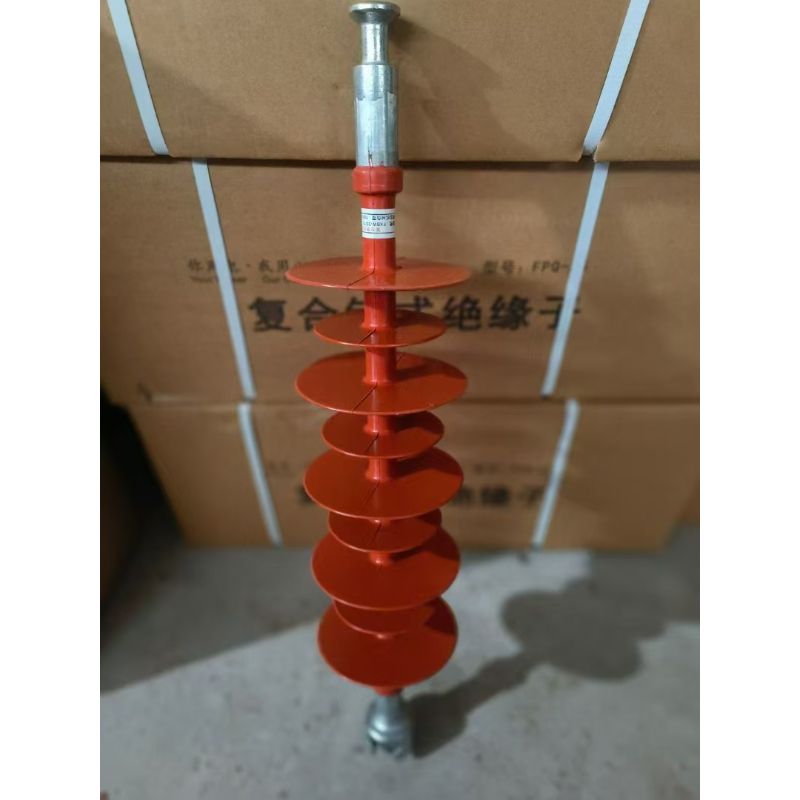

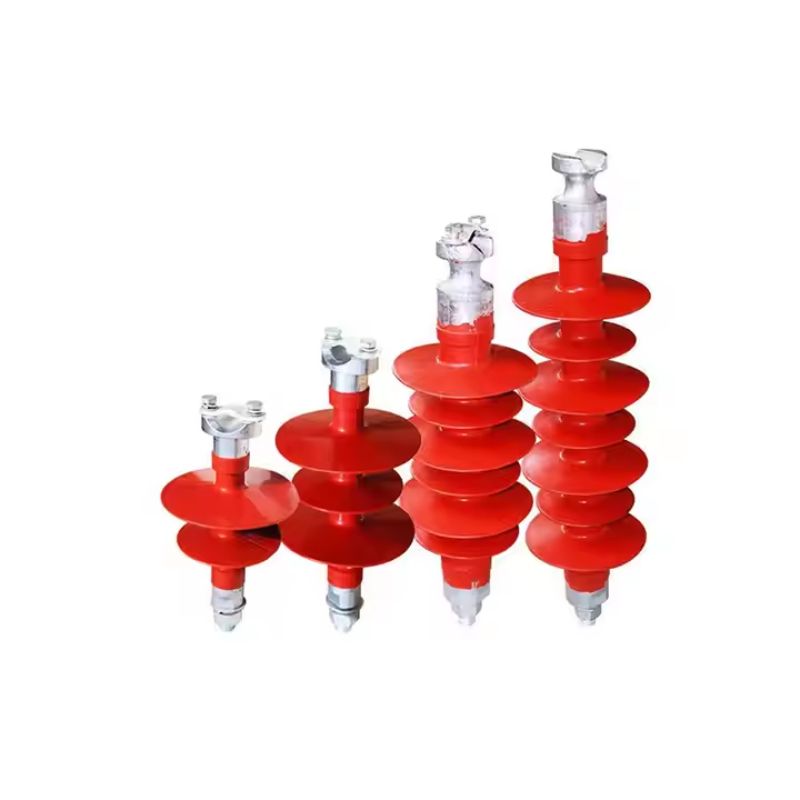

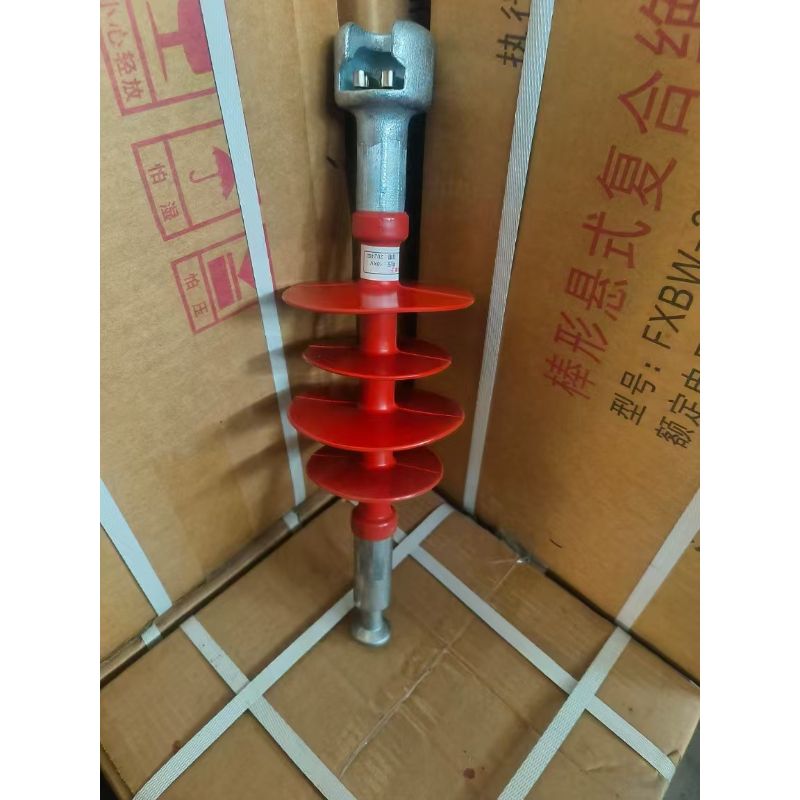

Pin-type composite insulators use silicone rubber as raw material, and the product is formed in one step by high-temperature integral molding.
Features of pin-type composite insulators: light weight, convenient construction, greatly speeding up the construction process, superior product performance, and strong anti-puncture ability.
Use: fixed to the iron crossarm to support the conductor, providing mechanical load and insulation;
Color: red, brown, gray or customer requirements;
Product Parameters

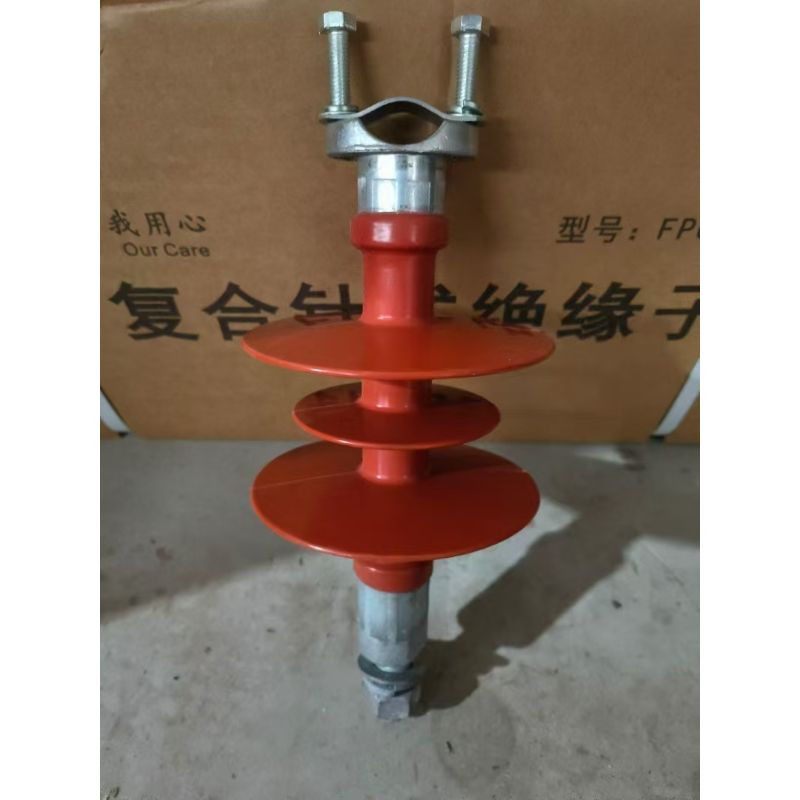

| Rated voltage（kV） | Type | Structural height（mm） | Dry arc distance（mm） | Creepage distance （mm） | Rated bending load（kN） | Rated tensile load（kN） | Lightning full-wave impulse withstand voltage（kV） | Power frequency withstand voltage（kV） | |
| 10 | FZS-10/5 | 215 | 125 | 290 | 5 | 70 | 75 | 35 | 28 |
| 35 | FZS-35/5 | 620 | 480 | 1200 | 5 | 70 | 265 | 125 | 100 |
| 35 | FZS-35/8 | 620 | 480 | 1200 | 8 | 70 | 265 | 125 | 100 |
| 66 | FZS-66/5 | 830 | 630 | 1800 | 5 | 70 | 410 | 230 | 185 |
| 66 | FZS-66/8 | 830 | 630 | 1800 | 8 | 70 | 410 | 230 | 185 |
| 110 | FZS-110/5 | 1270 | 1025 | 2900 | 5 | 70 | 550 | 285 | 230 |
| 110 | FZS-110/10 | 1270 | 1025 | 2900 | 10 | 70 | 550 | 285 | 230 |
| 10 | FPQ—10/3 | 285 | 205 | 450 | 3 | 10 | 110 | 50 | 40 |
| 10 | FPQ—10/5 | 285 | 205 | 450 | 5 | 10 | 110 | 50 | 40 |
Order information: ① Voltage level; ② Rated mechanical load; ③ Creepage distance; ④ Power frequency withstand voltage; ⑤ Lightning full wave impulse withstand voltage; ⑥ Insulation distance; ⑦ Connection method | |||||||||
