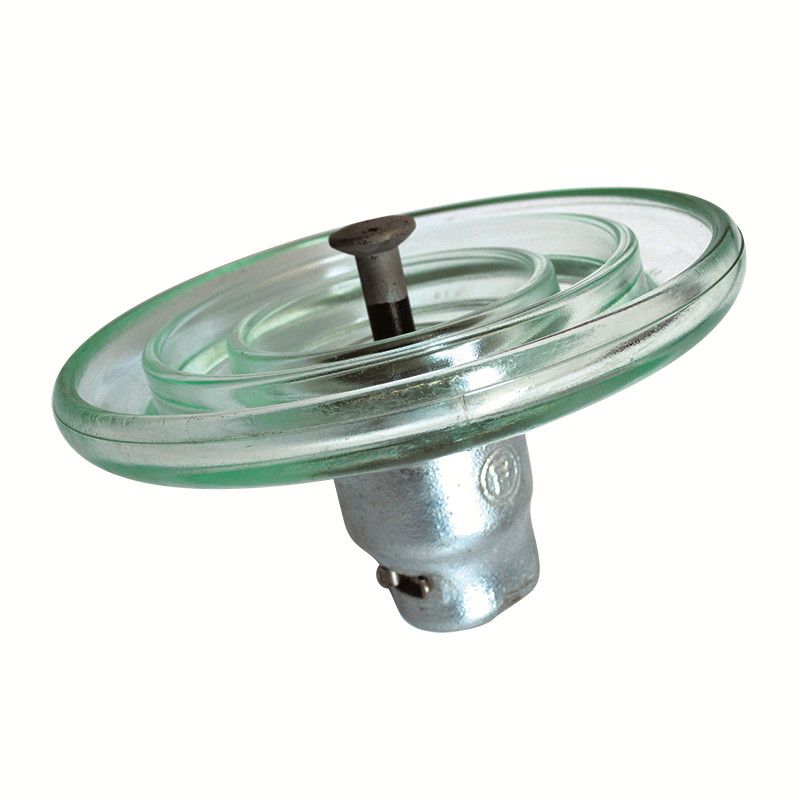

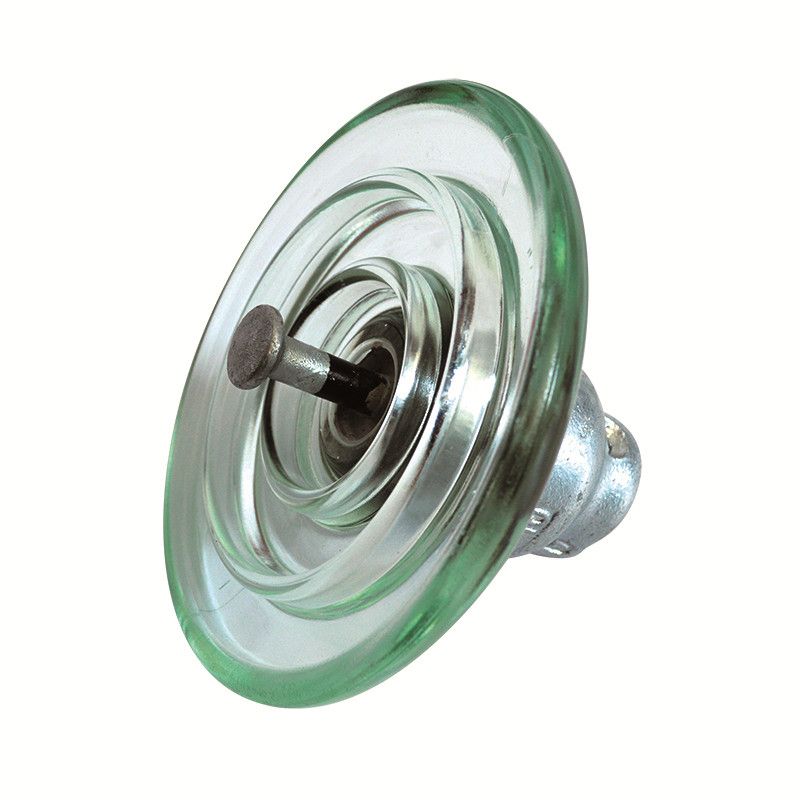

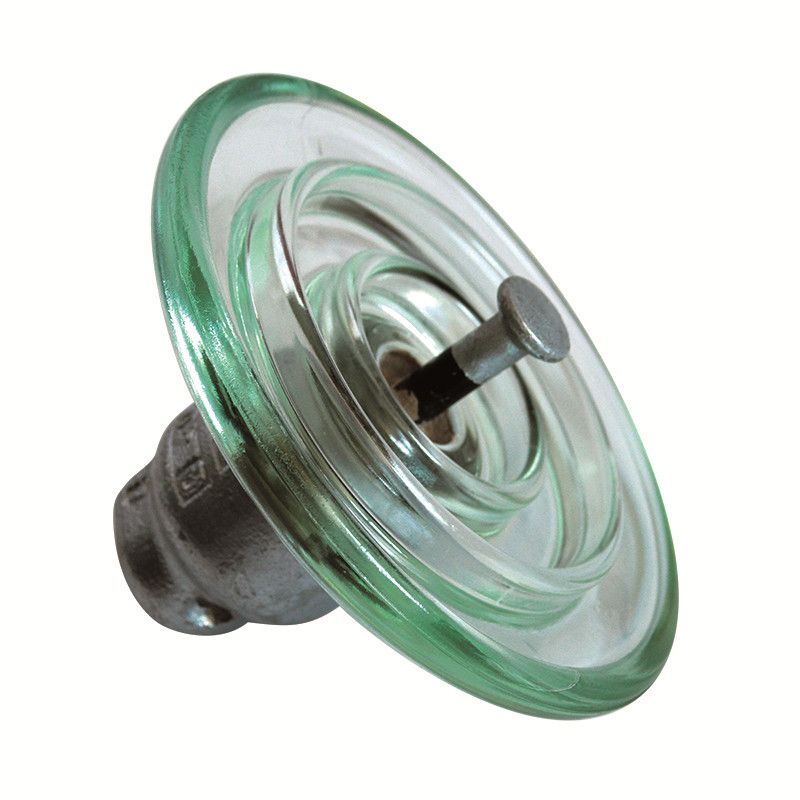

CTV 175 tempered glass insulators are widely used in 10kV to 66kV transmission lines. They have a nominal diameter of 175mm, a height of 110mm, a creepage distance of 185mm, a coupling size of 11A (11mm), and a minimum mechanical damage load of 40kN. The weight of the insulator is approximately 1.7kg.In certain markets, the CTV 175 tempered glass insulator is also referred to as the U40B glass insulator. It is popular in North Africa, particularly in Algeria.
Product Detail

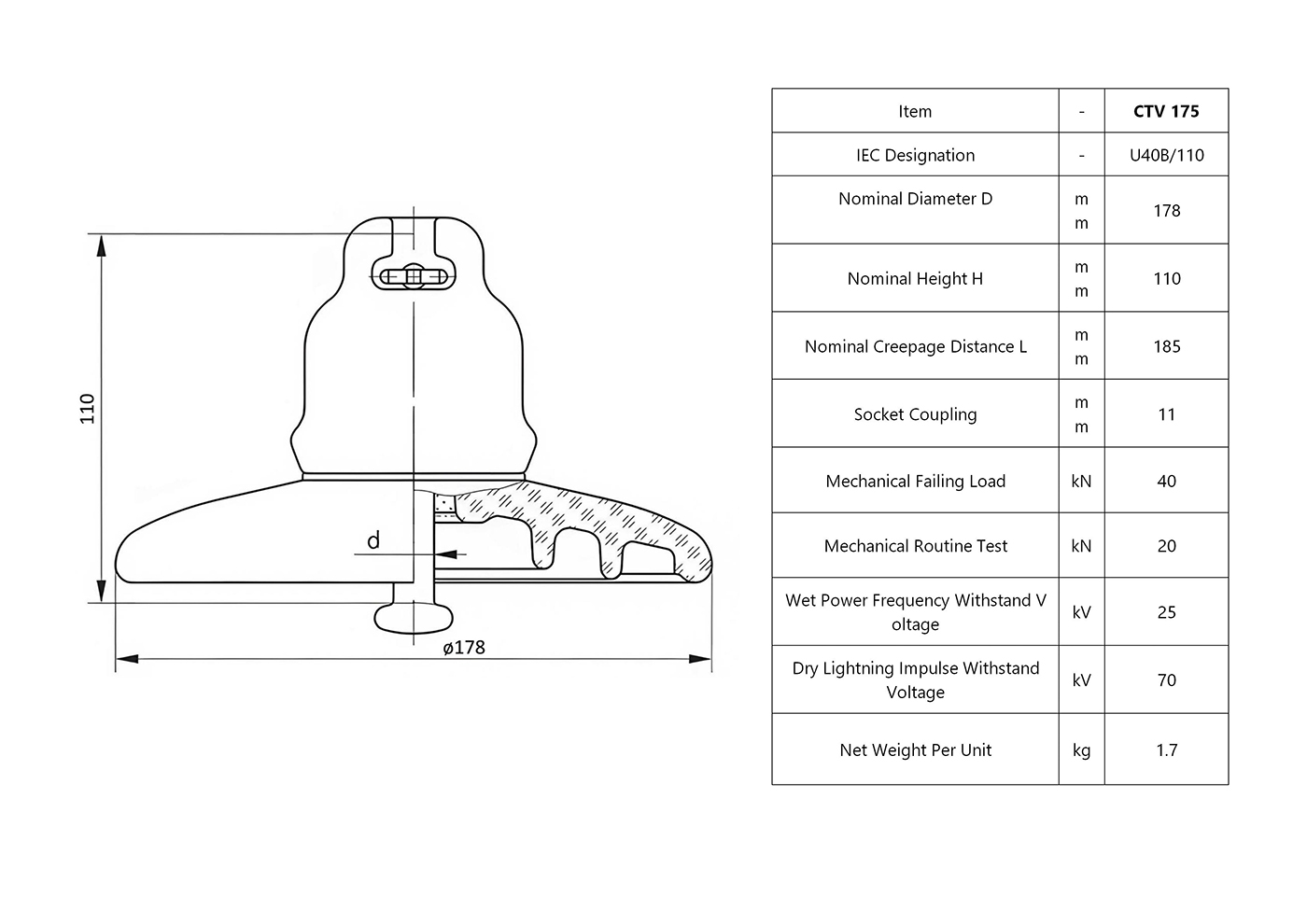

Product Parameters
| Type | CTV175 |
| Référence normative | U40B |
| Verre | Verre trempé |
| Capot | Fonte malléable |
| Tige | Acier forgé |
| Goupille | Acier inoxydable |
| Charge de rupture | 4000 daN |
| Charge de travail | 3200 daN |
| Diamètre de l’isolateur | 175 mm |
| Pas de l’isolateur | 110 mm |
| Norme couplage | Norme 11 |
| Ligne de fuite | 185 mm |
| Poids approximatif | 1.7 kg |
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
