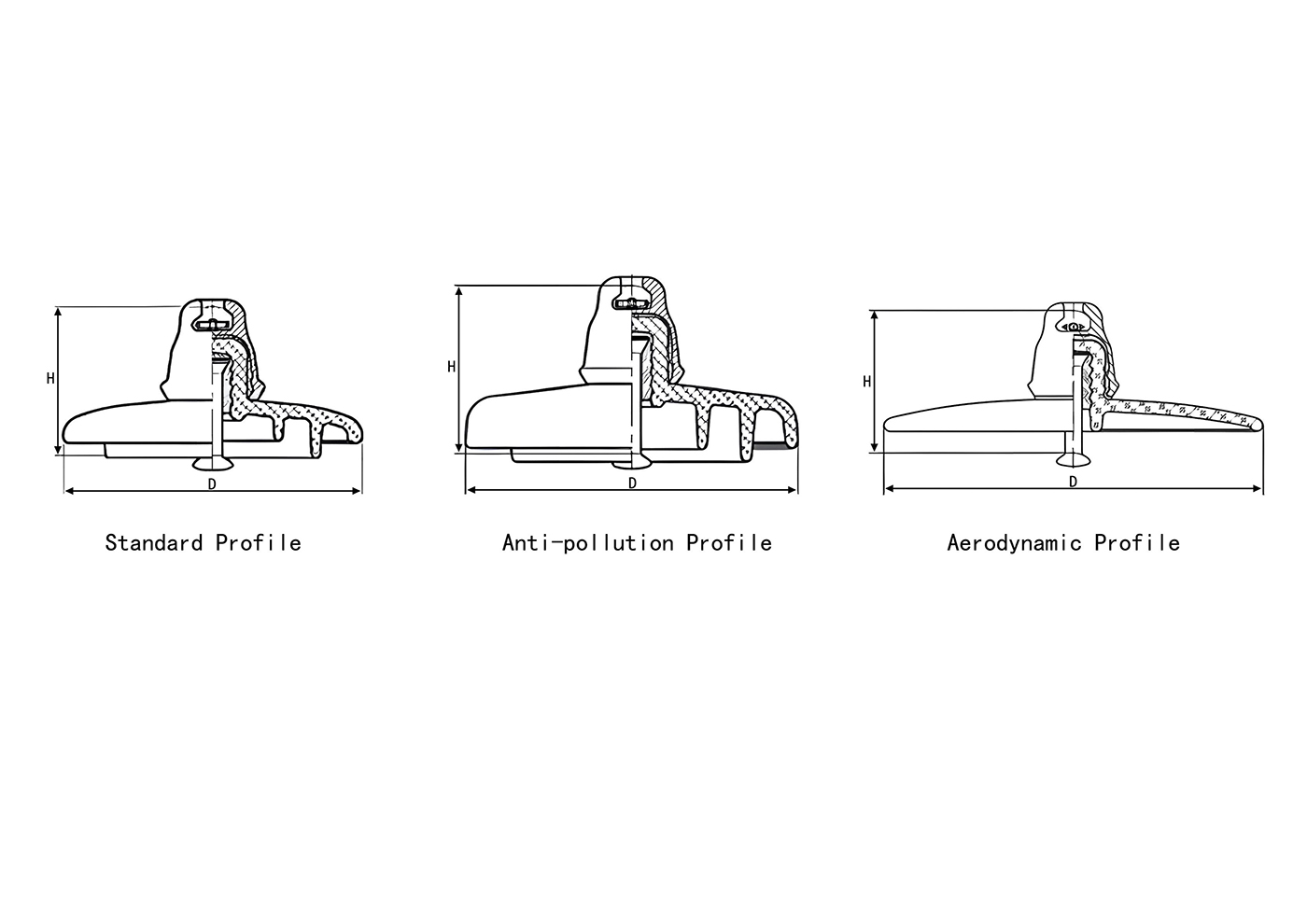

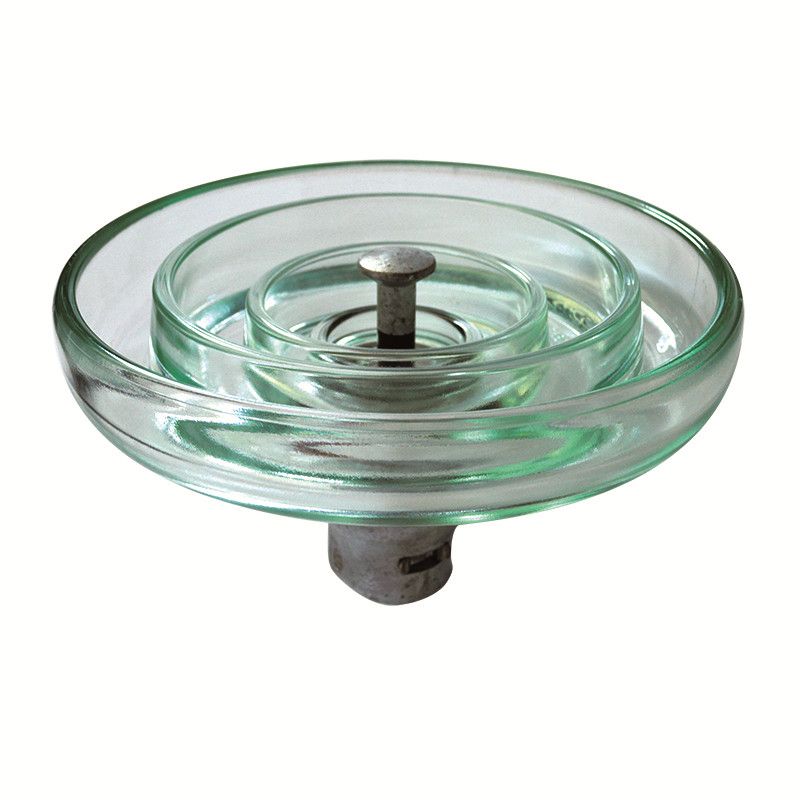

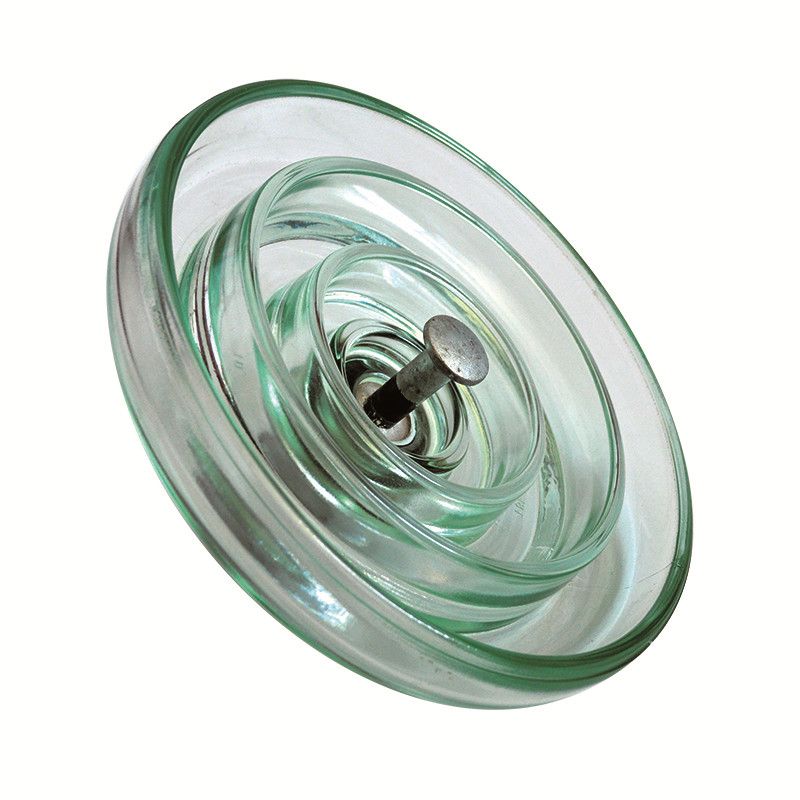

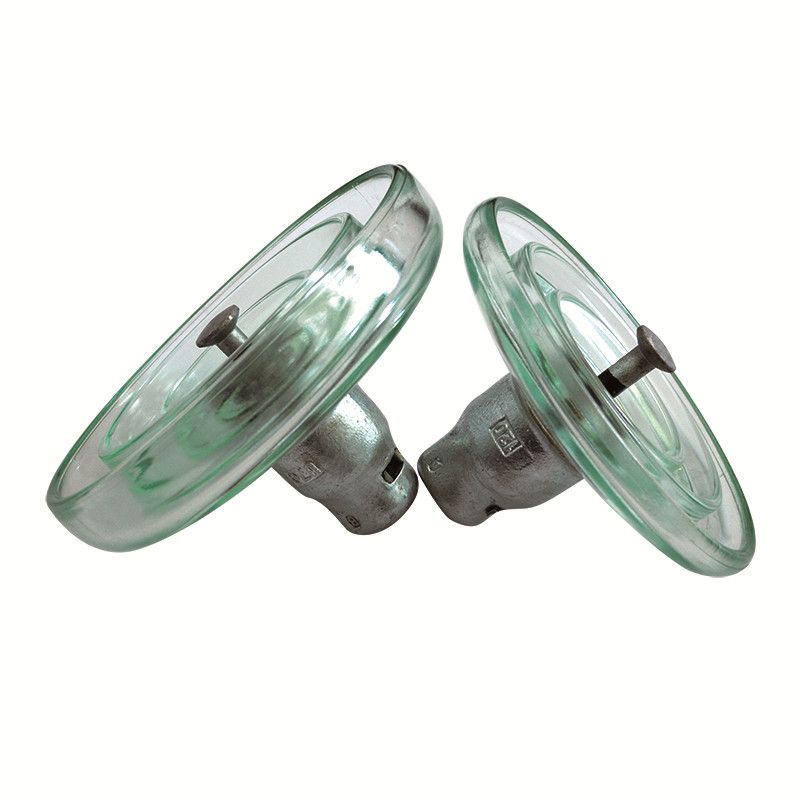

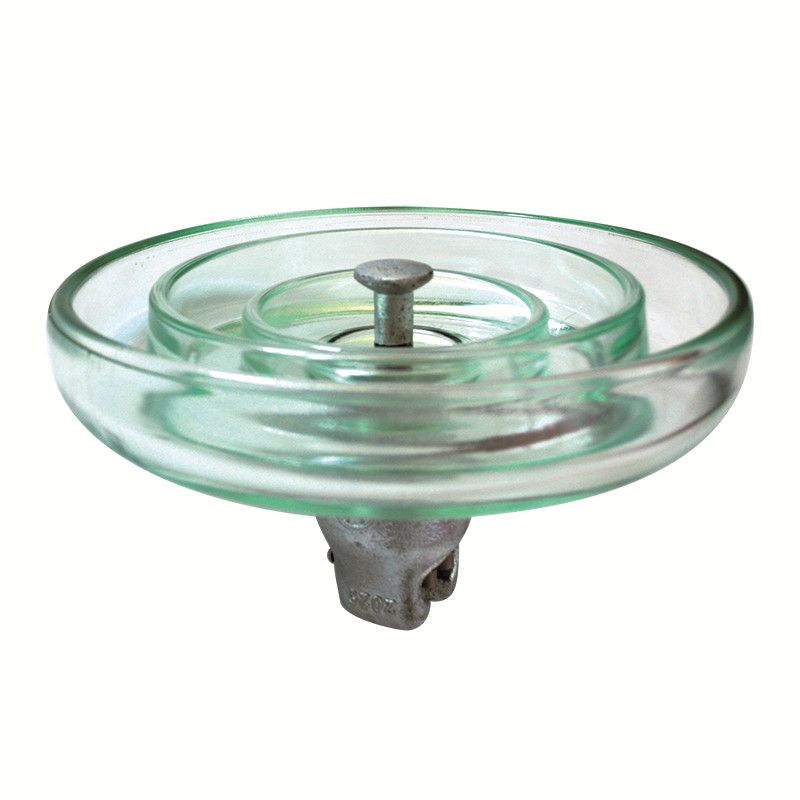

U120B glass insulator is a type of disc insulator with a minimum mechanical breaking load of 120kN. Multiple U120B glass insulators can be connected in series to form a suspension insulator string, making them suitable for high-voltage transmission lines up to 330kV.Depending on the installation environment, U120B glass insulators are available in three types: standard profile, anti-pollution profile, and aerodynamic profile, each designed to meet specific performance requirements under different conditions.
Product Detail
Product Parameters
| Glass insulator types | IEC class | Minimum mechanical failing load (kN) | Nominal diameter D(mm) | Nominal spacing H(mm) | Nominal creepage distance(mm) | Standard coupling/PIN | One by one tensile load test | Wet power frequency withstand voltage (kV) | Dry lightning impulse withstand voltage (kV) | Net weight (kg) |
| Standard profile | U120B U120B/127 | 120 | 255 | 127 | 320 | 16 | 60 | 40 | 100 | 3.9 |
| U120B U120B/146 | 120 | 255 | 146 | 320 | 16 | 60 | 40 | 100 | 4.2 | |
| Fog type | U120BP/146 | 120 | 255 | 146 | 400 | 16 | 60 | 45 | 110 | 5.3 |
| U120BLP U120BP/146 | 120 | 280 | 146 | 450 | 16 | 60 | 50 | 125 | 6.0 | |
| U120BP/146 | 120 | 320 | 146 | 550 | 16 | 60 | 55 | 140 | 8.3 | |
| Aerodynamic profile | U120BP/127M | 120 | 380 | 127 | 365 | 16 | 60 | 45 | 90 | 6.3 |
| U120BP/146M | 120 | 380 | 146 | 365 | 16 | 60 | 45 | 90 | 6.3 |
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
