33kv Drop out fuse is the most commonly used short-circuit protection switch for branch lines of distribution lines and distribution transformers. It has the characteristics of economy, easy operation, and strong adaptability to outdoor environments. It is widely used in 33kV distribution lines and the primary side of distribution transformers for protection and equipment switching operations. It is installed on the branch line of a 33kV distribution line, which can reduce the range of power outages. Due to its obvious disconnection point, it has the function of an isolation switch, creating a safe working environment for the maintenance section lines and equipment, and increasing the sense of security of maintenance personnel. Installed on distribution transformers, it can serve as the main protection for distribution transformers, so it has become popular in distribution lines and distribution transformers.
Product Detail

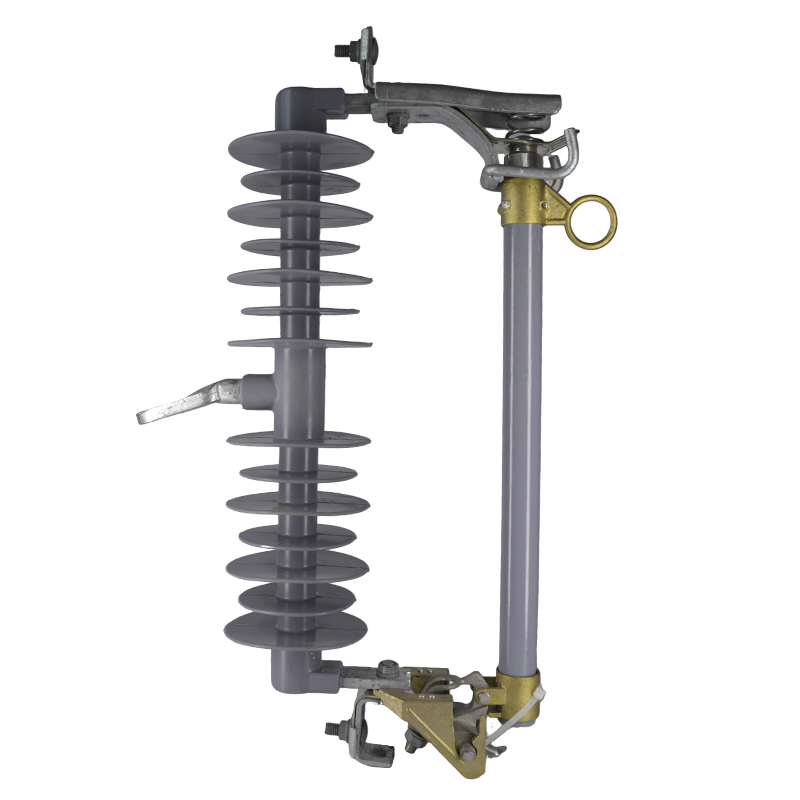

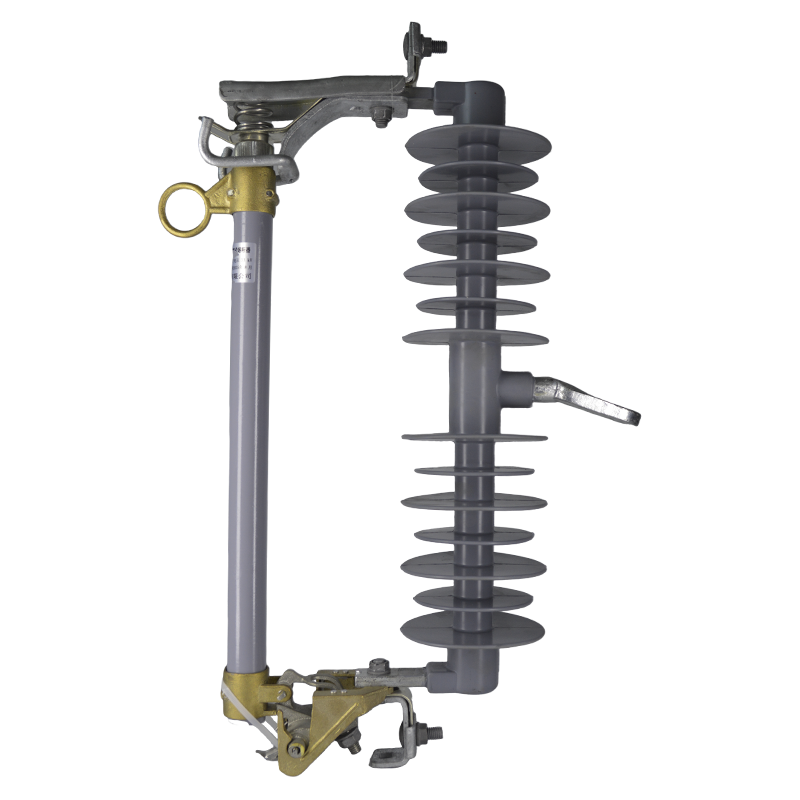

A 33kV drop out fuse cutout is an outdoor high-voltage protective device installed on overhead distribution lines or at the high-voltage side of distribution transformers. It provides reliable over-current, short-circuit, and overload protection, while enabling visible indication of fuse operation once a fault occurs.
Drop out fuse cutouts are widely used in utility networks and industrial installations for medium voltage distribution protection.
Our 33kV dropout fuse cutouts are available in:
33kV / 36kV rated voltage class
100A, 200A and 400A rated current options
Capable of both over-current protection and load switching functions.
Manufactured according to international standards such as:
IEC60282-2
ANSI C37.41 / IEEE standards
to ensure global compatibility and performance reliability.
Designed to operate in harsh outdoor environments with:
High mechanical strength
Excellent anti-pollution performance
Long-term operational stability
Perfect for use in distribution networks, substations, and renewable energy integrations.
Product Parameters
| Specifications | Rated voltage | Rated current | Current interruption | Impulse voltage | Power frequency withstand voltage |
| HRW12-33/100 | 33kV | 100A | 6.3kA | 170kV | 70kV |
| HRW12-33/200 | 33kV | 200A | 8kA | 170kV | 70kV |
Why Choose Our 33kV Drop Out Fuse Cutouts?
Able to interrupt high fault currents safely, reducing risk of electrical damage.
When a fault occurs, the fuse tube drops visibly, making it easy to identify failure points without complex testing.
Compliant with IEC & ANSI standards for global deployment and compatibility.
We offer custom porcelain or polymer insulators, loadbreak types, and fuse link options tailored to your project requirements.
If you are planning a power distribution project and require reliable 33kV dropout fuse cutouts with international compliance and competitive pricing, send your specifications or drawings now for a detailed proposal.
drop out fuse 33kv
drop out fuse 33kv
FAQ
Q
A
Can we print our trademark or company name on your product or package?
OEM and ODM orders are warmly welcomed, we have rich successful experience in OEM projects. In addition, our R&D team will provide you with professional suggestions.
Q
A
How does your company do in terms of quality control?
1) We choose all raw materials to be of high quality.
2) Professional and skilled workers pay attention to every detail in handling the production process.
3) The quality control department is specialized in quality inspection for each process.
Q
A
How can I get samples to test your quality?
We can provide free samples for you to test and check, just bear the freight cost.
Contact us to know more about our products, our professional team will serve you and customize it according to your requirements.
